Wiring Details

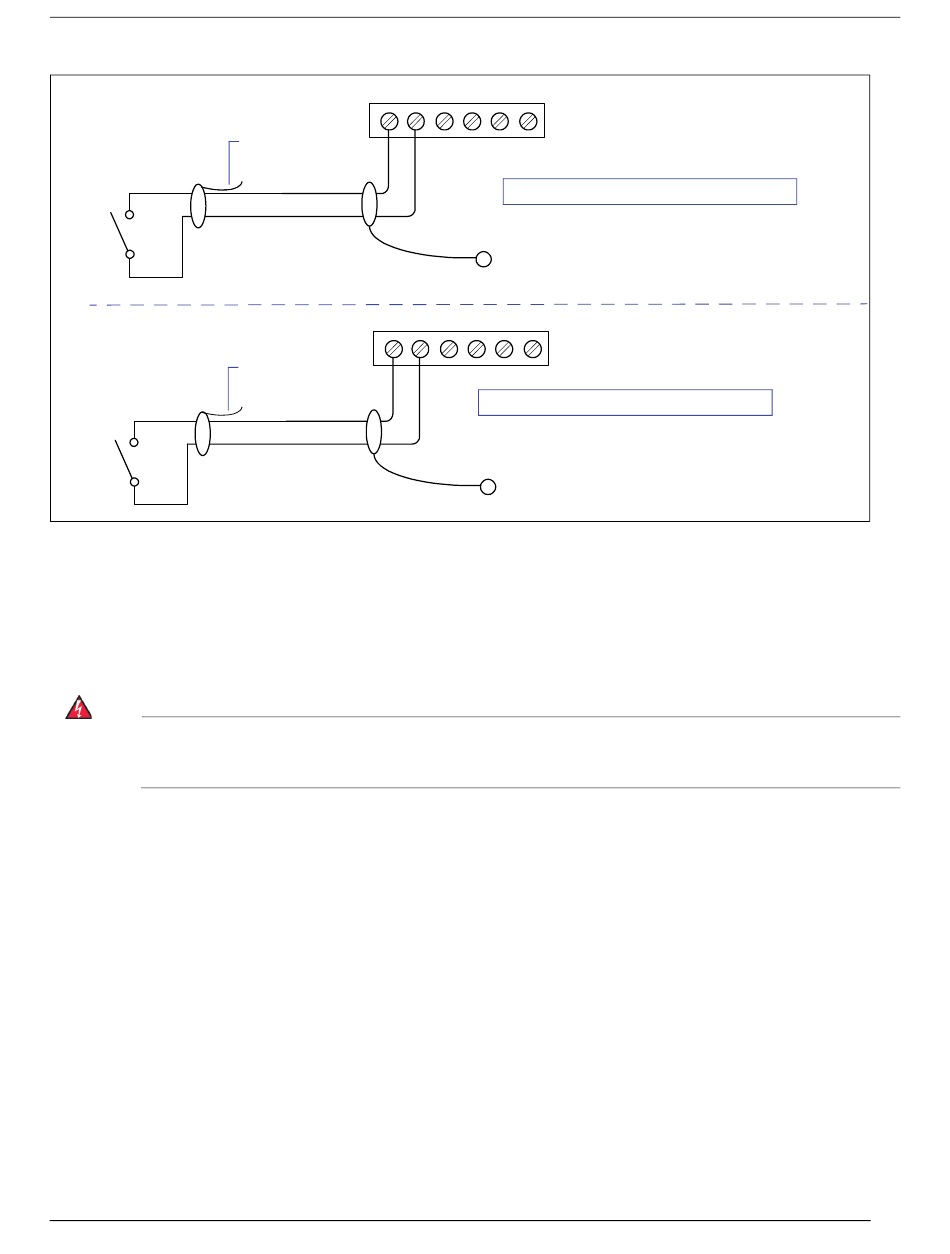

Figure 10 Binary input wiring.
Pulse
Range: Up to 20 Hz,
50% Duty Cycle
Minimum dwell time
> 25ms
Shielded, Twisted Cable,
61m (200 ft) maximum
Dry Contacts
Shielded, Twisted Cable,
61m (200 ft) maximum
Outputs
The IO-R-34 has ten (10) digital

Relay Outputs

Each relay output is rated at 24 Vac or Vdc at 0.5A. Relay outputs have MOV (metal oxide varistor) suppressors to
support inductive-type loads such as heavy-duty relay coils.
Relays are not rated for AC mains (line level) powered loads (instead, 24V maximum).
Warning
Never use a controller's power transformer to power I/O loads. Using the controller's
transformer introduces potentially damaging switching transients into the unit.
Use a RelayOutputWritable in the station for each output.
Remote IO-R-34 Module Mounting and Wiring Guide
U1 0V U2 U3 0V U4
Cut and tape shield
wire back at sensor.
Shield
U1 0V U2 U3 0V U4
Cut and tape shield
wire back at sensor.
Shield
relay outputs and eight (8) 0–10 volt
Use point: CounterInputPoint
Stud in enclosure
Use point: BooleanInputPoint
Stud in enclosure
analog outputs.
Figure 11 shows an example wiring diagram.
