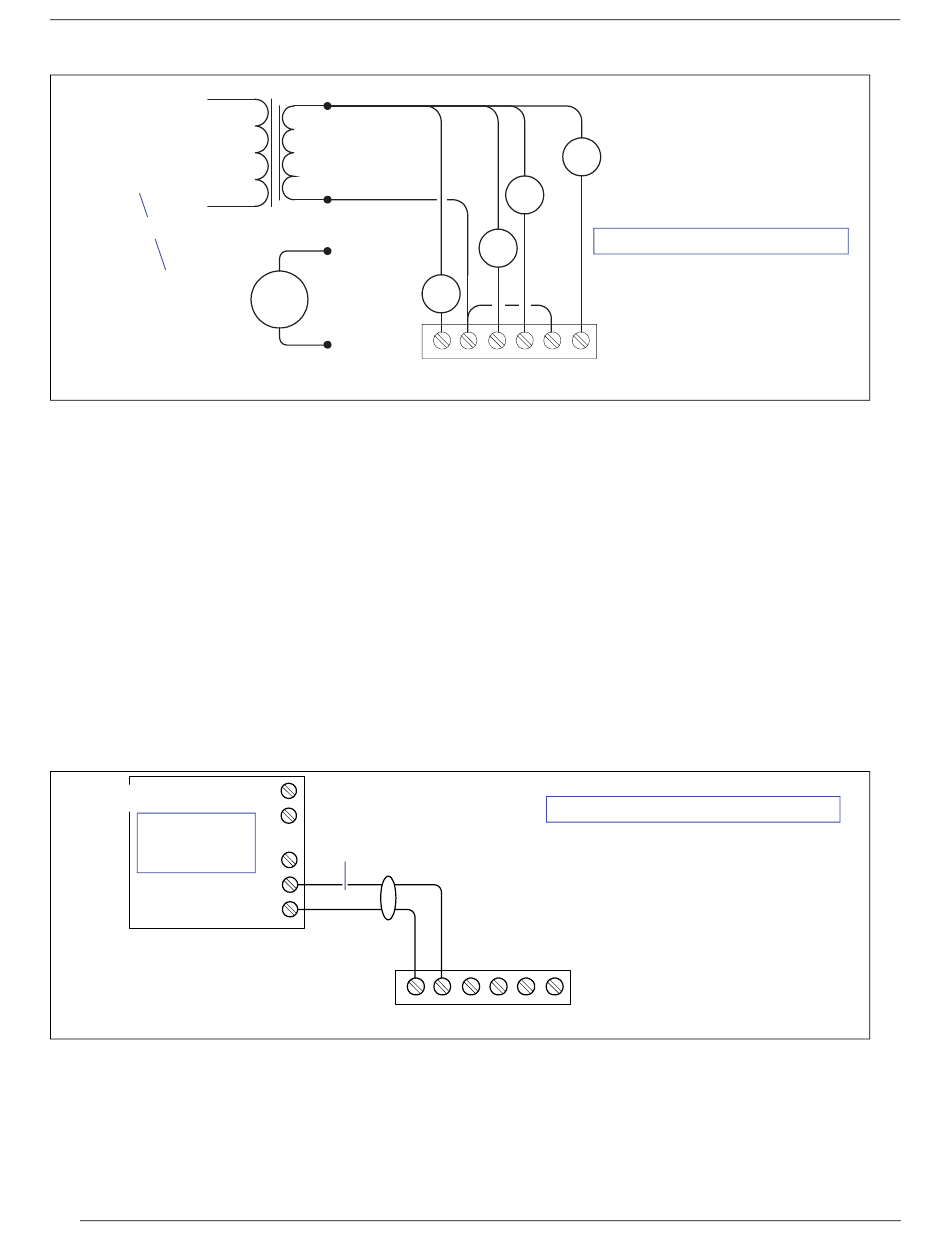

Figure 11 Relay output wiring diagram.
24Vac
AC
Transformer
Mains
(see previous
(Line)
Warning)
OR
24Vdc Power
Supply
Note that 15-position DO connector plug has 5 common terminals "C" (1–2, 3–4, 5–6, 7–8, 9–10), which are isolated
from each other. This can be useful when powering loads from different 24Vac sources.
A yellow LED status indicator for each relay (D1—D10) is located on the board
through the cover. Under normal operation, each digital status LED indicates activity as follows:
Off—relay open / no current flows.
•
• On—relay closed / load current flows.
Therefore, an On status indicates that the load is powered.

Analog Outputs

Analog outputs (AO) are referenced by the terminals labeled AOn and 0V (ground). Each AO can supply a maximum
of 4 mA over the entire 0 to 10Vdc range. The minimum input impedance of a device controlled by an AO must be
greater than 2500 ohms. Typical wiring for an AO is shown in
For each AO, use a VoltageOutputWritable in the station database.
Figure 12 Analog output wiring diagram.
0—10Vdc device
Input impedance
is greater than
2500 ohms
Common (–)
Input (+)
NrioModule (Software) Representation
In the EC-Net station interface to the EC-BOS and IO-R-34 module, the module's I/O is modeled in the station's
NrioNetwork (copied from the nrio palette), under a child Nrio34Module "device level" component. This
Nrio34Module has a default name of "io34_n".
14
24Vac
+
1
24Vdc
–
D1
Shielded, Twisted Cable,
61m (200 ft) maximum
AO1 0V AO2 AO3 0V AO4
4
Loads
3
Use point: RelayOutputWritable
2
D4
D2 D3
1C2
3C4
(Figure 3
Figure 12.
Use point: VoltageOutputWritable
Remote IO-R-34 Module Mounting and Wiring Guide
August 2, 2017
NrioModule (Software) Representation
on page 7), and also visible
