Wiring Details
Figure 11
Binary input wiring.
Pulse
Range: Up to 20 Hz,
50% Duty Cycle
Minimum dwell time
> 25ms
Shielded, Twisted Cable,
61m (200 ft) maximum
Dry Contacts
Shielded, Twisted Cable,
61m (200 ft) maximum
Outputs
A IO-R-16 module has four (4) digital
Relay Outputs
Each relay output is rated at 24 Vac or Vdc at 0.5A. Relay outputs have MOV (metal oxide varistor) suppressors to
support inductive-type loads such as heavy-duty relay coils.
Relays are not rated for AC mains (line level) powered loads (instead, 24V maximum).
Warning
Use an external 24V transformer or a 24Vdc power supply to power loads.
Use a RelayOutputWritable in the station for each output.

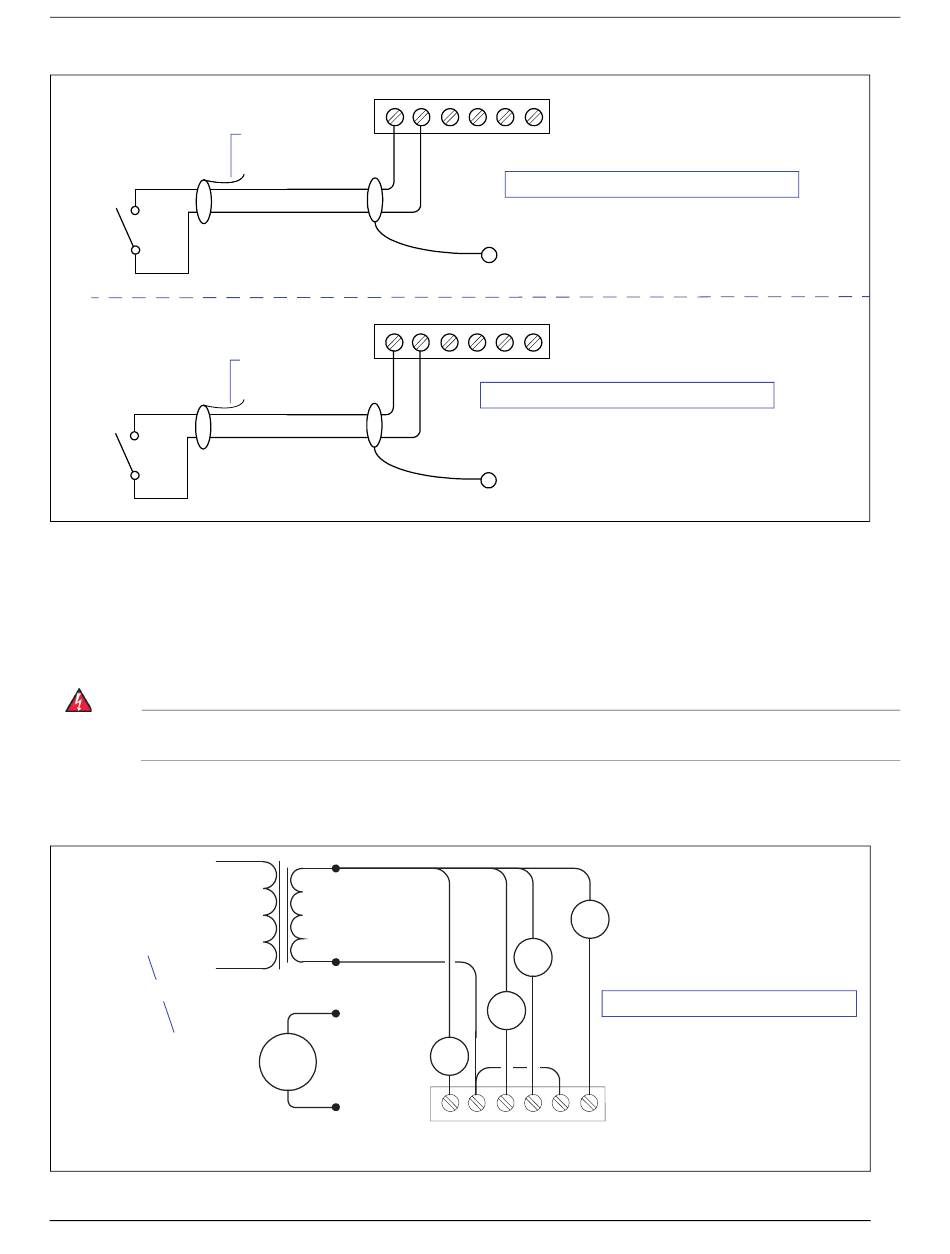

Figure 12
Relay output wiring diagram.
24Vac
AC
Transformer
Mains
(see previous
(Line)
Warning)
OR
24Vdc Power
Supply
Remote IO-R-16 Module Mounting and Wiring Guide
U1 0V U2 U3 0V U4
Cut and tape shield
wire back at sensor.
Shield
U1 0V U2 U3 0V U4
Cut and tape shield
wire back at sensor.
Shield
relay outputs
24Vac
+
24Vdc
–
Use point: CounterInputPoint
Stud in enclosure
Use point: BooleanInputPoint
Stud in enclosure
and four (4) 0–10 volt
analog
Figure 12
on page 15 shows an example wiring diagram.
4
3
Use point: RelayOutputWritable
2
1
D4
D1
D2 D3
1C2
3C4
August 2, 2017
outputs.
Loads
Outputs
15
