Texmate Leopard Series Manual

Bargraph indicator
Hide thumbs Also See for Leopard Series:

Advertisement

Quick Links

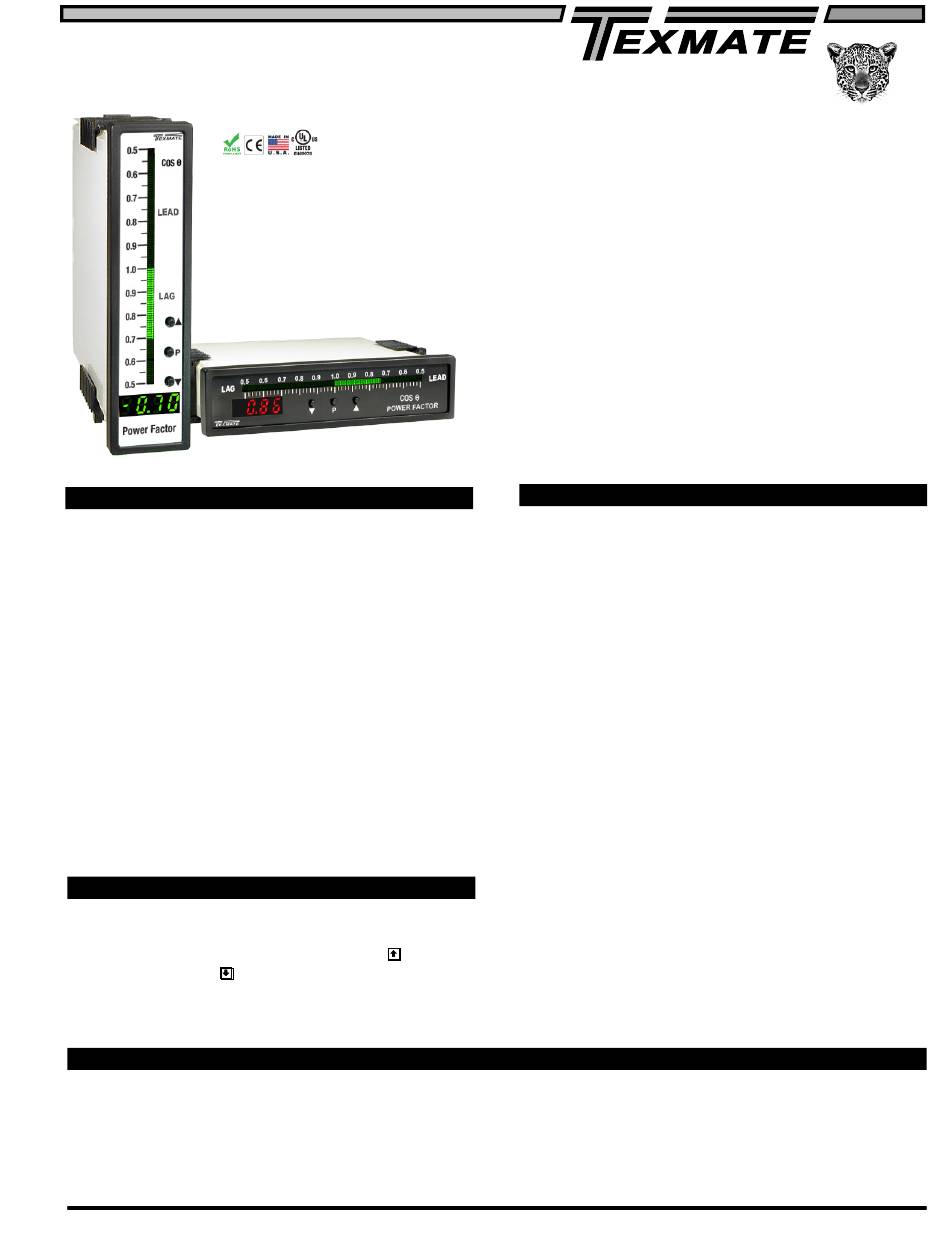

FL-B101D40PF
Power Factor Bargraph Indicator

General Features

Choice of DC volts or DC current (header selectable )
Mono color (red or green), 101 segment high brightness bargraph.
Vertical or optional horizontal format.
Red 4-digit LED display with a range of -0.50, 1, +0.50
Optional green digital display.
Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-300 V DC (PS1) or 18-48 V AC / 10-72 V DC
(PS2).
24 V DC excitation is available to power external 4/20mA
transmitters.
Provision to connect an external programming lockout switch.
Provision for external DIM switch to reduce the brightest
display setting by 50%.
Optional NEMA-4 IP65, Clear dust & Splash proof front cover.
Automatic intelligent averaging, smooths noisy signals while
providing a fast display response to real level changes.
UL Listed

Software Features

• Bargraph center zero function.
• Digital display blanking.
• Four-level brightness control accessed by the
and adjusted by the
button.
