General Features
Optional isolated 16 bit analog output. User or factory
scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across
any desired digital span from ± one count to the full scale
range of – 1999 to 9999 (12000 counts)�
Auto-sensing AC/DC power supply� For voltages between
85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72
V DC (PS2)�
24 V DC excitation is available to power external transmit-
ters� (order IP02)
Standard 0.56" red or optional green or super bright red
4-digit LED with display range –1999 to 9999 (12000
counts)�
Three annunciator LEDs provide front panel alarm status
indication for up to three setpoints�
One 9 Amp Form C and one 4 Amp Form A relays, or up to
three 4 Amp Form A relays are available�
Automatic intelligent averaging smooths noisy signals,
while providing a fast display response to real input signal
changes�
Software Features
• Three-button programming from the front panel
(UP, DOWN and PROGRAM buttons).
• Front panel selectable four-level brightness control of digital dis-
play�
• Three programmable setpoints�
• Relay activation can be selected to occur above (HI) or below
(LO) each setpoint�
• Hysteresis setting for all three setpoints. Delay on make and
delay on break for SP1 and SP2�
• Peak and Valley. View and Reset.
Case Dimensions � � � � � � � � � � � � � � � 10
Component Layout � � � � � � � � � � � � � � � 8
Connector Pinouts � � � � � � � � � � � � � � � 7
Controls and Indicators � � � � � � � � � � � 2
Decimal Point & Brightness Selection� � 5

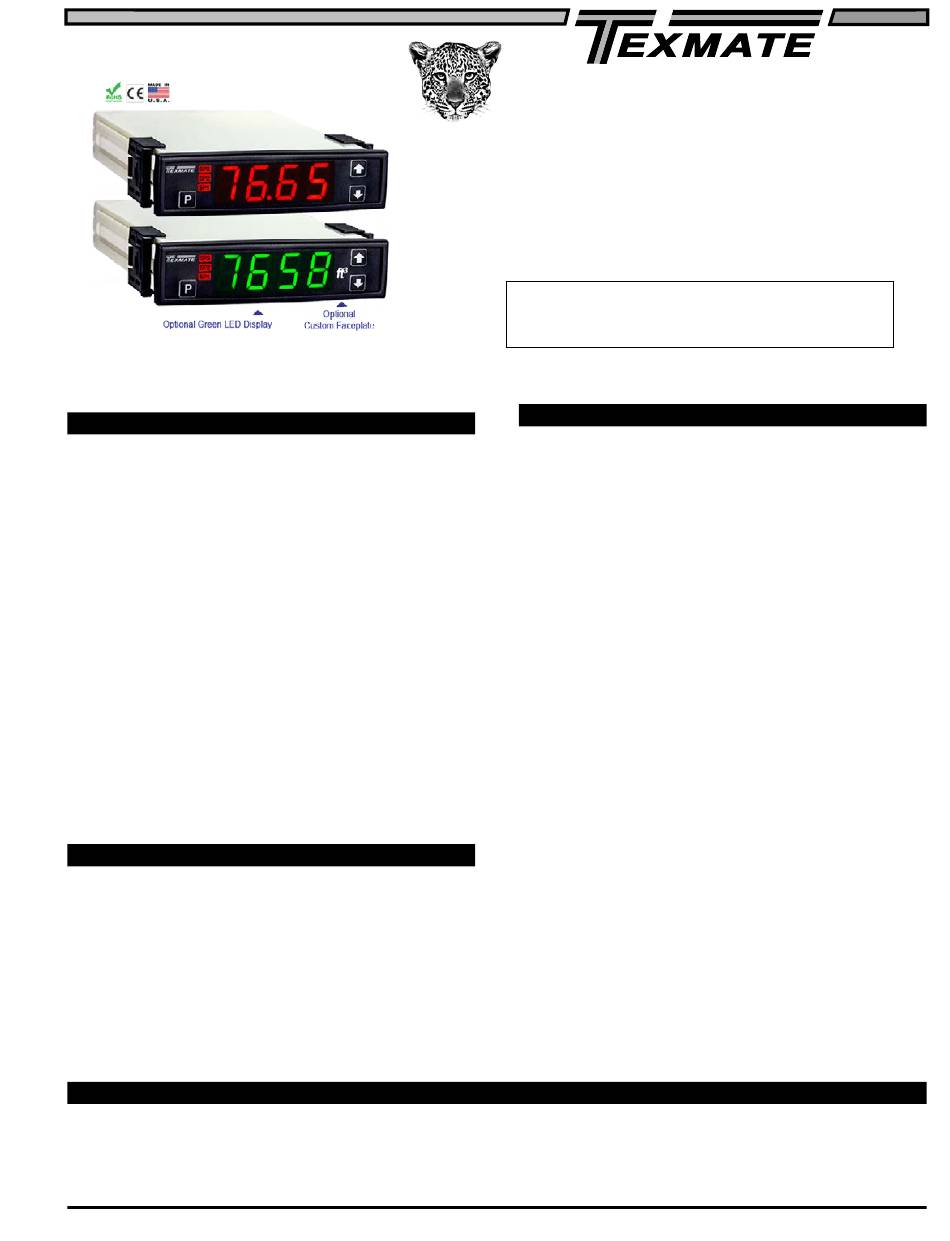

BL-40PSF-PROCESS Manual (d0074)
LEOPARD FAMILY
Isolated 4-20 mA output retransmission capability
Digital Rescaling� � � � � � � � � � � � � � � � � 4
Digital Rescaling Procedure � � � � � � � � 4
Digital Span Selection for Analog
Range Output � � � � � � � � � � � � � � � � � � � 5
General Features � � � � � � � � � � � � � � � � 1
Glossary of Programming Symbols � � 2
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
BL-40PSF-PROCESS
A powerful smart 4-20mA/0-10V
process meter relay with
for measurement and control applications
Built-in Programmable Scale Factor
No Input required to calibrate
Specifications
Input Specs: ��������������Series connection to 4-20mA process
A/D Converter: ����������14 bit single slope
Accuracy: ������������������±(0�05% of reading + 2 counts)
Temp. Coeff�: �������������100 ppm/°C (Typical)
Warm up time: �����������2 minutes
Conversion Rate: ������5 conversions per second (Typical)
Display: ����������������������4 digit 0.56" Red LED display (std)
Polarity: ���������������������Assumed positive� Displays – negative
Decimal Selection: ����Front panel button selectable, X•X•X•X•
Positive Overrange: ��Top segments of digital display flash
Negative Overrange: Bottom segments of digital display flash
Relay Output: ������������Three 4 Amp Form A relays or one 9 Amp
Analog Output: ���������Isolated 16 bit user scalable mA or V
OIC (mA out) �����������4-20 mA @ 0 to 500٠max loop resistance
OIV (volts out) ���������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: �����������AC/DC Auto sensing wide range supply
PS1 (std) ����������������85-265 VAC / 95-300 VDC @ 2.5W max 3.2W
PS2 �������������������������15-48 VAC / 10-72 VDC @ 2.5W max 3.2W
Operating Temp�: ������0 to 50 °C
Storage Temp: �����������–20 °C to 70 °C�
Relative Humidity: ����95% (non condensing)
Case Dimensions: ����1/16 DIN Bezel 96x24mm
Weight: �����������������������7 oz, 9 oz when packed
Index
Input Module Component Glossary � � � 9
Lens Cover � � � � � � � � � � � � � � � � � � � � 11
Metal Surround Case � � � � � � � � � � � � 11
Ordering Information � � � � � � � � � � � � 12
Pin Descriptions � � � � � � � � � � � � � � � � � 7
Setpoint & Relay Configuration Mode� � � � �6
loop or Single ended 0-10V DC�
Green or Super Bright Red are optional�
Range -1999 to 9999 counts�
Form C, and one 4 Amp Form A relay�
Depth behind bezel 122.2mm (4.83")
Plus 12�7mm (0�5") for Right-angled
connectors
Software Features � � � � � � � � � � � � � � � 1
Software Logic Tree � � � � � � � � � � � � � � 3
Specifications � � � � � � � � � � � � � � � � � � � 1
Two Point Analog Output Range
Setting and Calibration � � � � � � � � � � � � 5
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BL-40PSF-PROCESS and is the answer not in the manual?

Questions and answers

Summary of Contents for Texmate BL-40PSF-PROCESS

  • Page 1 Setting and Calibration � � � � � � � � � � � � 5 Glossary of Programming Symbols � � 2 Setpoint & Relay Configuration Mode� � � � �6 BL-40PSF-PROCESS Manual (d0074) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 1...
  • Page 2 When a number is shown it indicates omitted or bypassed when the related hard- the initial factory default setting or a specific ware is not present “example number”. Page 2 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com BL-40PSF-PROCESS Manual (d0074)
  • Page 3 Software Logic Tree The BL-40PSF-PROCESS is an intelligent meter with a hier- After the meter has been powered up, the archical software structure designed for easy programming four digits light up for three seconds and and operation, as shown below in the software logic tree�...
  • Page 4 Digital Rescaling The BL-40PSF-PROCESS meter may be rescaled without applying an external signal by changing the Offset and Scale factor. Offset is the reading that the meter will display for a zero input� The Offset may be set to any value from -1999 to +9999� The default value of the Offset is 000 Scale factor is the gain of the meter�...
  • Page 5 16 bit D to A to increment in stair case steps� BL-40PSF-PROCESS Manual (d0074) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 5...
  • Page 6 The meter exits the setpoint mode and returns to the operational display. SP1 and SP2 STEP N Relays The Setpoint Relay programming mode is now complete. Activation [rLYS] [LhL-] [hLh-] [hhh-] Page 6 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com BL-40PSF-PROCESS Manual (d0074)
  • Page 7 Do Not connect live wires to screw terminal plugs, and do not insert, remove or handle screw terminal plugs with live wires connected. BL-40PSF-PROCESS Manual (d0074) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 7...
  • Page 8 Program Lockout Header This heder disable any To access the header, you must remove meter from case� programing function� Please see "Connector Pinouts" on page 7 for the instruction. Page 8 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com BL-40PSF-PROCESS Manual (d0074)
  • Page 9 15 Turn Potentiometer 15 Turn Potentiometer 24V DC Output Header On some modules this header enables a 24V DC 25mA (max) Excitation/Auxiliary output to be connected to Pin 2� BL-40PSF-PROCESS Manual (d0074) Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Page 9...
  • Page 10 1/16 DIN Connector Slide Clips can be ordered and doubled up Catch or 4 up in 1/4 DIN (96x96mm). cases P/N:(OP-N4/96x48) Sockets one behind the other. P/N:(75-DMT96X24) Page 10 Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com BL-40PSF-PROCESS Manual (d0074)
  • Page 11 However, since normal use and service for a period of one year from date of shipment. Texmate’s obligations we have no control over the use of our products once they are shipped, NO WARRANTY...
