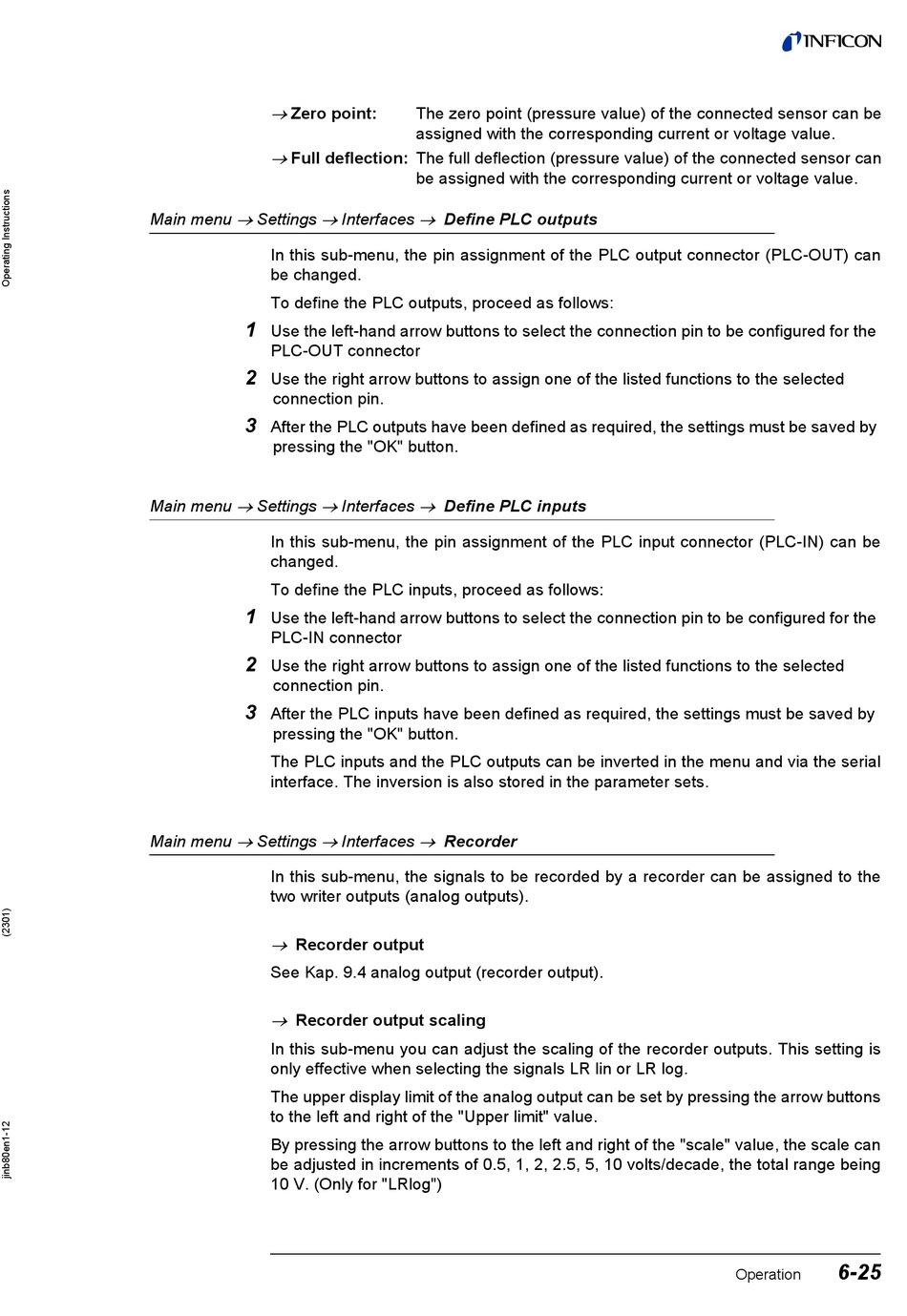

Zero point:

Full deflection: The full deflection (pressure value) of the connected sensor can

Main menu Settings
In this sub-menu, the pin assignment of the PLC output connector (PLC-OUT) can
be changed.
To define the PLC outputs, proceed as follows:
1
Use the left-hand arrow buttons to select the connection pin to be configured for the
PLC-OUT connector
2
Use the right arrow buttons to assign one of the listed functions to the selected
connection pin.
3
After the PLC outputs have been defined as required, the settings must be saved by
pressing the "OK" button.

Main menu Settings
In this sub-menu, the pin assignment of the PLC input connector (PLC-IN) can be
changed.
To define the PLC inputs, proceed as follows:
1
Use the left-hand arrow buttons to select the connection pin to be configured for the
PLC-IN connector
2
Use the right arrow buttons to assign one of the listed functions to the selected
connection pin.
3
After the PLC inputs have been defined as required, the settings must be saved by
pressing the "OK" button.
The PLC inputs and the PLC outputs can be inverted in the menu and via the serial
interface. The inversion is also stored in the parameter sets.

Main menu Settings
In this sub-menu, the signals to be recorded by a recorder can be assigned to the
two writer outputs (analog outputs).

Recorder output
See Kap. 9.4 analog output (recorder output).

Recorder output scaling
In this sub-menu you can adjust the scaling of the recorder outputs. This setting is
only effective when selecting the signals LR lin or LR log.
The upper display limit of the analog output can be set by pressing the arrow buttons
to the left and right of the "Upper limit" value.
By pressing the arrow buttons to the left and right of the "scale" value, the scale can
be adjusted in increments of 0.5, 1, 2, 2.5, 5, 10 volts/decade, the total range being
10 V. (Only for "LRlog")
The zero point (pressure value) of the connected sensor can be
assigned with the corresponding current or voltage value.
be assigned with the corresponding current or voltage value.
 
Interfaces Define PLC outputs
 
Interfaces Define PLC inputs
 
Interfaces Recorder
6-25
Operation
