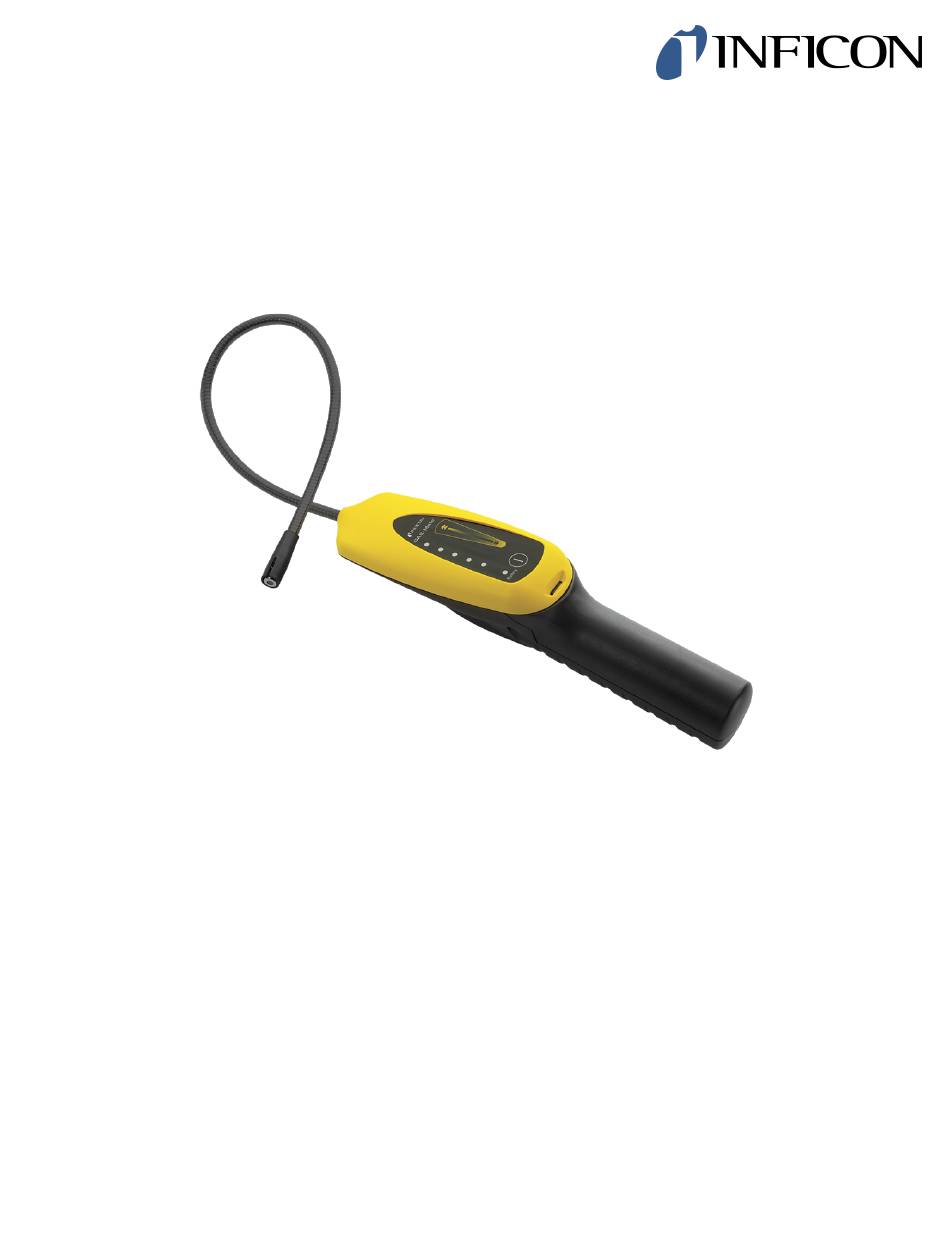

- Page 1 Operating Manual ® GAS-Mate Combustible Gas Leak Detector 074-529-P1-D...
- Page 2 INFICON 2 Technology Place East Syracuse, NY 13057...
-
Page 3: Table Of Contents
Introduction ............................ 5 Specifications ........................... 6 Product Warnings .......................... 7 How to Install the Alkaline Batteries .................... 8 Using GAS-Mate .......................... 9 How to Change the Sensor.................... 10 Cleaning and Storage ...................... 10 Troubleshooting .......................... 11 Replacement Parts and Accessories ................... 11 Return Authorization Procedure.................... -
Page 4: Overview
This symbol is used to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the instrument. GAS-Mate is Intrinsically Safe for Class I, Division 1, Groups A-D, T4 and rated II 3G Ex nA nL IIC T4 X as per Listing Number E112145 by MET Laboratories, Inc. -
Page 5: Introduction
INFICON Introduction | 2 2 Introduction GAS-Mate is an intrinsically safe instrument designed to detect leaks of a variety of combustible gases and flammable refrigerants. It can be used for many leak testing applications including, but not limited to: • Combustion appliances •... -
Page 6: Specifications
75 seconds Dynamic detection limit in contaminated 30 g/yr environment Calibration frequency: Check annually with calibrated leak standard *As no 50g/yr leak standard was available during testing, a 35 g/yr leak was substituted. 6 / 13 074-529-P1-D GAS-Mate Operating Manual... -
Page 7: Product Warnings
GAS-Mate detects leaks as described below, but may not indicate when a hazardous atmosphere is present due to its Auto Zeroing function. Lack of a reading by GAS-Mate should not be taken as an indication that the atmosphere is totally safe. -
Page 8: How To Install The Alkaline Batteries
Dispose of the depleted alkaline batteries according to the applicable state and local regulations. In the absence of such regulations, recycle and/or dispose of the batteries through a voluntary waste recycling program. 8 / 13 074-529-P1-D GAS-Mate Operating Manual... -
Page 9: Using Gas-Mate
ð GAS-Mate defaults to the maximum sensitivity on start-up. It is recommended to use this setting for most applications. 4 Carry GAS-Mate into the area of the suspected leak. An alarm at this time indicates a build-up of combustible gas in the general area. -
Page 10: How To Change The Sensor
INFICON 6.1 How to Change the Sensor The sensor comes installed in the GAS-Mate probe tip. You only need to insert or remove the sensor when it is time to replace it. If all leak indicators flash and a steady alarm occurs, the sensor is bad or not installed properly. -
Page 11: Troubleshooting
WARNING Substitution of components may impair intrinsic safety. Except for the batteries and the sensor, the internal parts of GAS-Mate are not user serviceable. If you experience a problem with GAS-Mate, see the Troubleshooting Table below to determine how to remedy the problem. If you cannot remedy the problem, take GAS-Mate to your wholesaler for evaluation. -
Page 12: Return Authorization Procedure
Merchantability or of Fitness for a particular purpose or otherwise. All such other warranties are expressly disclaimed. INFICON shall have no liability in excess of the price paid to INFICON for the instrument plus return transportation charges prepaid. INFICON shall have no liability for any incidental or consequential damages. - Page 13 Due to our continuing program of product improvements, specifications are subject to change without notice. All trademarks are the property of their respective owners. TEK-Check and Wey-TEK are trademarks of INFICON. All other trademarks are the property of their respective owners. 074-529-P1-D...
