80 Clock controller maintenance

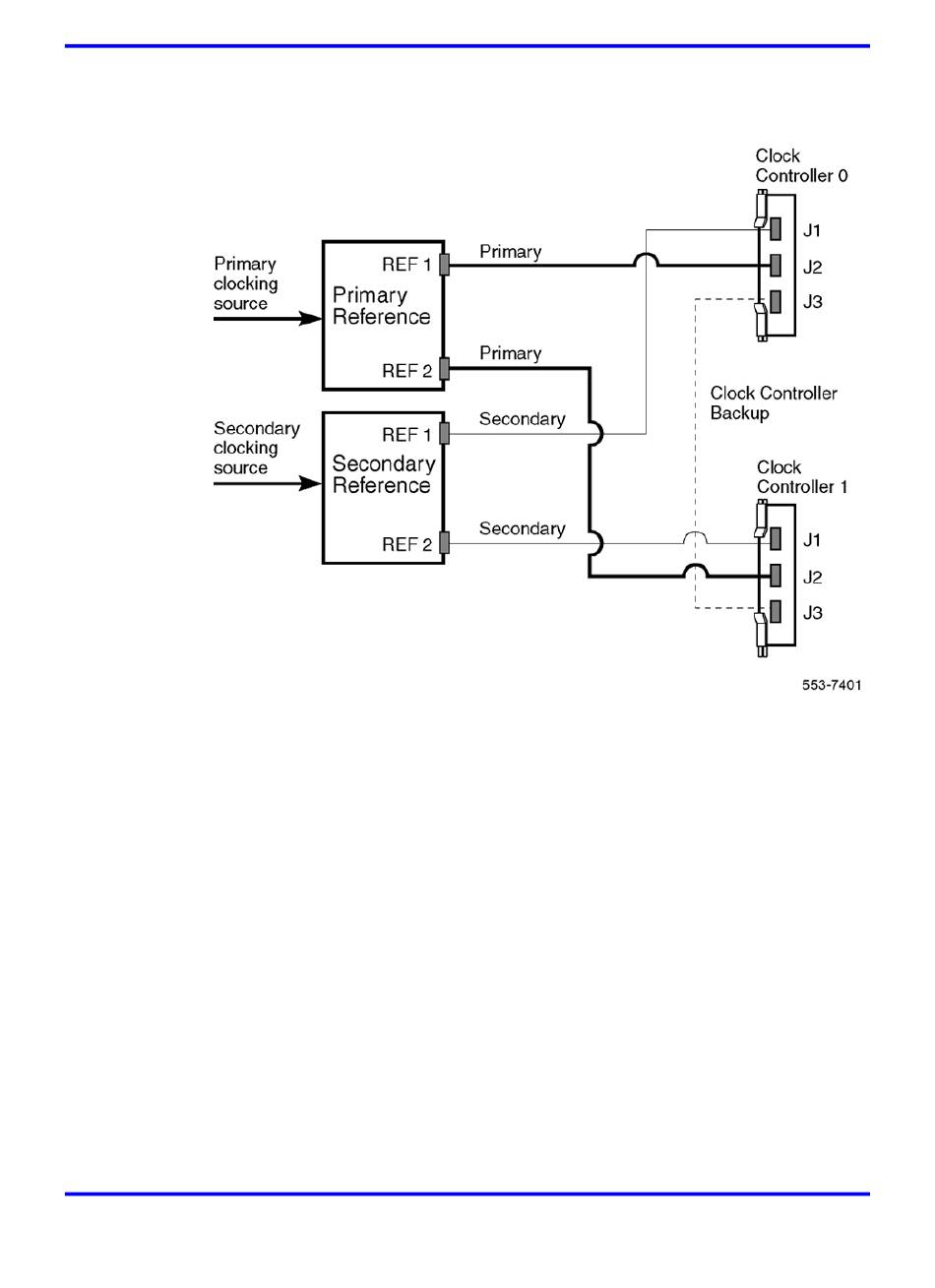

Figure 14
Clock controller primary and secondary tracking
Free run (non-tracking) mode
The clock synchronization for a PRI loop can operate in free-run mode if
•
•
•
Reference clock errors
System software checks every 0-15 minutes (programmable) to see if a
clock-controller or reference-clock error has occurred.
In tracking mode, at any one time, there is one active clock controller
which is tracking on one reference clock. If a clock-controller error is
detected, the system switches to the backup clock controller, without
affecting which reference clock is being tracked.
Copyright © 2003-2009 Nortel Networks
.
the loop is not defined as the primary or secondary clock reference
the primary and secondary references are disabled
the primary and secondary references are in local alarm
