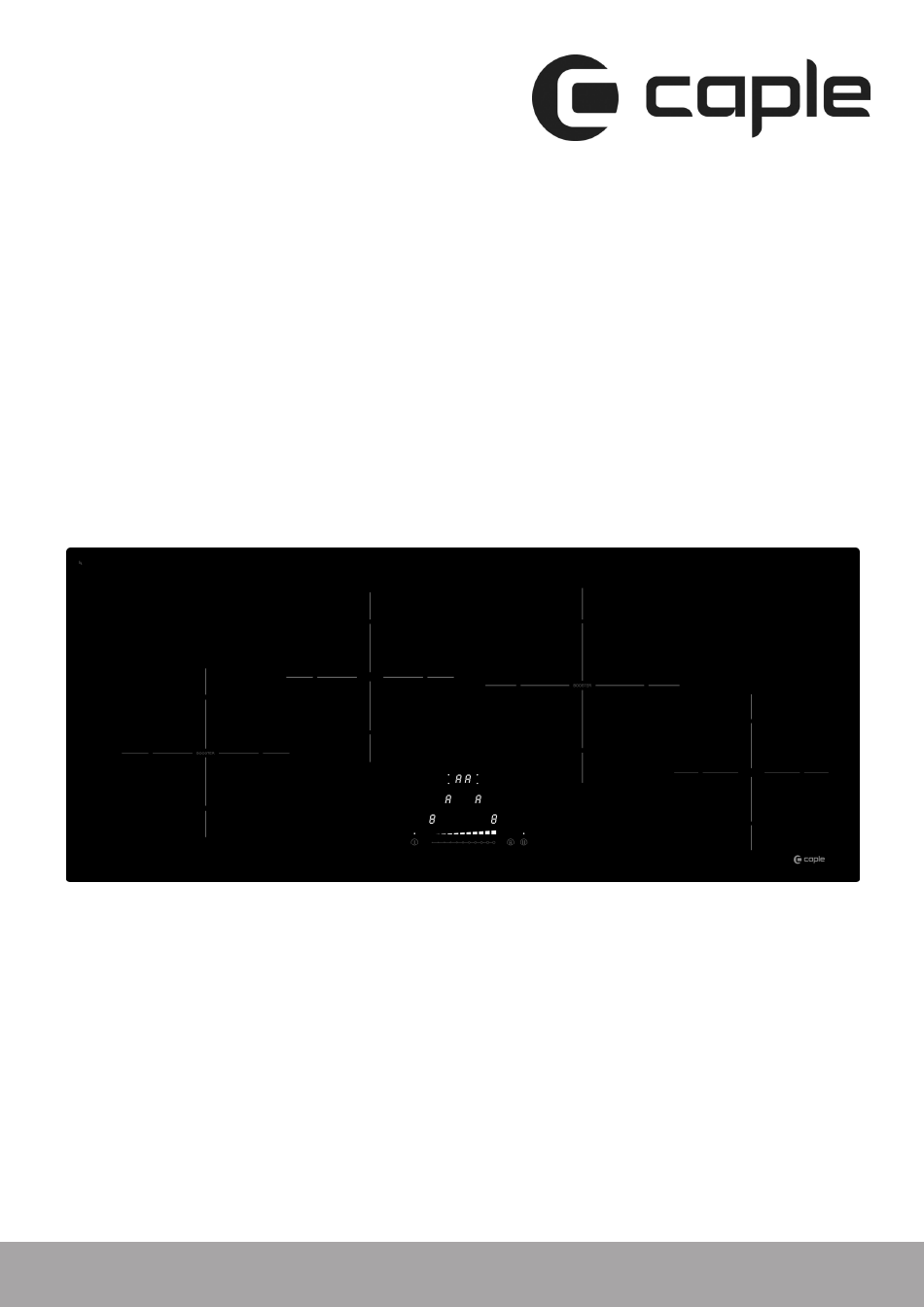

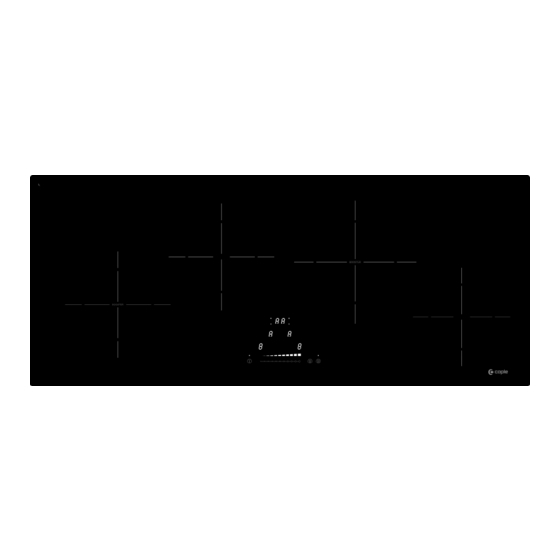

- Page 1 Instruction manual for induction hob Model code: C876I Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk www.caple.co.uk...
-
Page 2: Table Of Contents
SUMMARY SAFETY ............................3 ......................3 RECAUTIONS BEFORE USING ........................3 SING THE APPLIANCE ................4 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ................5 RECAUTIONS IN CASE OF APPLIANCE FAILURE ........................5 THER PROTECTIONS DESCRIPTION OF THE APPLIANCE ................... 6 ....................... -
Page 3: Safety
SAFETY Precautions before using • Unpack the hob and all associated components, taking care not to lose or mishandle any parts. • The appliance must be installed by a suitably qualified professional and connected to the electricity supply by a qualified electrician who will comply with the local regulations. -
Page 4: Recautions Not To Damage The Appliance
• Magnetic objects (such as credit cards, portable electronic devices; etc.) must not be placed near the appliance during use. • Metal objects such as knives, forks, lids etc. must not be placed on the hob as they may become hot. •... -
Page 5: Recautions In Case Of Appliance Failure
• WARNING: If the ceramic glass is broken or cracked, don’t use the appliance and turn off the electricity supply to avoid the possibility of electric shock. Contact Caple service immediately. • See the troubleshooting section in this manual. Other protections •... -
Page 6: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical characteristics Type C876I Total power 7100 W Energy consumption for the hob EC 176.9 Wh/kg Front left heating zone Ø 190 mm Minimum detection Ø 90 mm Nominal power* 1400 W Booster power* 2000 W... -
Page 7: Control Panel
Control panel Control light timer Timer display Power display Control light cooking zone Keep warm key Control light Control light Pause/Recall on/off Pause/Recall Power selection zone “SLIDER” and Booster On/Off key timer setting zone USE OF THE APPLIANCE Display Display Designation Function Zero... -
Page 8: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface. Induction principle An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. -
Page 9: An Detection
Starting-up • Start up / switch off the hob: Action Control panel Display To start press key [ [ 0 ] are blinking To stop press key [ nothing or [ H ] • Start up / switch off a heating zone: Action Control panel Display... - Page 10 • Power management: The hole cooking hob is equipped by a maximum of power. When the booster function is activated, and not to exceed the maximum power, the electronic system orders to reduce automatically the power level of another heating zone. The display is blinking on [ 9 ] during a few seconds and then shows the maximum of power allowed : Heating zone selected The other heating zone:...
-
Page 11: Utomatic Cooking
Automatic cooking All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the pre- selected level. • Start-up : Action Control panel Display... -
Page 12: Eep Warm " Function
Bridge function This function allows you to combine the 2 cooking zones on the left and use at the same time with the same features as a single cooking zone. Booster function isn’t allowed. Action Control panel Display Activate the hob Press display [ [ 0 ] or [ H ] on the 4 displays... -
Page 13: Cooking Advices
COOKING ADVICES Pan quality Adapted materials : steel, enameled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible with induction hobs. To check if pans are compatible: •... -
Page 14: Xamples Of Cooking Power Setting
• There is no pan on the cooking zone. • The pan is not compatible with induction. • The bottom diameter of the pan is too small. The control panel displays [ E ] : • Contact Caple service. T - 0117 938 7420 • E - service@caple.co.uk... - Page 15 The control panel displays [ L ] : • Refer to the chapter control panel locking page. One or all cooking zone cut-off : • The safety system functioned. • You forgot to cut-off the cooking zone for a long time. •...
-
Page 16: Environmental Protection
Please use the same pot for the whole procedure. Never put several pots together on the zones during the setup-process. • If [ E 4 ] displaying remains, please call Caple service. The control panel displays [ ] or [ Er03 ] : •... -
Page 17: Installation Instructions
(3). Fitting - installing: • The cut out sizes are: Reference Cut-size C876I 870 x 350 mm • Ensure that there is a distance of 50 mm between the hob and the wall or sides. •... -
Page 18: Cut Out And Flush Mounting
CUT-OUT AND FLUSH MOUNTING C876I Glass Cut size Rear Side Radius Cut size Deep... -
Page 19: Electrical Connection
ELECTRICAL CONNECTION • The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously. • Protection against the parts under tension must be ensured after the building-in. •... - Page 20 CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC). Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk...
