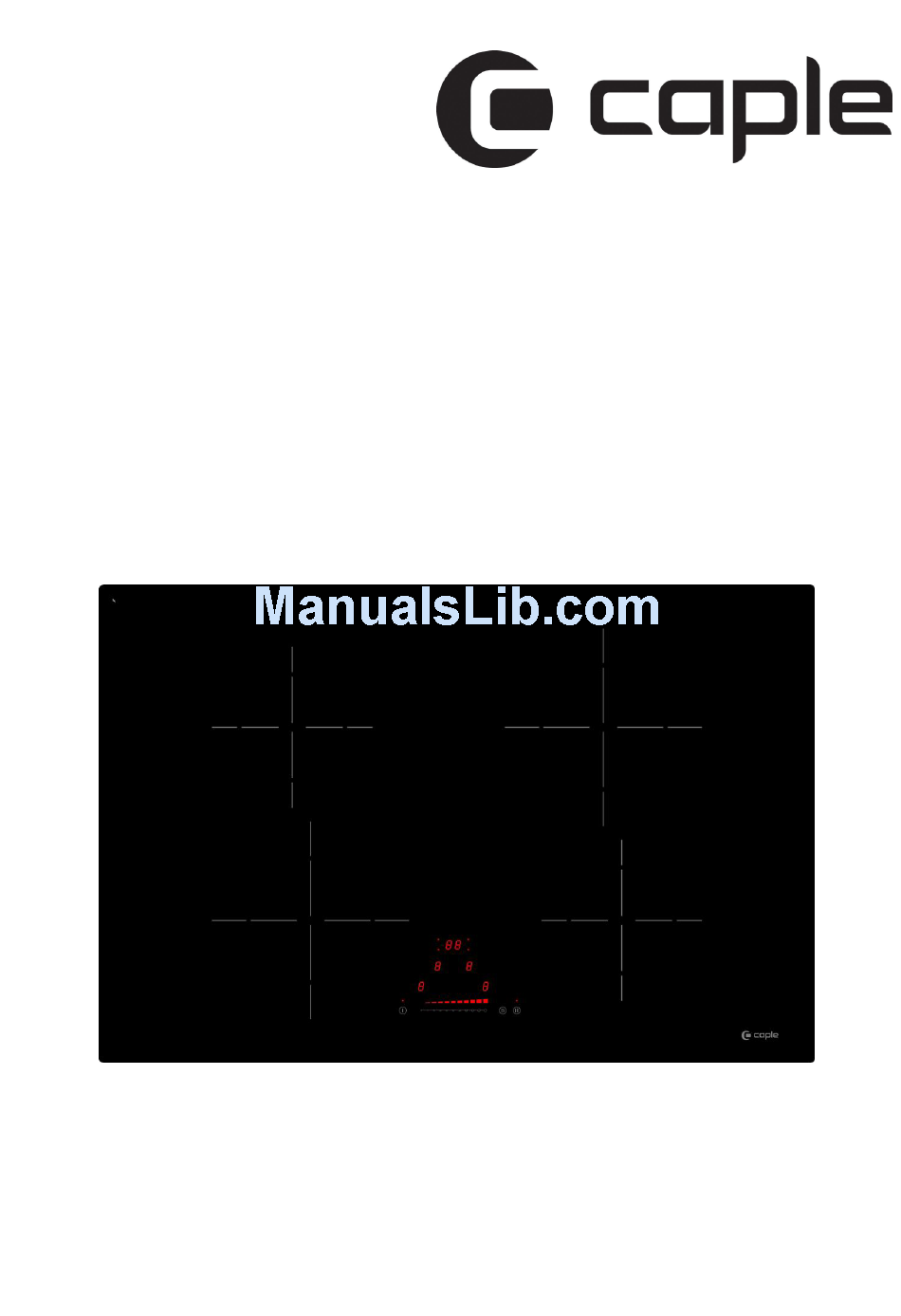

- Page 1 Instruction manual for induction hob Model code: C864I Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
SUMMARY SAFETY ............................3 ...................... 3 RECAUTIONS BEFORE USING ........................ 3 SING THE APPLIANCE ................4 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ................5 RECAUTIONS IN CASE OF APPLIANCE FAILURE ......................... 6 THER PRECAUTIONS DESCRIPTION OF THE APPLIANCE ..................7 ..................... -
Page 3: Safety
SAFETY Precautions before use • Unpack the hob and all associated components, taking care not to lose or mishandle any parts. • The appliance must be installed by a suitably qualified professional and connected to the electricity supply by a qualified electrician who will comply with the local regulations. -
Page 4: Sing The Appliance
Using the appliance • Always switch cooking zones off after use. • Take particular care when cooking with oils or fats that may ignite. • Cooking pans, utensils and the hob itself become hot during use. Caution, risk of injury to people and pets both during and after use. -
Page 5: Recautions Not To Damage The Appliance
• Take care not to strike the edges of the hob with saucepans. • Ensure that ventilation remains free from obstructions and complies with instructions specified by Caple. • Do not place empty saucepans on the hob. • Sugar, synthetic materials or aluminium foil must not come into contact with the heating zones. -
Page 6: Recautions In Case Of Appliance Failure
THE USE OF INCORRECT COOKWARE OR ANY INDUCTION ADAPTOR PLATE DESIGNED FOR NON-MAGNETIC COOKWARE WILL INVALIDATE THE GUARANTEE. CAPLE CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE TO THE HOB AND/OR ITS ENVIRONMENT AS A RESULT OF SUCH USE. -
Page 7: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical characteristics Type C864I Total power 7400 W Energy consumption for the hob EC 171.8 Wh/kg Front left heating zone 215x215 mm Minimum detection Ø 110 mm Nominal power* 1850 W Booster power* 2100 W Standardised cookware category** Energy consumption EC 170.7 Wh/kg... -
Page 8: Control Panel
Control panel Control light timer Timer display Control light Power display cooking zone Control light Control light Stop & Go on/off Power selection zone “SLIDER” Booster key Pause On/off key and timer setting zone USE OF THE APPLIANCE Display Display Designation Function Zero... -
Page 9: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent as this may cause blue-tinted colour on the glass surface. Induction principle An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. -
Page 10: Starting-Up
Starting-up You must first switching on the hob, then the heating zone: Start up / switch off the hob: Action Control panel Display [ 0 ] are Flashing To start press key [ Nothing or [ H ] To stop press key [ ... -
Page 11: Booster Function
Booster function ] applies a boost of power to the selected heating zone. The booster function [ If this function is activated the heating zones work for 5 minutes with ultra high power. The booster is foreseen for example to rapidly heat up big quantities of water. ... -
Page 12: Utomatic Cooking
Egg timer function : Example for 29 minutes : Action Control panel Display Activate the hob press display [ zone control lights are on Select« Timer » press display [ CL ] [ 00 ] [ 0 fixed ] [ 9 flashing ] slide on the “SLIDER“... -
Page 13: Recall Function
Recall Function After switching off the hob ( ), it is possible to recall the last settings. cooking stages of all cooking zones ( power ) minutes and seconds of programmed cooking zone-related timers Heat up function The recall procedure is following: ... -
Page 14: Cooking Advices
COOKING ADVICE Pan quality Suitable materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Non suitable materials: aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible with induction. To check if pans are compatible: •... -
Page 15: Examples Of Cooking Power Setting
Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water... -
Page 16: Troubleshotting
TROUBLESHOOTING Noise * Humming sounds are normal with induction hobs * Intermittent humming sounds are also normal. They indicate that the cooktop works in intermittent stages in order to reach lower temperatures. * The Sound of the fan may also be heard when cooking for a long time and/or with higher temperatures. - Page 17 The air inlet of the ventilator is obstructed, release it. The control panel displays [ U400 ] : The hob is not connected to the network. Check the connection and reconnect the hob. If one of the symbols above persists, call Caple service.
-
Page 18: Installation Instructions
The cut out sizes are: Reference Cut-size C864I 560 x 490 mm Ensure that there is a distance of 50 mm between the hob and the wall or sides. The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 19: Electrical Connection
Attach the earth to the terminate “earth”, the neutral N to terminal N1 or N2, the Phase L1 to the terminals L1 and the Phase L2 to the terminal L2. Caple cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has... - Page 20 CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC). Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 22029-0...
