en Familiarising yourself with your appliance
If the cooking time is relatively long, you can switch
the appliance off 10 minutes before the cooking time
ends.
¡ There will be enough residual heat to finish cooking
the dish.
Remove any accessories that are not being used from
the cooking compartment.
¡ Accessories that are not being used do not need to
be heated.

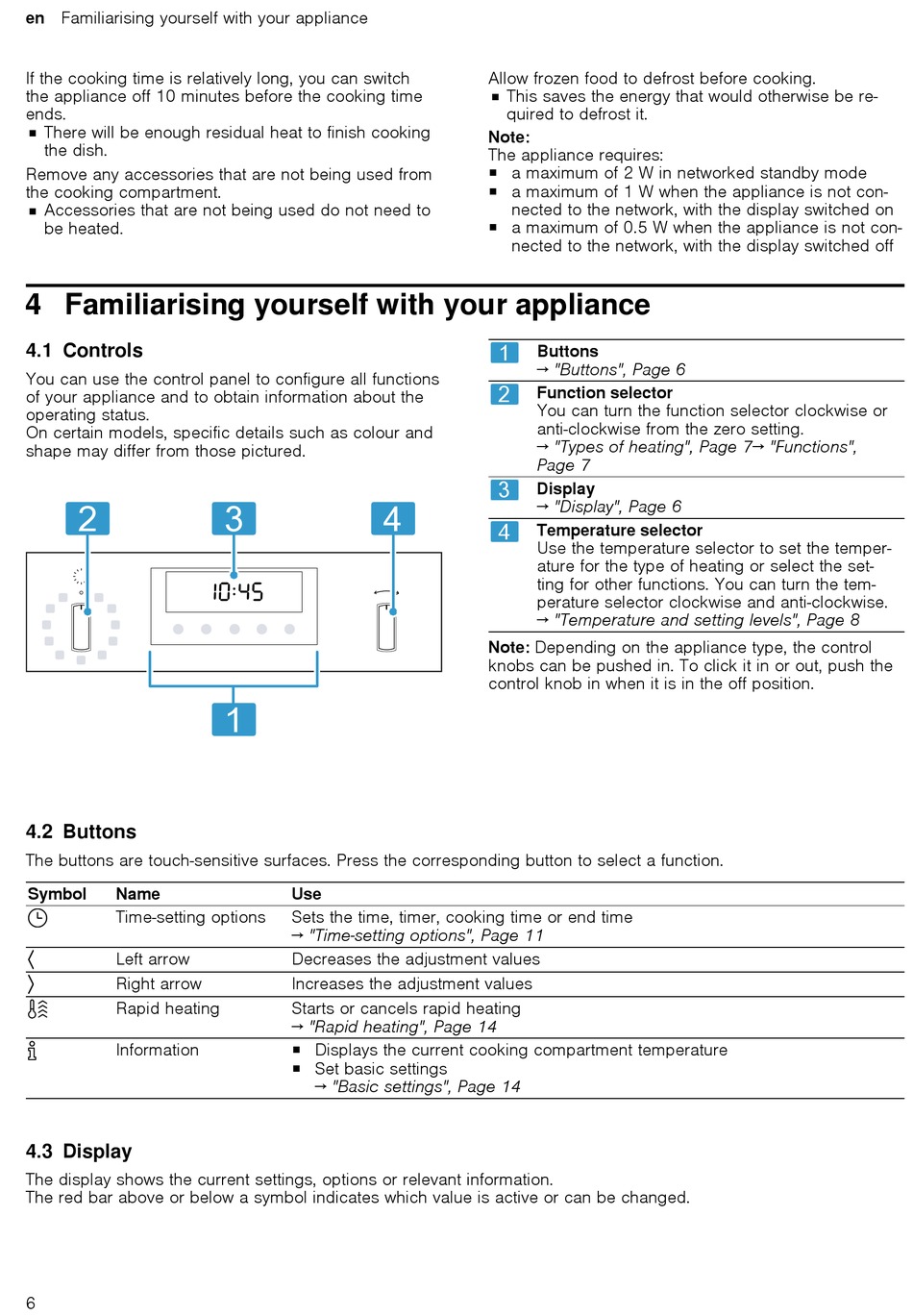

4 Familiarising yourself with your appliance
4.1 Controls
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
On certain models, specific details such as colour and
shape may differ from those pictured.
2
4.2 Buttons
The buttons are touch-sensitive surfaces. Press the corresponding button to select a function.
Symbol Name
Time-setting options
Left arrow
Right arrow
Rapid heating
Information
4.3 Display
The display shows the current settings, options or relevant information.
The red bar above or below a symbol indicates which value is active or can be changed.
6
3 4
1
Use
Sets the time, timer, cooking time or end time
→ "Time-setting options", Page 11
Decreases the adjustment values
Increases the adjustment values
Starts or cancels rapid heating
→ "Rapid heating", Page 14
¡ Displays the current cooking compartment temperature
¡ Set basic settings
→ "Basic settings", Page 14
Allow frozen food to defrost before cooking.
¡ This saves the energy that would otherwise be re-
quired to defrost it.
Note:
The appliance requires:
¡ a maximum of 2 W in networked standby mode
¡ a maximum of 1 W when the appliance is not con-
nected to the network, with the display switched on
¡ a maximum of 0.5 W when the appliance is not con-
nected to the network, with the display switched off
1
Buttons
→ "Buttons", Page 6
2
Function selector
You can turn the function selector clockwise or
anti-clockwise from the zero setting.
→ "Types of heating", Page 7→ "Functions",
Page 7
3
Display
→ "Display", Page 6
4
Temperature selector
Use the temperature selector to set the temper-
ature for the type of heating or select the set-
ting for other functions. You can turn the tem-
perature selector clockwise and anti-clockwise.
→ "Temperature and setting levels", Page 8
Note: Depending on the appliance type, the control
knobs can be pushed in. To click it in or out, push the
control knob in when it is in the off position.
