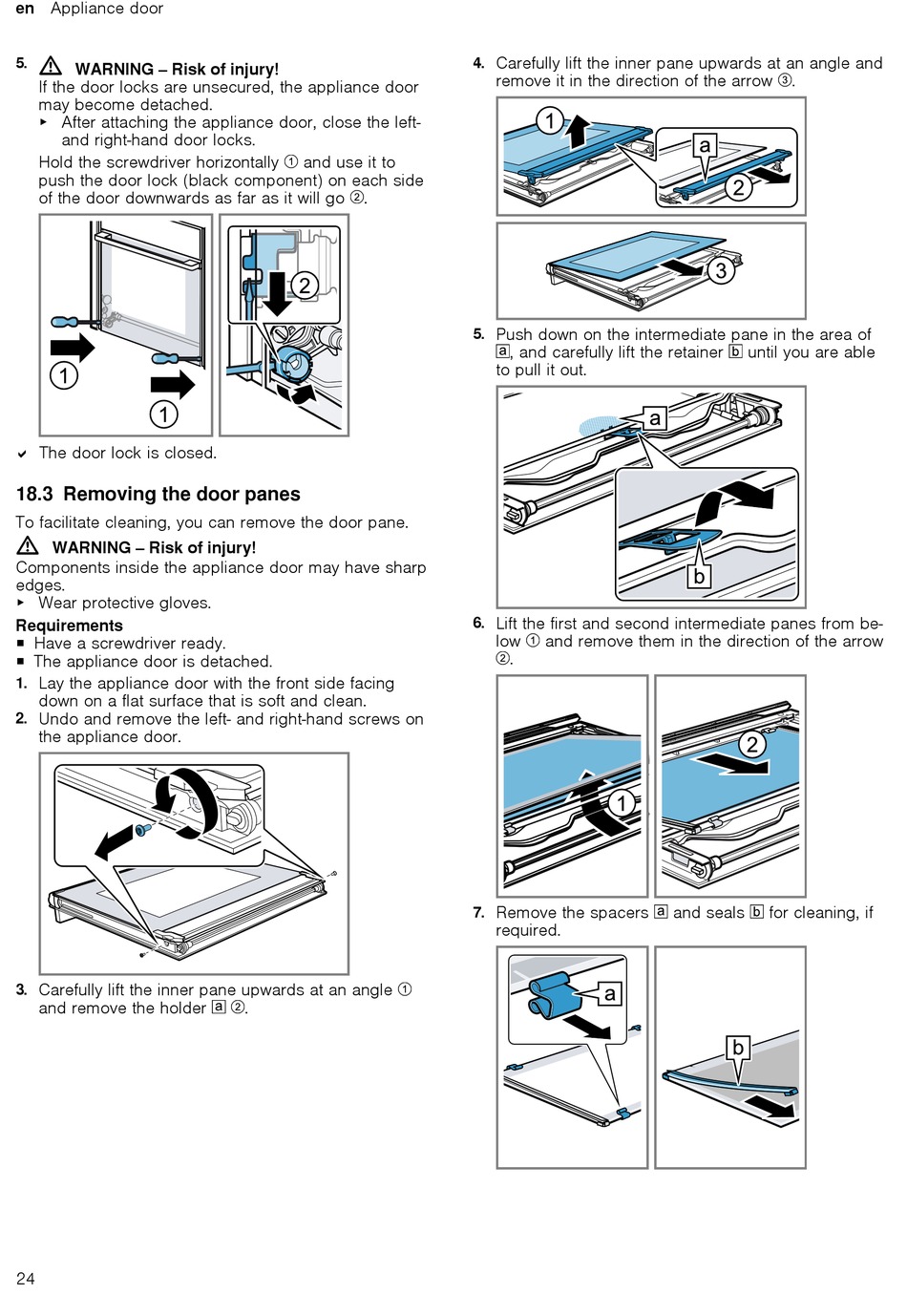

NEFF B6ACM7AG0A User Manual And Installation Instructions page 24

en Appliance door
5.
WARNING ‒ Risk of injury!
If the door locks are unsecured, the appliance door
may become detached.
▶
After attaching the appliance door, close the left-
and right-hand door locks.
Hold the screwdriver horizontally
push the door lock (black component) on each side
of the door downwards as far as it will go
a The door lock is closed.
18.3 Removing the door panes
To facilitate cleaning, you can remove the door pane.
WARNING ‒ Risk of injury!
Components inside the appliance door may have sharp
edges.
▶
Wear protective gloves.
Requirements
¡ Have a screwdriver ready.
¡ The appliance door is detached.
1.
Lay the appliance door with the front side facing
down on a flat surface that is soft and clean.
2. Undo and remove the left- and right-hand screws on
the appliance door.
3. Carefully lift the inner pane upwards at an angle
and remove the holder
24
and use it to
⁠ .
⁠ ⁠ .
4. Carefully lift the inner pane upwards at an angle and
remove it in the direction of the arrow
5. Push down on the intermediate pane in the area of
, and carefully lift the retainer
to pull it out.
6.
Lift the first and second intermediate panes from be-
low and remove them in the direction of the arrow
⁠ .
7. Remove the spacers
required.
⁠ .
until you are able
and seals for cleaning, if
