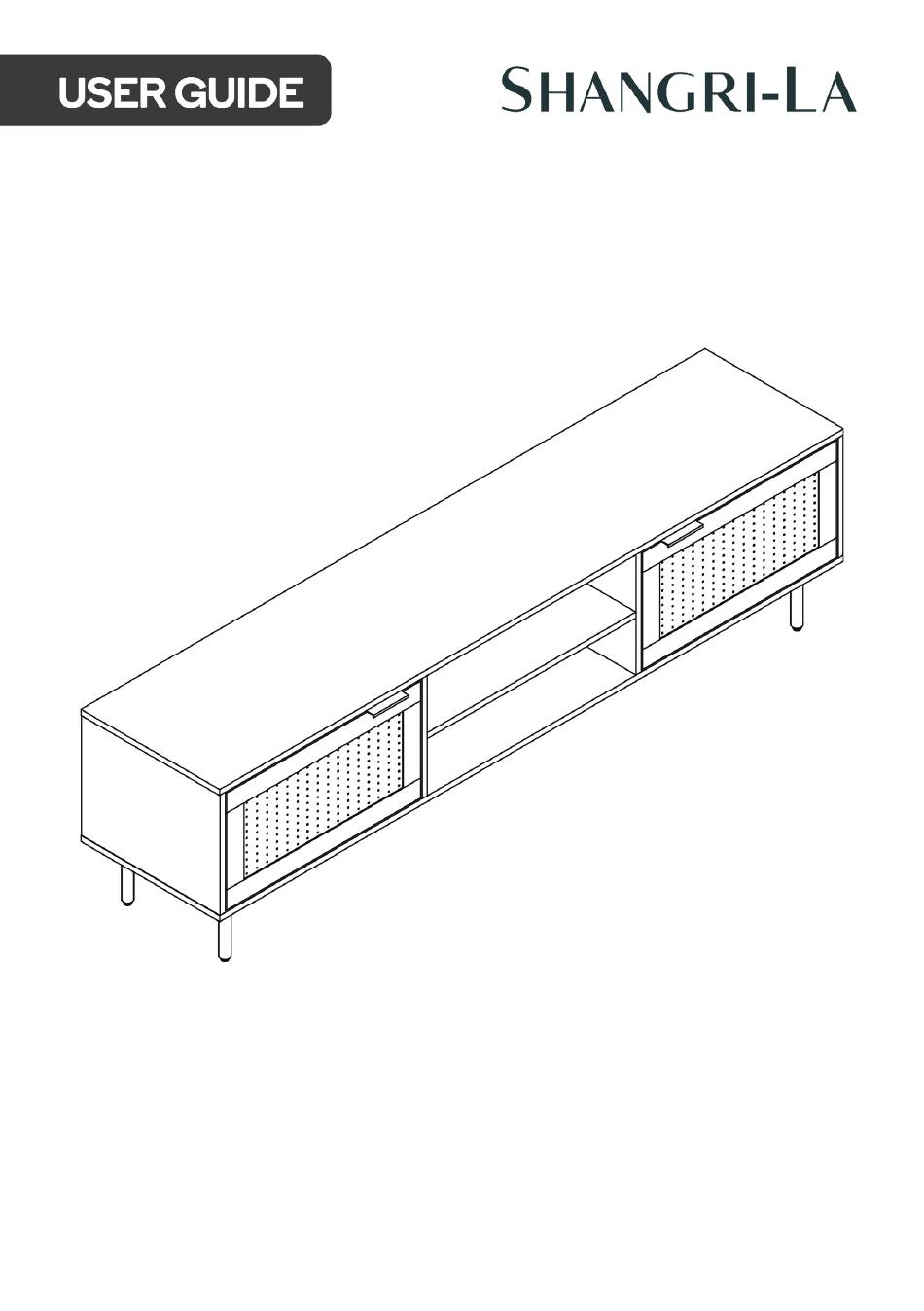

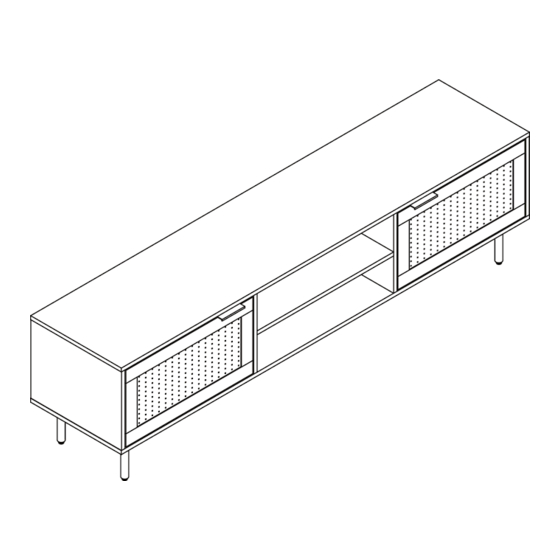

- Page 1 MARRAKESH ENTERTAINMENT UNIT SLMARRAKEUA...
- Page 3 COMPONENTS...
- Page 4 Hardware A (x20) B (x8) C (x12) D (x12) E (x28) F (x4) G (x2) H (x28) I (x8) J (x2) K (x8)
- Page 5 ASSEMBLY Step 1: Note: A Phillips head screwdriver (not supplied) will be required to assemble this entertainment unit. C (x8)
- Page 6 Step 2: C (x2) G (x1) H (x2)
- Page 7 Step 3: C (x2) G (x1) H (x2)
- Page 8 Step 4: Insert four dowels (A) into the inner holes part 10. Using a screwdriver, secure four cam locks (D) onto part 10. Align parts 5 and 6 with part 10. Ensuring the arrows on the cam locks (D) are pointing towards the corresponding cam screws (C), use a screwdriver to secure the cam locks (D) into the cam screws (C) to connect parts 5 and 6 to part 10.
- Page 9 Step 5: A (x8) D (x8) Step 6:...
- Page 10 Step 7: A (x8) B (x8) Step 8: E (x24)
- Page 11 Step 9: I (x8) K (x8)
- Page 12 Step 10: E (x4) F (x4) H (x8) J (x2)
- Page 13 Step 11: Use a Phillips head screwdriver to secure each hinge (F) with four screws (H). If the doors (11, 12) are uneven, or if there is a gap between the doors (11, 12) and assembly, loosen the screws (H) slightly and adjust the hinges (F) until they are flush with the assembly.
- Page 14 Step 12: Twist the adjusters on the legs (9) to ensure the entertainment unit is flat and stable.
- Page 15 Assembly is complete.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
