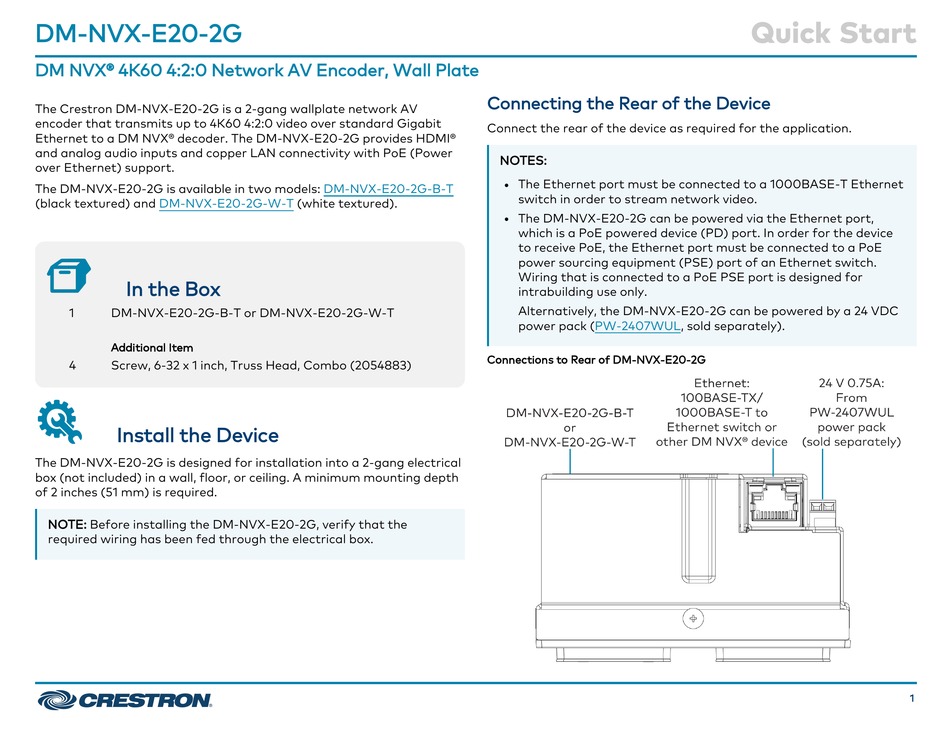

Crestron DM-NVX-E20-2G Quick Start

DM-NVX-E20-2G
DM NVX® 4K60 4:2:0 Network AV Encoder, Wall Plate

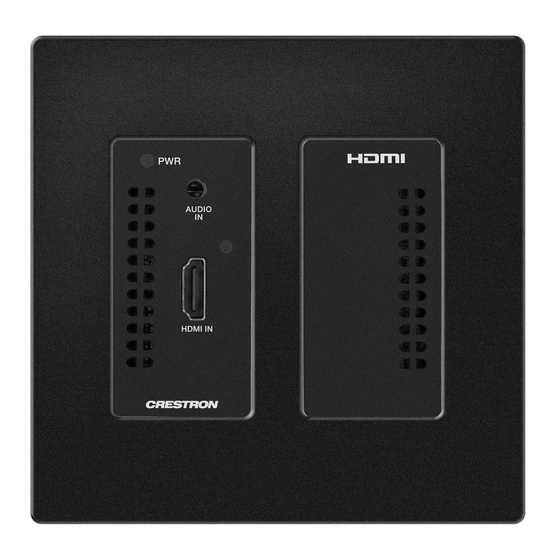

The Crestron DM-NVX-E20-2G is a 2-gang wallplate network AV
encoder that transmits up to 4K60 4:2:0 video over standard Gigabit
Ethernet to a DM NVX® decoder. The DM-NVX-E20-2G provides HDMI®
and analog audio inputs and copper LAN connectivity with PoE (Power
over Ethernet) support.
The DM-NVX-E20-2G is available in two models:
(black textured) and DM-NVX-E20-2G-W-T
In the Box
1 DM-NVX-E20-2G-B-T or DM-NVX-E20-2G-W-T
Additional Item
4 Screw, 6-32 x 1 inch, Truss Head, Combo (2054883)
Install the Device
The DM-NVX-E20-2G is designed for installation into a 2-gang electrical
box (not included) in a wall, floor, or ceiling. A minimum mounting depth
of 2 inches (51 mm) is required.
NOTE: Before installing the DM-NVX-E20-2G, verify that the
required wiring has been fed through the electrical box.
DM-NVX-E20-2G-B-T
(white textured).
Connecting the Rear of the Device
Connect the rear of the device as required for the application.
NOTES:
The Ethernet port must be connected to a 1000BASE-T Ethernet
l
switch in order to stream network video.
The DM-NVX-E20-2G can be powered via the Ethernet port,
l
which is a PoE powered device (PD) port. In order for the device
to receive PoE, the Ethernet port must be connected to a PoE
power sourcing equipment (PSE) port of an Ethernet switch.
Wiring that is connected to a PoE PSE port is designed for
intrabuilding use only.
Alternatively, the DM-NVX-E20-2G can be powered by a 24 VDC
power pack (PW-2407WUL, sold separately).
Connections to Rear of DM-NVX-E20-2G
Quick Start
1
