DM NVX® 4K60 4:4:4 HDR Network AV Encoder and Decoder
The Crestron
DM-NVX-E30
is a network AV encoder that transmits ultra
high-definition 4K60 4:4:4 HDR video over standard Gigabit Ethernet to
a DM NVX® decoder. The

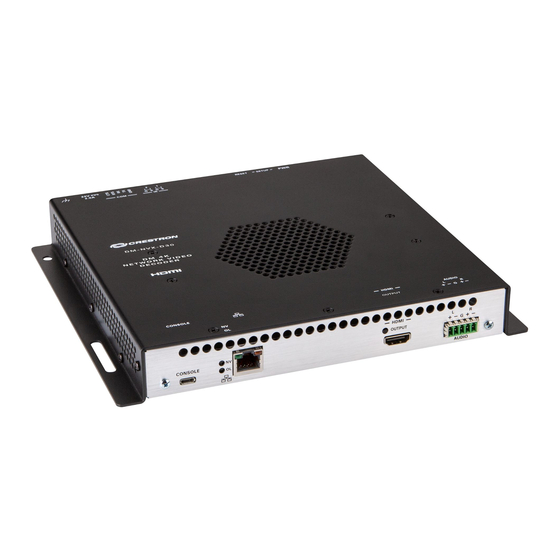

DM-NVX-D30
receives ultra high-definition 4K60 4:4:4 HDR video from a DM NVX
encoder.
The DM-NVX-E30 provides a single HDMI® input, and the DM-NVX-D30
provides a single HDMI output. Both devices feature secure web-based
control and management, an analog audio output, and copper LAN
connectivity.

In the Box

1
DM-NVX-E30 or DM-NVX-D30
Additional Items
1
Connector, 4-Pin (2003576)
2
Connector, 5-Pin (2003577)

Install the Device

The DM-NVX-E30 and DM-NVX-D30 can be mounted onto a flat
surface or onto a rack rail.

Mounting onto a Flat Surface

Using four mounting screws (not included), mount the device onto a flat
surface such as a wall or the underside of a table. The screw diameter
should be no more than 6 mm. Be sure to use the mounting hardware
that is appropriate for the surface to which the device is being mounted.
is a network AV decoder that
NOTE: Fan ventilation holes are provided on five sides of the device.
If the installation necessitates that another object be positioned
flush against the ventilation holes on one side of the device, leave a
minimum clearance of 2 inches of space on all other sides containing
ventilation holes.

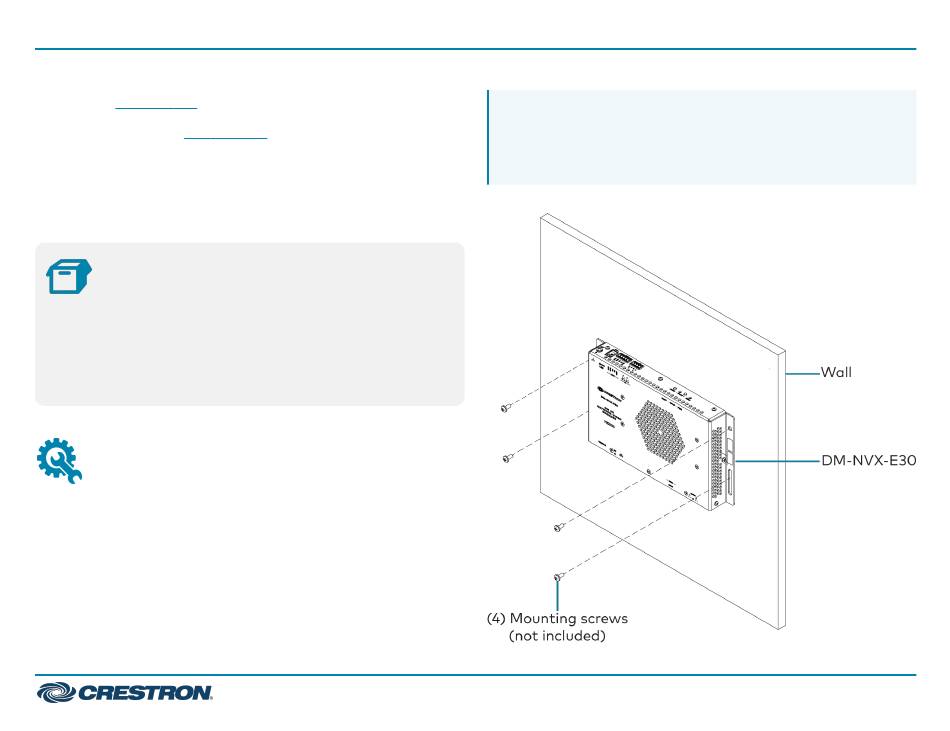

Wall Mounting (DM-NVX-E30 Shown)
Quick Start
1
