Minivent
Lo-Carbon RANGE

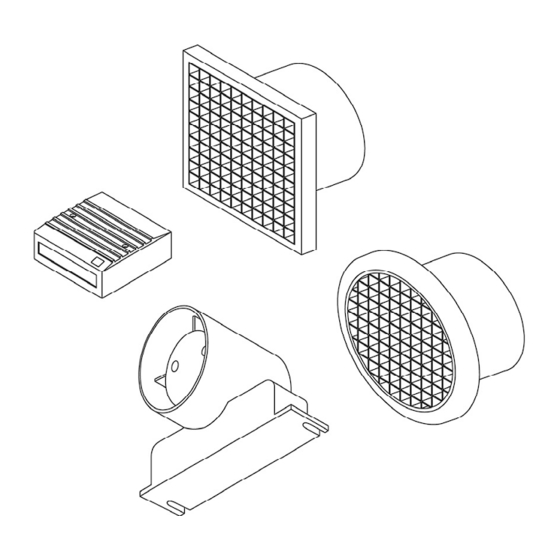

In-Line Fan Kit
Installation and Wiring Instructions
FAN UNITS 12V DC SELV (CLASS III)
CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II)
WITH 12V DC SELV OUTPUT
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS
Stock Ref. N°
Lo-Carbon
Minivent B (Basic)
441421A
Lo-Carbon
Minivent T (Timer)
441422A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lo-Carbon Minivent B and is the answer not in the manual?

Questions and answers

Related Manuals for Vent-Axia Lo-Carbon Minivent B

Summary of Contents for Vent-Axia Lo-Carbon Minivent B

  • Page 1 Minivent Lo-Carbon RANGE In-Line Fan Kit Installation and Wiring Instructions Stock Ref. N° Lo-Carbon Minivent B (Basic) 441421A Lo-Carbon Minivent T (Timer) 441422A FAN UNITS 12V DC SELV (CLASS III) CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II) WITH 12V DC SELV OUTPUT PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS.

  • Page 2: Safety And Guidance Notes

    H. The Fan should only be used in conjunction with the appropriate Vent-Axia products. I. It is recommended that the connection to the fan connecter terminals is made with flexible cable.

  • Page 3: Typical Installation

    INSTALLATION. The unit is designed to be installed in 100mm ducting. The ducting run should not exceed 3m. The flexible ducting should be fully extended to obtain the best results. Position the fan at the highest point on the system with both ducting runs sloping downwards from this point.

  • Page 4: Timer Adjustment

    Fig. 3. Minivent Lo-carbon T Timer Model. Switch the selector switch to the required mode. SELV Supply +ve -ve Switch Bath/Utility Room Toilet Control Timer mins Select Bath/Utillity (High Speed) or Toilet (Low Speed) using the Timer Adjuster. selector switch Timer Adjustment.

  • Page 5: Product Fiche

    PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name:   Vent‐Axia  Vent‐Axia  Lo‐Carbon MiniVent  Lo‐Carbon MiniVent  Model ID (Stock Ref.) :  B ‐ 441421     T ‐ 441422   SEC Class  E  E  SEC Value ('Average')  17.15  18.74  SEC Value ('Warm')  7.76  8.48  SEC Value ('Cold')  33.55  36.67  Label Required? (Yes/No=Out of scope)  No  No  Declared as: RVU or NRVU/UVU or BVU  RVU‐UVU  RVU‐UVU  Speed Drive  Multi‐Speed ...

  • Page 6: Servicing And Maintenance

    SERVICING AND MAINTENANCE. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE. 1. At intervals appropriate to the installation, the fan should be inspected and cleaned to ensure there is no build up of dirt or other deposits. The Lo-Carbon fan has sealed for life bearings, which do not require lubrication.
  • Page 8 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...

This manual is also suitable for:

Lo-carbon minivent t441421a441422a
