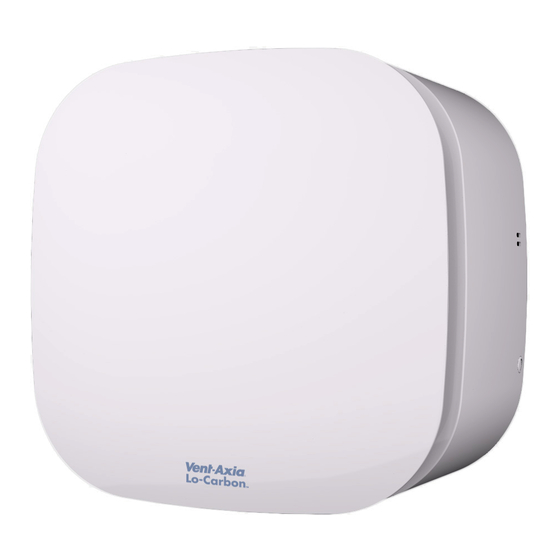

Lo-Carbon
Revive
CONTINUOUS & INTERMITTENT EXTRACT FILTERLESS FAN
Installation and Wiring Instructions
220-240V~50Hz
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Stock Ref. N°
Revive 7
473848
Revive 7 SELV
473849
Revive 5
473850
Revive 5 SELV
473851
Revive
473852
Revive SELV
473853
Revive Intermittent 478367
Revive SELV
478368
Intermittent
IPX4
Advertisement
Table of Contents
Related Manuals for Vent-Axia Lo-Carbon Revive Series
Summary of Contents for Vent-Axia Lo-Carbon Revive Series
- Page 1 Lo-Carbon Revive CONTINUOUS & INTERMITTENT EXTRACT FILTERLESS FAN Installation and Wiring Instructions Stock Ref. N° Revive 7 473848 Revive 7 SELV 473849 Revive 5 473850 Revive 5 SELV 473851 Revive 473852 Revive SELV 473853 Revive Intermittent 478367 Revive SELV 478368 Intermittent 220-240V~50Hz IPX4...
-
Page 2: Safety And Guidance Notes
C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The Fan should only be used in conjunction with the appropriate Vent-Axia products. E. The fan should only be used in conjunction with fixed wiring. -
Page 3: Installation
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. J. Young children should be supervised to ensure that they do not play with the appliance. DESCRIPTION The Revive fan is a continuously running or intermittent extract fan for kitchens, utility rooms, bathrooms and toilets. -
Page 4: Window Mounting
Loosen the screw at the bottom of the grille, and then remove the grille by carefully pulling away from the housing. Mark the screw centres through the holes in the fan back plate. Drill, plug and screw into position. Wire the fan as described in Section B-Wiring. Adjust any settings as required (see Section C-Setup). - Page 5 With the cover removed the LED display will show the commissioning menu. There are 3 buttons located below the display; these are used to control the setup process: The + button is used to increase the value of a setting, the – button is used to reduce the value of a setting and the X (Mode) button moves to the next setting.
- Page 6 Comfort mode Comfort mode changes how the fan boosts. Normally the fan will go into boost as soon as an LS input is detected and over run for the set period when LS is disconnected. In comfort mode the fan will not boost until the LS has been on for 5 minutes, preventing nuisance noise. After 5 minutes of LS being on the fan will run in boost as long as LS is on and for the over run time after LS is switched off.
- Page 7 Pull Cord Function Pull Boost 1 Pull Boost 2 Pull Trickle Pulling the pullcord will activate boost 1, a second pull will enter boost 2 and a third pull will cancel the boost, returning the fan to trickle speed. The pullcord can be used to cancel an LS activated boost, if the fan is in an LS activated boost pulling the pullcord will first enter boost a further pull will return the fan to trickle.
-
Page 8: Servicing And Maintenance
D. SERVICING AND MAINTENANCE. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE. 1. At intervals appropriate to the installation, the fan should be inspected and cleaned to ensure there is no build-up of dirt or other deposits. 2. - Page 9 Siting fan. Fig.1 Continuous trickle with boost via pull cord. (The fan is internally fused) Fig.2 Continuous boost 1 with no trickle facility. (The fan is internally fused) Fig.3. Continuous trickle with boost facility. (The fan is internally fused)
- Page 10 Fig.4 Continuous trickle with pullcord boost SELV models 1 Phase Supply (220-240V 50Hz). FUSE 24v D.C 12V D.C SELV Supply Switched Fused Spur (3A) Controller Fig.5 Continuous boost 1 with no trickle facility SELV models 12V D.C 24v D.C 1 Phase Supply SELV Supply (220-240V 50Hz).
- Page 11 Fig.7. Removing the grille for wiring and setup 2. Pull the grille clear of the screw and lift away Note: Revive 7 models; do NOT attempt to pull off the flat front cover. 1. Loosen the screw at the bottom of the grille Circuit board cover DO NOT REMOVE...
- Page 12 Vent-Axia guarantees this product for five or seven(Revive 7 model only) years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...
