Lo-Carbon
Response

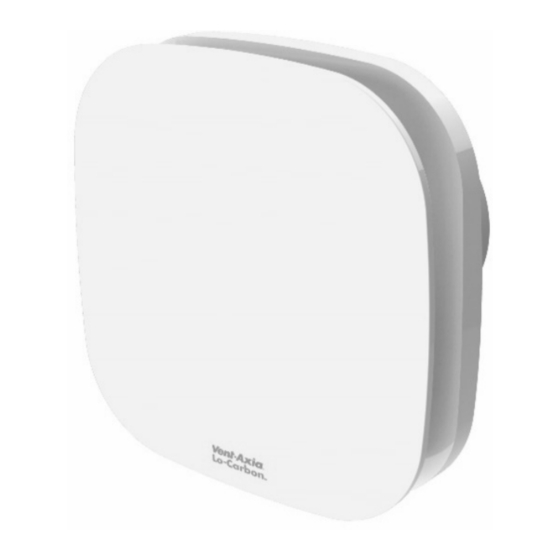

CONTINUOUS EXTRACT FAN
Installation and Wiring Instructions
220-240V~50Hz
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Stock Ref. N°
494143 - Response 7
494144 - Response 7 Pro
494150 - Response 7 SELV
494149 - Response 7 Pro SELV
IPX5
IPX7 (SELV)
Advertisement
Table of Contents
Related Manuals for Vent-Axia Lo-Carbon Responce Series
Summary of Contents for Vent-Axia Lo-Carbon Responce Series
- Page 1 Lo-Carbon Response CONTINUOUS EXTRACT FAN Installation and Wiring Instructions Stock Ref. N° 494143 - Response 7 494144 - Response 7 Pro 494150 - Response 7 SELV 494149 - Response 7 Pro SELV 220-240V~50Hz PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS.
-
Page 3: Safety And Guidance Notes
D. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. E. The Fan should only be used in conjunction with the appropriate Vent-Axia products. F. The fan should only be used in conjunction with fixed wiring. -
Page 4: Installation
J. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 PANEL/CEILING/ INTERIOR WALL MOUNTING Cut a 105mm diameter hole. Remove the front panel by carefully pulling it away from the fan. Loosen the two self-retaining screws and remove the inner grille by carefully pulling it away from the housing. Using the built in spirit level bubble as an aid.
-
Page 6: Window Mounting
WINDOW MOUNTING For window mounting refer to the instructions provided with the kit. B. WIRING. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING INSTALLATION OR MAINTENANCE. IMPORTANT The cross - sectional area of supply cord used should be ranged from 0.75 -1.5mm ... -
Page 7: Display Modes
Display modes When first powered on, the display will run through an initialisation sequence and then activate prism mode (cover on). When a button is pressed, the display will go into the menu system and display as viewed without the prism. The display will return to prism mode after 30 seconds of inactivity (i.e. -
Page 8: Standard Settings
Standard settings: Display Configuration Selections Default text Option r‐n Rotate display r‐Y = display rotated r‐n = display normal r‐n trI Trickle speed 100mm: 0*, 5 to 30 l/s (Max limited by Boost Selection) 9l/s adjustment bSt Boost speed 100mm: 6 to 35 l/s (Min limited by Trickle Selection) 15 l/s adjustment b15 Boost Overrun b0 to b30 – 0 to 30 minutes 15 time (0 disables overrun) h70 Humidity level h40 to h90 ‐ 40% to 90% relative humidity 70% RH trigger F‐0 Fan Control F‐0 = CV disabled, F‐1 = CV disabled, F‐2 = CV Constant F‐0 Mode ... -
Page 9: Comfort Mode
The Trickle Speed cannot be higher than the Boost selection. Therefore it might be necessary to modify the Boost selection before increasing the Trickle setting. If “0” is selected for the trickle speed, the fan will be off until a boost signal is activated (for example via LS/ pullcord/humidity). -
Page 10: Calibration Reset
operation the fan enters calibration mode to determine the most efficient mode of operation. Calibration Reset In some circumstances it may be necessary to reset the calibration settings (if the fan was covered to prevent dust/damage/or poor weather outside). Reset the calibration by configuring the fan for wall or duct mode (F-0 or F-1), turn the product off and on and re-configure back to CV mode (F-2). -
Page 11: Servicing And Maintenance
Data Examples Text scrolling from right to left In this example the display is showing a total run time of 1 year and 237 days. Text scrolling from right to left In this example the display is showing 34Wh of energy consumption in the previous 24h. - Page 12 Fig.1 Continuous trickle with boost via pull cord. (The fan is internally fused) Fig.2 Continuous boost 1 with no trickle facility. (The fan is internally fused Fig.3. Continuous trickle with boost facility. (The fan is internally fused)
- Page 13 Fig.4 Continuous trickle with pullcord boost SELV models 1 Phase Supply (220-240V 50Hz). FUSE 12V D.C SELV Supply Switched Fused Spur (3A) Controller Fig.5 Continuous boost with no trickle facility SELV models 12V D.C 1 Phase Supply SELV Supply (220-240V 50Hz). FUSE LINK Switched...
- Page 14 Fig.7 Removing the grille for wiring and setting the controls Pull front panel as shown. Loosen screws – DO NOT REMOVE FROM GRILLE (the screws are self-retaining) Pull inner grille away from housing as shown. Open up the internal cover to access the spirit level bubble and terminals.
- Page 16 Vent-Axia guarantees this product for 7 years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...
