Lo-Carbon Centra

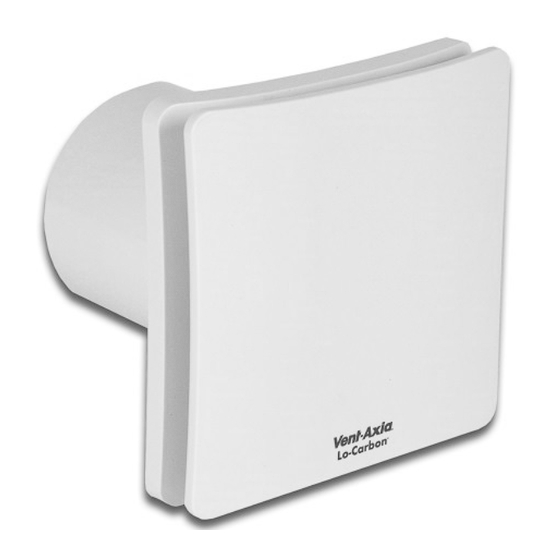

Continuous Extract Fan
Installation and Wiring Instructions
220-240V~50Hz
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Stock Ref. N
442954B Lo-Carbon Centra T
442955B Lo-Carbon Centra HT
447127B Lo-Carbon Centra TP
443045B Lo-Carbon Centra HTP
IPX4
Advertisement
Table of Contents
Related Manuals for Vent-Axia Lo-Carbon Centra Series
Summary of Contents for Vent-Axia Lo-Carbon Centra Series
- Page 1 Lo-Carbon Centra Continuous Extract Fan Installation and Wiring Instructions Stock Ref. N 442954B Lo-Carbon Centra T 442955B Lo-Carbon Centra HT 447127B Lo-Carbon Centra TP 443045B Lo-Carbon Centra HTP 220-240V~50Hz IPX4 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS.
- Page 2 IMPORTANT:READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION DO NOT install this product in areas where the following may be present or occur: • Excessive oil or a grease laden atmosphere. • Corrosive or flammable gases, liquids or vapours. • Ambient temperatures higher than 40°C or less than –5°C. •...
- Page 3 IMPORTANT: The fan should only be used in conjunction with fixed wiring. PANEL/CEILING MOUNTING For panel/ceiling mounting the fan should be installed into a closed duct system of at least 1.2m long or protected by an exterior air grille that must comply with the standard requirements of your country to prevent access to the fans impeller.
- Page 4 Fig.1 Continuous trickle with no remote boost facility (T &TP) Fig.2 Continuous Boost with no trickle facility (T, TP, HT, HTP) Note:- Link must be fitted between L & Ls Fig.3 Continuous trickle with boost facility via integral pullcord (TP & HTP) Note:- Link must be fitted between N &...
- Page 5 Trickle speed selection (6l/s or 9l/s) – (Fig. 6) Fig.6 The fan can extract at 6l/s (22m /h) or 9l/s (32m /h) flow rate. The fan will boost to 15l/s (54m /h) when the LS connection is switched. Timer Factory set at 6l/s (22m /h).
- Page 6 HUMIDITY SET-POINT ADJUSTMENT (HT & HTP ) (FIG. 6) BEFORE ADJUSTING THE CONTROLLER, SWITCH OFF THE MAINS SUPPLY. HUMIDISTAT SHOULD ONLY BE ADJUSTED BEFORE OR DURING INSTALLATION. 1. Remove the fan grille. The controller is factory set to switch on at about 70% RH. The humidity set point can be adjusted from 50-95%RH by altering the adjuster on the control PCB.
- Page 7 PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent‐Axia Vent‐Axia Vent‐Axia Vent‐Axia Lo‐Carbon Centra T Lo‐Carbon Centra Lo‐Carbon Centra Lo‐Carbon Centra Model ID (Stock Ref.) : ‐ 442954 TP ‐ 447127 HT ‐ 442955 HTP ‐ 443045 SEC Class E E C C SEC Value ('Average') 15.72 15.72 26.23 26.23 SEC Value ('Warm') 7.11 7.11 11.86 ...
- Page 8 SALES ENQUIRIES: Tel: 0344 8560590 Fax: 01293 565169 TECHNICAL SUPPORT: Tel: 0344 8560594 Fax: 01293 532814 For details of the warranty and returns procedure please refer to www.vent-axia.com or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX 406469 D 0916...
