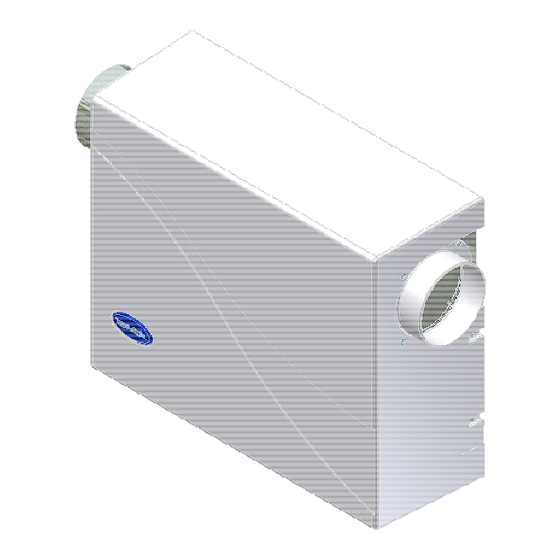

- Page 1 Lo-Carbon PoziDry Compact Positive Pressure Ventilation Unit Installation and Wiring Instructions Stock Ref. N° Pozidry Compact 444767 – With integral heater 444076 – Without heater 220-240V~50Hz IP22 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS...
-
Page 2: Safety And Guidance Notes
7. Children should be supervised to ensure that they do not play with the appliance. A. INTRODUCTORY NOTES The Vent-Axia Lo-CARBON POZIDRY COMPACT is a positive input ventilation unit, designed to be installed in apartments taking fresh air from outside and supplying the air, filtered, into the building. -
Page 3: Installation
B. INSTALLATION The Lo-CARBON POZIDRY COMPACT can be wall-mounted using the bracket and fixings supplied. A paper template is also supplied. The wall should have sufficient strength to support the unit. Take into consideration the routing of the cable and the ducting that must be fitted to both the inlet and discharge spigots. -
Page 4: Start-Up Sequence
C. WIRING WARNING: THE POSITIVE VENTILATION UNIT AND ANY ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION OR MAINTENANCE. THE Lo-Carbon PoziDry Compact (POSITIVE VENTILATION UNIT) MUST BE EARTHED. Mains supply voltages (220-240V ac) are present in this equipment which may cause death or serious injury by electric shock. - Page 5 The Lo-Carbon PoziDry Compact has built in fault detection software to ensure continual safe functioning. If any of these faults are displayed on the LCD display please contact Technical Support on 0844 8560594. F1 = open circuit thermistor i.e. not connected. F2 = short circuit thermistor i.e.
- Page 6 The filter may be gently cleaned with a vacuum cleaner or washed in a soapy water solution and allowed to air dry before re-fitting. Do not dry the filter in a tumble dryer. Spare filters are available from Vent-Axia Sales Centres. Spares...
-
Page 7: Fault Finding
F4 = Motor AND open circuit thermistor failures. F5 = Motor AND short circuit thermistor failures. PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent-Axia Vent-Axia Lo-Carbon PoziDry Lo-Carbon PoziDry Model ID (Stock Ref.) : Compact - 444076... - Page 8 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- Has been installed and used in accordance with the instructions given with each unit.
