Summary of Contents for Vent-Axia Lo-Carbon SOLO Plus Series

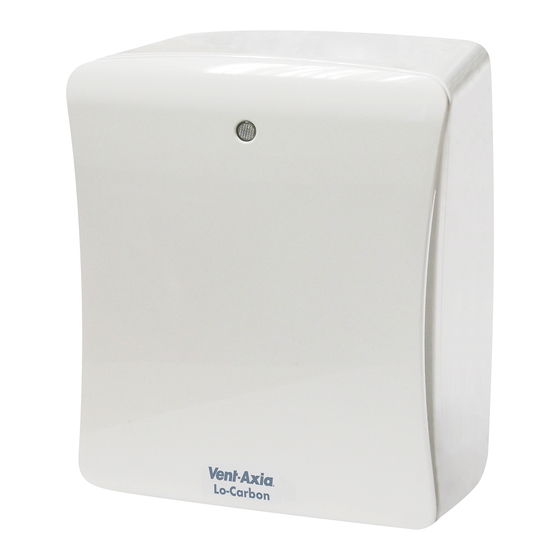

- Page 1 Lo-Carbon SOLO Plus Centrifugal Bathroom/Toilet Fan Installation and Wiring Instructions Stock Ref. N° 427481B (P) 427482B (T) 427483B (HT) 427484B (TM) 220-240V~50Hz PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS IPX4...
-
Page 2: Safety And Guidance Notes
C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The Fan should only be used in conjunction with the appropriate Vent-Axia products. E. It is recommended that the connection to the fan connector terminals is made with flexible cable. -
Page 3: Panel Mounting (Flush)
For wall installations a Wall Kit (25 41 02 White / 25 41 00 Brown) can be used. An optional filter is also available (449265). Please see our catalogue or web site (www.vent-axia.com) for more information on System 25/50 and for alternative ducting and termination options. - Page 4 4. Remove the Skirt and pass the supplied screw fully through the flange of the base housing. Then attach the 3 supplied Panel Clips (Fig 5). and partially screw into place until they are properly retained (allowing enough gap for the panel thickness). 5.
-
Page 5: Servicing And Maintenance
4. SELECTING THE DELAY-ON OPTION (T and HT models) - Switch dip switch 4 into the ON position to activate the delay-on feature. This will prevent the fan from going to boost for approximately 2 minutes. If the Switch Live is disconnected (switched off) within this period the fan will not boost. - Page 6 Fig. 2. Fig. 3. Attaching the Surface mounting Spigot. screw hole locations Fig. 4. Converting outlet spigot for side exit and recess mounting. Fig. 5. Fig. 6. PIR sensor cable - ( TM only Recess mounting clips In 3 positions To remove the cover on TM models the...
- Page 7 Fig. 7. Settings Top view of PCB cover showing pot locations And dip switch location LED position Timer adjuster Cable clamp (T/HT/TM Models) must be used To reduce time with surface Turn anti-clockwise. wiring. To increase time Turn Clockwise. Humidity adjuster (HT Model) To LOWER the set-point L N LS...
- Page 8 Fig. 9. T/HT wiring diagram...
-
Page 9: Product Fiche
PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Vent-Axia Vent-Axia Vent-Axia Vent-Axia Lo-Carbon Solo Plus Lo-Carbon Solo Plus Lo-Carbon Solo Plus Lo-Carbon Solo Plus Model ID (Stock Ref.) : P - 427481 T - 427482... - Page 10 Name: Vent-Axia Vent-Axia Vent-Axia Vent-Axia Lo-Carbon Solo Plus Lo-Carbon Solo Plus Lo-Carbon Solo Plus Lo-Carbon Solo Plus Model ID (Stock Ref.) : P - 427481 T - 427482 HT - 427483 TM - 427484 SEC Class SEC Value ('Average') 13.97 15.72...
- Page 11 Notes:-...
- Page 12 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- •...
