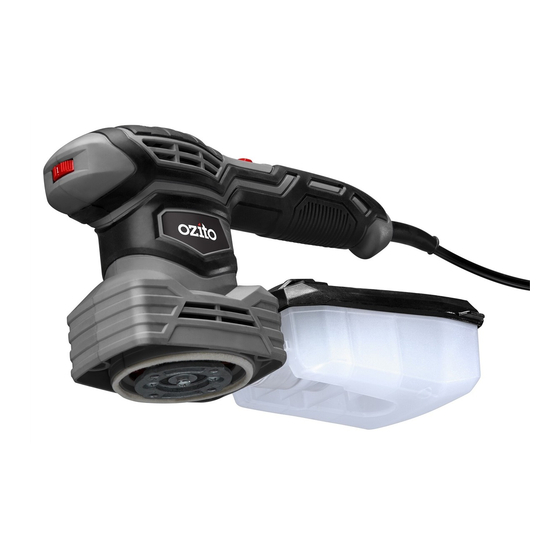

Ozito MSK-001 Instruction Manual

Multi sander

Advertisement

Quick Links

MULTI
SANDER
200W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
200W
No Load Speed:
7,000-12,000/min
Paper Fitment:
Hook & Loop
Paper Size:
145x100mm (Triangular)
125mm (Circular)
183x92mm (1/3 Sheet)
Weight:
1.38kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: carbon
brushes, dust bags, backing pads and sanding sheets.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WHAT'S IN THE BOX
Multi Sander
3 x Sanding Base
3 x Sanding Paper
Dust Canister
MSK-001
0118

Advertisement

loading

Summary of Contents for Ozito MSK-001

  • Page 1 Weight: 1.38kg ozito.com.au 3 x Sanding Paper Dust Canister MSK-001 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION 1. CHANGING SANDING BASES MULTI SANDER 1 Variable Speed Dial 4 Sure Grip Handle WARNING: ENSURE THE TOOL IS DISCONNECTED 2 Hook & Loop Sanding Pad 5 Dust Canister FROM THE POWER SUPPLY BEFORE PERFORMING 3 On/Off Switch ANY OF THE FOLLOWING OPERATIONS..
  • Page 3 2. FITTING SANDING PAPER 2. DUST BAG Hook and Loop Paper Fitment Installing 1 Align the holes on the sanding sheet with the holes on the sanding pad and then press onto the pad. Push the dust canister onto the dust extraction port. Emptying 1 Empty dust canister when it becomes...
  • Page 4: Operation

    Side to Side CAUTION: GUIDE THE POWER CORD DURING SANDING TO PREVENT IT BEING CAUGHT ON THE WORKPIECE OR OTHER OBJECTS. 5 Upon completion of the sanding operation, remove the sander from the workpiece and then turn off the sander. MSK-001...
  • Page 5: Maintenance

    2. Place new backing pad on the tool and retighten the four philips head screws by rotating clockwise. Note: Ozito Industries will not be responsible for any damage or injuries Sandpaper Selection caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 6: Electrical Safety

    Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
