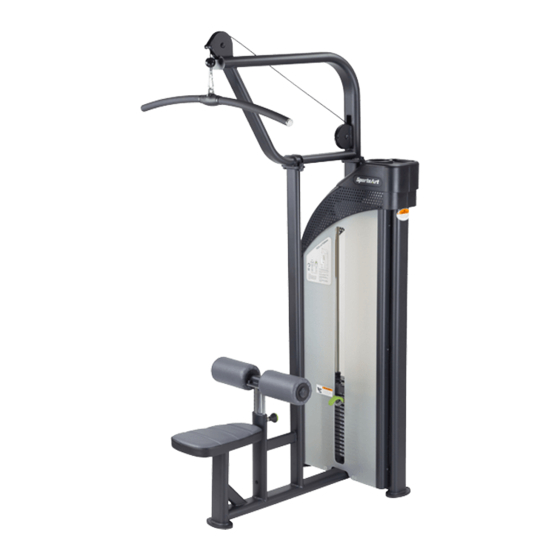

Lat pull down machine

Advertisement

Quick Links

P826 OWNER'S MANUAL CONTENTS
1. INTRODUCTION ................................................................................................................... 2
2. SAFETY PRECAUTIONS ...................................................................................................... 3
3.LIST OF PARTS ...................................................................................................................... 4
4. ASSEMBLE THE PRODUCT ................................................................................................
STEP 1 Cover Support Plate and the Connector Installation ...................................................
STEP 2 Weight Stack Installation ............................................................................................ 13
STEP 3 Apply the Weight Stack Sticker ................................................................................... 17
STEP 4 Cover Support Plate and the Front Cover Installation ................................................ 18
STEP 5 Horizontal Beam and the Cable Installation ................................................................ 19
STEP 6 Cylindrical Cushion and the Lat Pull Bar Installation ................................................... 21
STEP 7 Seat Bottom Installation ............................................................................................... 22
STEP 8 Cable Adjustment ......................................................................................................... 23
STEP 9 Stack Fork Inspections ................................................................................................ 24
STEP 10 Rear Cover nstallation ............................................................................................... 25
STEP 11 Install plastic covern ................................................................................................... 26
STEP 12 Install cap nut ............................................................................................................ 27
STEP 13 Unit Inspection .......................................................................................................... 28
STEP 14 Secure the Product ................................................................................................... 29
STEP 15 Assistive Carabiner ................................................................................................... 30
5. OPERATION INSTRUCTION ............................................................................................... 31
OPERATION Safety Operating Area ....................................................................................... 31
OPERATION Exercising Instructions ........................................................................................ 32
6. MAINTENANCE ................................................................................................................... 34
MAINTENANCE Safety Precautions ....................................................................................... 34
MAINTENANCE Guide Rod Cleaning and Lubricating ............................................................ 35
MAINTENANCE Schedule ....................................................................................................... 36
MAINTENANCE Task List ....................................................................................................... 37
MAINTENANCE One-Year Maintenance Log .......................................................................... 38
7. CONSIGNES DE SÉCURITÉ IMPORTANTES .................................................................... 39
8. APPENDIXES ...................................................................................................................... 39
APPENDIXES Optional accessories ........................................................................................ 40
*We reserve the right to revise this manual at any time without notice.
9
9
