P755 OWNER'S MANUAL CONTENTS
1. INTRODUCTION ................................................................................ 2
2. SAFETY PRECAUTIONS ..................................................................
3. LIST OF PARTS .................................................................................
4. ASSEMBLE THE PRODUCT .............................................................
STEP 2 Weight Stack Installation ......................................................... 13
STEP 4 Chest Cushion Installation ....................................................... 21
STEP 5 Apply the Weight Plate Sticker ................................................. 22
STEP 6 Front Cover and Rear Cover Installation .................................. 23
STEP 7 Top Covers Installation ............................................................. 24
STEP 8 Storage Tray Installation ........................................................... 25
STEP 9 Cable Adjustment ..................................................................... 26
STEP 10 Stack Fork Inspections ........................................................... 27
STEP 11 Level the Product .................................................................... 28
Level the Product
5. OPERATION INSTRUCTION ............................................................ 29
6. MAINTENANCE ................................................................................ 30
MAINTENANCE Schedule .................................................................... 31
MAINTENANCE Task List .................................................................... 32
MAINTENANCE One-Year Maintenance Log ....................................... 33
7. CONSIGNES DE SÉCURITÉ IMPORTANTES ................................. 34
3
4
8
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P755 and is the answer not in the manual?

Questions and answers

Summary of Contents for SportsArt Fitness P755

  • Page 1: Table Of Contents

    P755 OWNER’S MANUAL CONTENTS 1. INTRODUCTION ................2 2. SAFETY PRECAUTIONS ..............3. LIST OF PARTS ................. 4. ASSEMBLE THE PRODUCT ............. STEP 1 Cover Support Plate and the Connector Installation ....STEP 2 Weight Stack Installation ............13 STEP 3 Foot Swing Rod/Plate and the Cable Installation ....17 STEP 4 Chest Cushion Installation ............
  • Page 2: Introduction

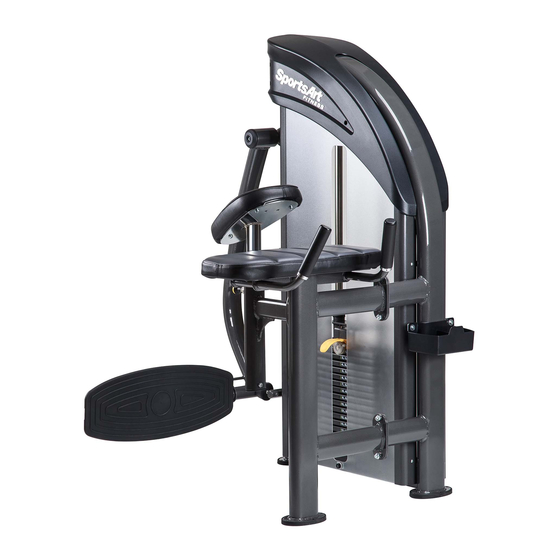

    1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the P755 Glute machine. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual.
  • Page 3: Safety Precautions

    2. SAfETy PRECAUTIONS This product was designed and built for optimum safety. However certain precau- tions apply during the use of this product. Please note the following safety precau- tions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual.
  • Page 4: List Of Parts

    3. LIST Of PARTS Box A...
  • Page 5 Box B Box C...
  • Page 6 Box A - Main frame Components No. Name Qty. No. Name Qty. Weight stack top right Weight stack rod cover Weight stack top left Cover bracket cover A3 Main frame Cover support plate A A4 Cover support plate B-2 Rear cover A5 Cover support plate B-1 Front cover A6 Storage tray...
  • Page 7 Components in the Hardware Kit Name Qty. Specification Notes Round head inner hex screw M6*P1.0*20 Bushing D21.5*10.5 Round sticker Front cover support plate L-shaped Allen wrench (M4) L-shaped Allen wrench (M5) L-shaped Allen wrench (M6) L-shaped Allen wrench (M8) T-shaped Allen wrench M4*L100 Open end wrench (13*17)
  • Page 8: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.
  • Page 9 (a). Insert the screw sockets (10) into place in the main frame (A3) as shown, and then use the screws (11) (12) to secure the brackets (A16) (A17) in place. (Note: The bracket (A16) must be secured to the top of maim frame as shown.)
  • Page 10 (b). Use the screws (13) to secure the cover support plates (A10) to the straight frame of the main frame (A3) and then secure the cover support plates (A4) (A5) to the both side of the curved frame as shown. (Note: The cover support plates must be secured outside of the bracket (A16) (A17).)
  • Page 11 (c). Loosen and remove the screws (30) from the seat frame A (A23). (d). Use the screws (30) to secure the seat frame B (A24) to the straight frame of the seat frame A (A23).
  • Page 12 (e). Connect the seat frame A (A23) to the main frame (A3) and align holes, and then scecure with the screws (15) as shown.
  • Page 13: Step 2 Weight Stack Installation

    STEP 2 Weight Stack Installation...
  • Page 14 (a). Hold the upper stack carriage set (33), and then cut the zip tie. Gently lower the upper stack carriage set (33) into place as shown. (b). Remove the screws (34). Set the guide rod (35) downward into place as shown.
  • Page 15 (d). Loosen and remove the screws (36) from the stack fork (A7) and insert the weight stack rod (A8) into the central mounting position of the upper stack carriage set (33). Use the screws (36) to secure the stack fork (A7) into place of the upper stack carriage set (33) as shown.
  • Page 16 (f). Tilt the guide rods (35) back into place and then lift them up to their mounting position, and then secure the assembly with the screws (34).
  • Page 17: Step 3 Foot Swing Rod/Plate And The Cable Installation

    STEP 3 foot Swing Rod/Plate and Cable Installation...
  • Page 18 (a). Loosen and remove the screws (32) and the screw soft cap (38) from the main frame (A3) and the foot swing plate (A26).
  • Page 19 (b). Insert the foot swing rod (A25) and the foot swing plate (A26) onto the main frame (A3) and secure with the screws (31) (32), the round sticker (17) and the screw soft cap (38).
  • Page 20 (c). Insert the cable nut as indicated by the arrows onto the weight stack rod (A8) at least 15-20mm deep as shown. (d). Loose the cable and Insert the cable set block onto the foot swing rod (A25) and secure the cable set block with the screws (41).
  • Page 21: Step 4 Chest Cushion Installation

    STEP 4 Chest Cushion Installation (a). First, remove the screws (37) from the seat back (A21) and the chest cushion (A22) as shown. (b). Use the screws (37) to secure the seat back (A21) to the seat frame A (A23). (c).
  • Page 22: Step 5 Apply The Weight Plate Sticker

    STEP 5 Apply the Weight Plate Sticker Note: Before applying weight plate stickers, please wipe the area clean, and clean your hands before proceeding to the next step. (a). Align and tape the cardboard to the upper left corner of the weight plate (A30).
  • Page 23: Step 6 Front Cover And Rear Cover Installation

    STEP 6 front Cover and Rear Cover Installation (a). Use the screws (11) to secure the cover bracket (A9) in place on the main frame (A3) as shown. (b). Slide the front cover (A14) (A15) from the top down into the cover support plates’...
  • Page 24: Step 7 Top Covers Installation

    STEP 7 Top Covers Installation *Secure the weight stack top right cover (A1) and the top left cover (A2) with the screws (14). (Note: During assembling, place the bracket of the top covers inside of the cover support plates (A4) (A5) as shown.)
  • Page 25: Step 8 Storage Tray Installation

    STEP 8 Storage Tray Installation (a). Loosen and remove the screws (42) (43) from the storage tray (A6) and the main frame. (b). Hold the storage tray (A6) in place and secure it with the bracket and the screws (42) (43) as shown.
  • Page 26: Step 9 Cable Adjustment

    STEP 9 Cable Adjustment * Insert the stack fork into the gap under the lowest weight plate, and then adjust the large nut at area C. Adjust until the upper stack carriage set moves slightly. To adjust the cable, first insert the (Z) rod and loosen the (Y) nut, and then adjust the (X) nut.
  • Page 27: Step 10 Stack Fork Inspections

    STEP 10 Stack fork Inspections * Please follow operating instructions on the product sticker to test operation and confirm that the equipment is working properly. * Insert the stack fork to make sure that every weight plate can be engaged easily.
  • Page 28: Step 11 Level The Product

    STEP 11 Level the Product For the user’s safety and the proper functioning of the product, this machine must sit level on a flat floor. If necessary, adjust the levelers by following instructions (a) through (c) below. (a) Loosen the leveler nut. (b) Rotate the leveler foot downward so it firmly touches the floor.
  • Page 29: Operation Instruction

    5. OPERATION INSTRUCTION * Chest cushion and seat bottom height positioning can be adjusted. Simply, put out the related knob, make the adjustment, and release the knob to secure the desired position.
  • Page 30: Maintenance

    6. MAINTENANCE This section covers maintenance topics and includes a maintenance schedule, task list, and log. Maintenance Machine Maintenance 1. Apply lubricant to the guide rods every week. Procedure: (a). Put some lubricant on a clean, lint-free cloth. Rub the lubricated cloth on the guide rods.
  • Page 31: Maintenance Schedule

    Maintenance Schedule (P755) Maintenance Schedule Area Day Week Month Quarter Year Notes 1 Exterior Clean. Inspect for looseness and 2 Screws secure if necessary. Check for proper equipment 3 Test operation. Seat back/ Use damped cloth to clean. bottom Check for damage or wear.
  • Page 32: Maintenance Task List

    Maintenance Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.
  • Page 33: Maintenance One-Year Maintenance Log

    Maintenance One-year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...
  • Page 34: Consignes De Sécurité Importantes

    7. CONSIGNES DE SÉCURITÉ IMPORTANTES Le produit SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous utilisez votre produit. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
