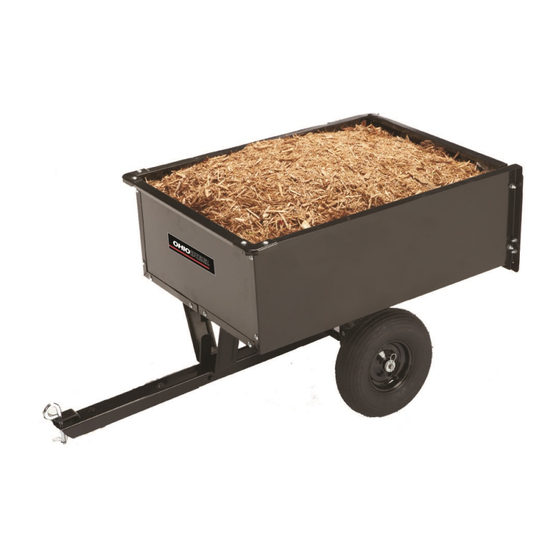

- Page 1 2638HKD 9 cu. ft. STEEL DUMP CART 6002858-REV A 12/13 Assembled in U.S.A. of domestic and imported components...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment. -
Page 3: Tools Required For Assembly
Carton Contents 1 (x1) 5 (x2) 18 (x1) 2 (x1) 10 (x1) 6 (x4) 3 (x1) 4 (x1) 17 (x2) 7 (x1) 9 (x1) 8 (x1) 28 (x2) 22 (x1) 23 (x3) 21 (x50) 19 (x4) 24 (x1) 20 (x50) TOOLS REQUIRED FOR ASSEMBLY: •... - Page 4 Assembly Instructions Place body halves on a smooth, flat surface so they are square and fasten together with hardware as shown. Attach front support to body and tighten with hardware as shown. Attach front gate to inside of body with supplied hardware as shown.
- Page 5 Assembly Instructions Attach corner bumpers to body of cart and tighten with hardware as shown. Attach undercarriage to body. LOOSELY tighten bolts at this time. Insert axle into undercarriage halfway as shown. Attach spacer, drawbar assembly, and spacer.
- Page 6 Assembly Instructions Slide axle completely through undercarriage; be sure to catch the drawbar when sliding the axle. Align drawbar with the front support and press down to latch. Slide washers and wheels onto axle and secure with hairpins as shown. NOTE: TIGHTEN MAKE SURE ALL HARDWARE...
- Page 7 Assembly Instructions Attach corner gussets to rear and sides of body and tighten with hardware as shown. Attach tailgate to body as shown. No hardware is required, tailgate should move freely up or down. Install hitch pin and hairpin to secure to attachment vehicle.
- Page 8 Operating Instructions Before Using Dump Cart: Check tire pressure and inflate to 30 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin. Do not exceed 350 pounds when loading material into the cart body.
-
Page 9: Warranty
United States. In the space below record the purchase date of your Dump Cart. Model Number 2638HKD Purchase Date Keep this Owner's Manual and your receipt in a safe place for future reference. After the two year warranty period all replacement parts may be ordered by calling 1-800-652-2321 . -
Page 10: Repair Parts
