SERVICE MANUAL
EN
704427 (DGIPRO-505)

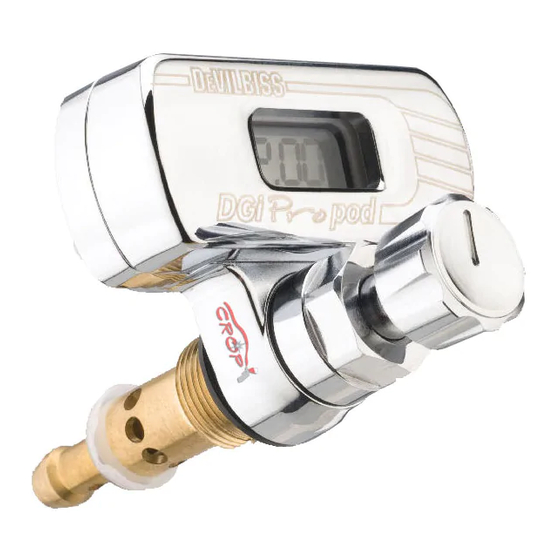

ATEX approved Digital Pressure Gauge
DV1 Spraygun
Class 1 Zone 0 AEx ia IIC T4
IMPORTANT! DO NOT DESTROY
It is the Customer's responsibility to have all operators and service personnel read and understand
this manual.
Contact your local Carlisle Fluid Technologies representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS PRODUCT.
SB-E-9-224 R1.0
www.carlisleft.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DeVilbiss Carlisle DV1
Summary of Contents for DeVilbiss Carlisle DV1
- Page 1 SERVICE MANUAL 704427 (DGIPRO-505) ATEX approved Digital Pressure Gauge DV1 Spraygun Class 1 Zone 0 AEx ia IIC T4 IMPORTANT! DO NOT DESTROY It is the Customer's responsibility to have all operators and service personnel read and understand this manual. Contact your local Carlisle Fluid Technologies representative for additional copies of this manual.
-
Page 2: Functional Description
FUNCTIONAL DESCRIPTION The DV1 Digital Pressure Gauge is an intrinsically safe device, approved to regulations UL61010-1 Ed.3, UL60079-0 Ed.6, UL60079-11 Ed.6. The gauge is either supplied as a retrofit kit to existing DV1 sprayguns, or factory installed. The gauge is powered by a long life battery and has a life expectancy of 2 years under normal shift working conditions (following a max. - Page 3 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasise important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance severe personal injury, death or substantial minor personal injury, product or property information.
-
Page 4: Exploded View
EXPLODED VIEW T10 TORX 1 Nm [10 in-lbs] 11mm HEX 9 Nm [80 in-lbs] IMPORTANT This gauge is suitable for use with both water-based and solvent based coating materials and cleaners. Please consult your gun washing machine supplier to confirm the suitability of this device being used in their equipment. -
Page 5: Parts List
PARTS LIST REF. PART No. DESCRIPTION QTY. 704427 DIGITAL GAUGE ASSEMBLY GAUGE MODULE 704420 DIGITAL GAUGE SPREADER VALVE AIR VALVE STEM SPREADER VALVE PIN O RING VALVE BODY O RING 704421 KNOB AND SCREW KIT VALVE ADJUSTING KNOB SCREW 704417 AIRFLOW VALVE 704429 TOOL KIT... - Page 6 [pH 6 to 8]. • The digital gauge is not designed to be cleaned within an ultrasonic bath. If there is any doubt regarding the suitability of a specific material, contact your DeVilbiss Distributor or DeVilbiss direct. CAUTION •...
-
Page 7: Start-Up Sequence
START-UP SEQUENCE Turn spreader valve (10) counter-clockwise until fully open. Turn the air flow valve (12) at the bottom of the gun handle clockwise until fully closed. With the hose connected, turn on the air supply. Open the air flow valve (12) by turning counter-clockwise and trigger the spray gun (air only). The gauge will show a reading in 1.0 psi [0.07 bar] increments. -
Page 8: Warranty Policy
Carlisle Fluid Technologies is a global leader in innovative finishing technologies. Carlisle Fluid Technologies reserves the right to modify equipment specifications without prior notice. DeVilbiss®, Ransburg®, MS®, BGK®, and Binks® are registered trademarks of Carlisle Fluid Technologies, Inc. © 2018 Carlisle Fluid Technologies,Inc.
