Important
MODELS
DEMI- Air Cap № - Fluid Tip Size – Type of Feed G:Gravity
(Ex.) : DEMI-DM1 -1.1-G ← (DM1 Air Cap – Size 1.1 mm - Gravity)
SPECIFICATIONS
Maximum Working Air Pressure: 0.69 MPa,
Chart.1
Air Cap №
Tip size(mm)
Part Number
DM1
DM2

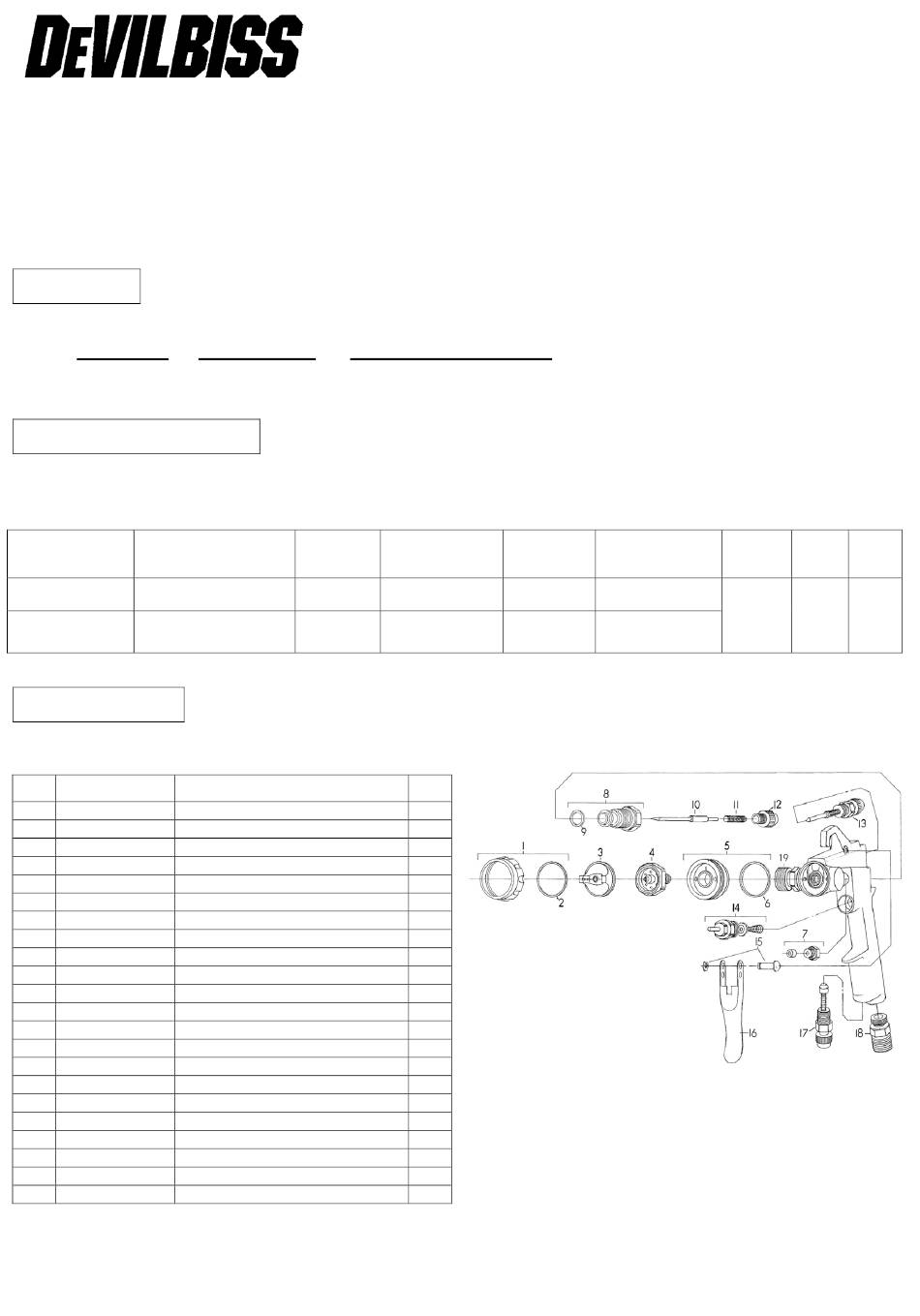

PARTS LIST
Chart.2
Ref.
Part Number
No.
1 DM-3
Retaining Ring Assy.
2 DM-20-K5
Seat Kit of 5
3 DM-1
Air Cap (For Base Coat)
DM-2
Air Cap (For Clear Coat)
4 DM-4-1.1
Fluid Tip
5 DM-5
Baffle with Gasket
6 DM-6-K5
Gasket kit of 5
7 DM-7
Needle Packing Kit
8 DM-8
Bushing
9 DM-9-K5
Gasket kit of 5
10 DM-10
Needle
11 DM-11-K5
Needle Spring Kit of 5
12 DM-12
Adjusting Screw (Gold)
DM-12-1
Adjusting Screw (Green)
13 DM-13
Pattern Valve
14 DM-14
Air Valve
15 DM-15
E-Ring/Stud kit
16 DM-16
Trigger
17 DM-17
Cheater Valve
18 DM-18
Air Connector
19 DM-19
Fluid Inlet
20 LUNA-34
Spanner (standard acc.)
D
MI
Operation Manual
E
GUN
:Read and follow all instructions and SAFETY PRECAUTIONS
before using this equipment
Maximum Working Fluid Pressure: 0.69 MPa
Feed
1.1
G
1.1
G
Description
Air consumption
Pattern width
Gun inlet pressure
(mm)
95L/min
150
0.15MPa
95L/min
130
0.15MPa
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
SB-JE-DEMI-C
Application
Fluid inlet Air inlet
G1/4
Weight
(g)
G1/4
228

Advertisement

loading
Need help?

Need help?

Do you have a question about the DEMI-DM1-1.1-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DeVilbiss DEMI-DM1-1.1-G

  • Page 1 Operation Manual SB-JE-DEMI-C :Read and follow all instructions and SAFETY PRECAUTIONS Important before using this equipment MODELS DEMI- Air Cap № - Fluid Tip Size – Type of Feed G:Gravity (Ex.) : DEMI-DM1 -1.1-G ← (DM1 Air Cap – Size 1.1 mm - Gravity) SPECIFICATIONS Maximum Working Air Pressure:...
  • Page 2 SAFETY PRECAUTIONS This manual contains information that is important for you to know and understand. This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. Read and follow SAFETY PRECAUTIONS before using this equipment. FIRE OR EXPLOSION HAZARD 1. When spraying, adequate exhaust must be provided to keep air free of accumulations of flammable vapors which may cause fire or explosion.
  • Page 3 PREVENTIVE MAINTENANCE 1. Daily lubrication and cleaning is necessary to maintain the best condition of the gun. 2. To clean the gun body, wipe exterior with solvent dampened cloth. Do not submerge the gun body in solvent as any solids may get into the air passage and cause troubles. 3.
  • Page 4 SERVICE CHECKS problem Cause Correction Will not spray No pressure to gun. Check air and material lines. Adjust ing Screw (12) not properly adjusted. Adjust. Inproper spray pattern A,B.Material build up on the Air Cap or Fluid Tip. A,B Clean the Air Cap or Fluid Tip. C,D Incorrect fluid delivery or viscosity.
