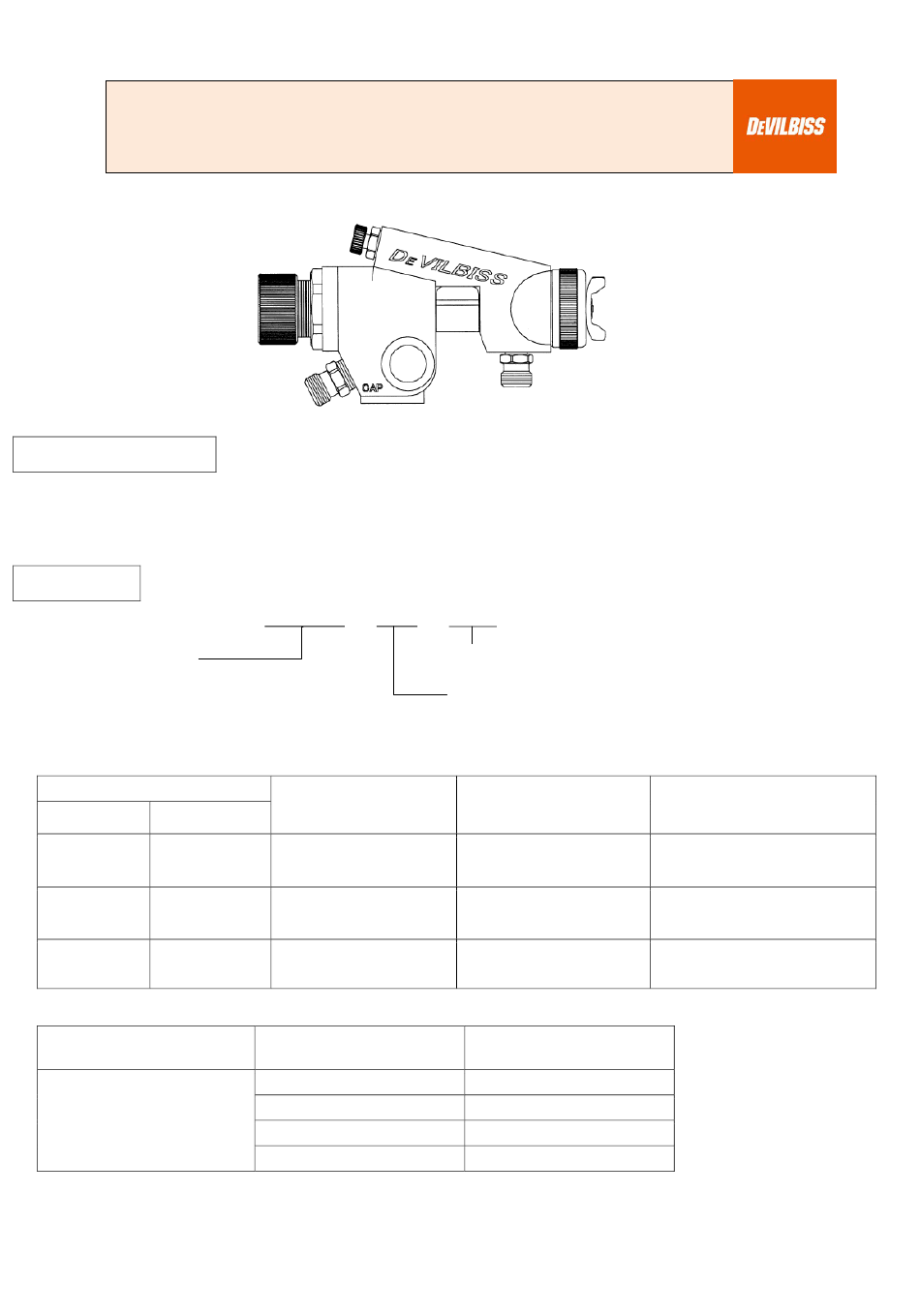

DeVilbiss DA-300 Operation Manual

DA-300 LVMP AUTOMATIC SPRAY GUN
Important：Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment.
DESCRIPTION
DA-300 LVMP gun is developed to achieve high transfer efficiency and it can be obtained as well as high atomization with less
air consumption. LVMP stands for Low Volume Medium Pressure.
Small, lightweight LVMP gun is suitable for installing to automatic or semi-automatic machines.
Models and application information follows.
MODELS
Basic Part No.
NOTE: The fluid passage is made of Stainless Steel. This gun can be used with waterborne paint.
Chart 1
Air Cap
Marking Part No.
305MT JJ-3-305MT
307MT JJ-3-307MT
345 JJ-3-345
Chart 2
Air Cap
305MT,
307MT
345
Operation Manual
Example: DA － 300 － 3□□ － □□□
Fluid Tip Size
(mm)
0.8, 1.1, 1.4, 1.8
0.8, 1.1, 1.4, 1.8
0.8, 1.1, 1.4, 1.8
Tip Marking (mm)
0.8
1.1
1.4
1.8
Fluid Tip Size 0.8, 1.1, 1.4, 1.8 mm
Air Cap No. 305MT, 307MT, 345
Pattern Size Shape
250mm
Straight
300mm
Straight
320mm
Straight
Part Number
Lapped Set (Tip & Needle)
DA-430-0.8
DA-430-1.1
DA-430-1.4
DA-430-1.8
1
Typical Applications
Most conventional materials
Most conventional materials
Most conventional materials
