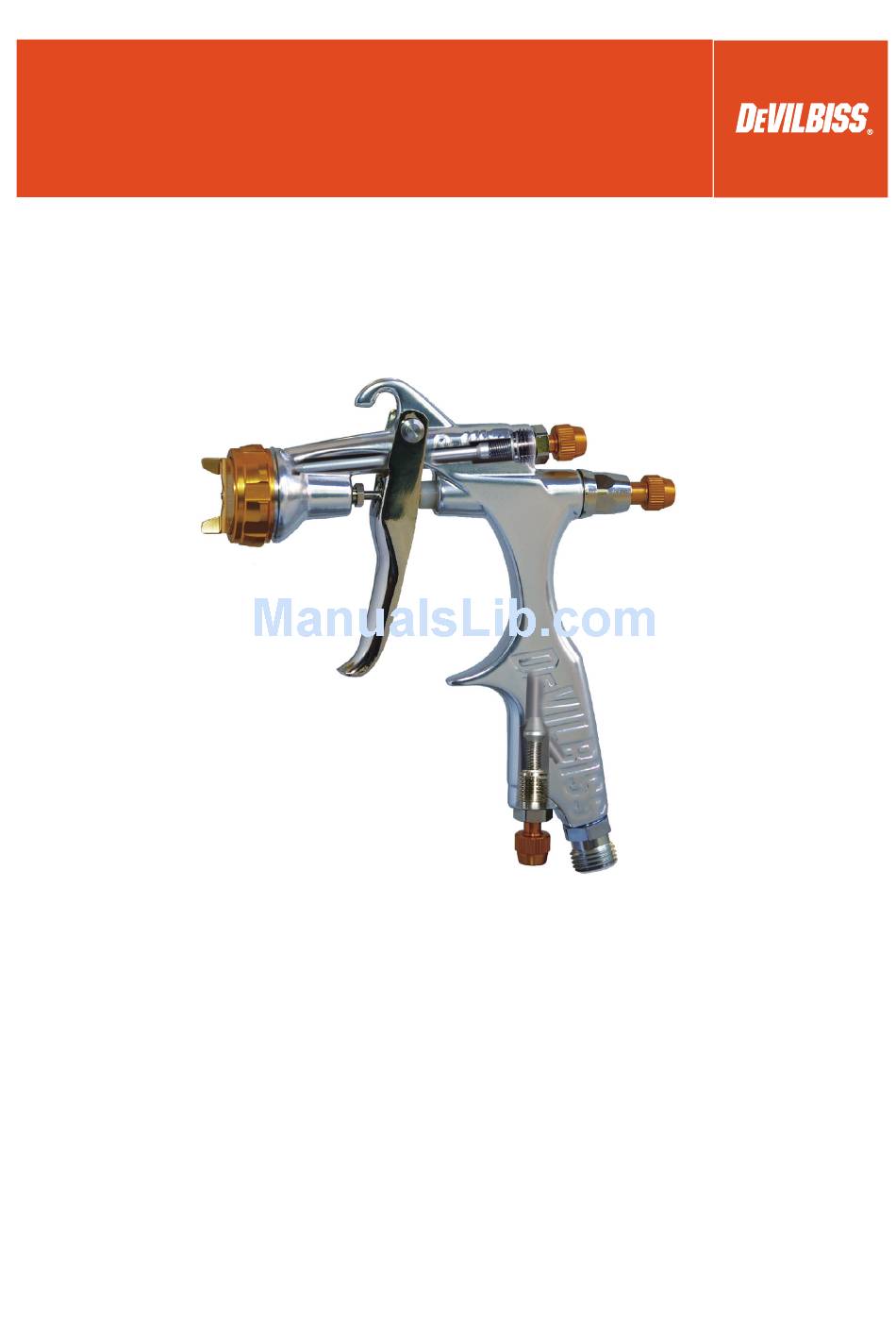

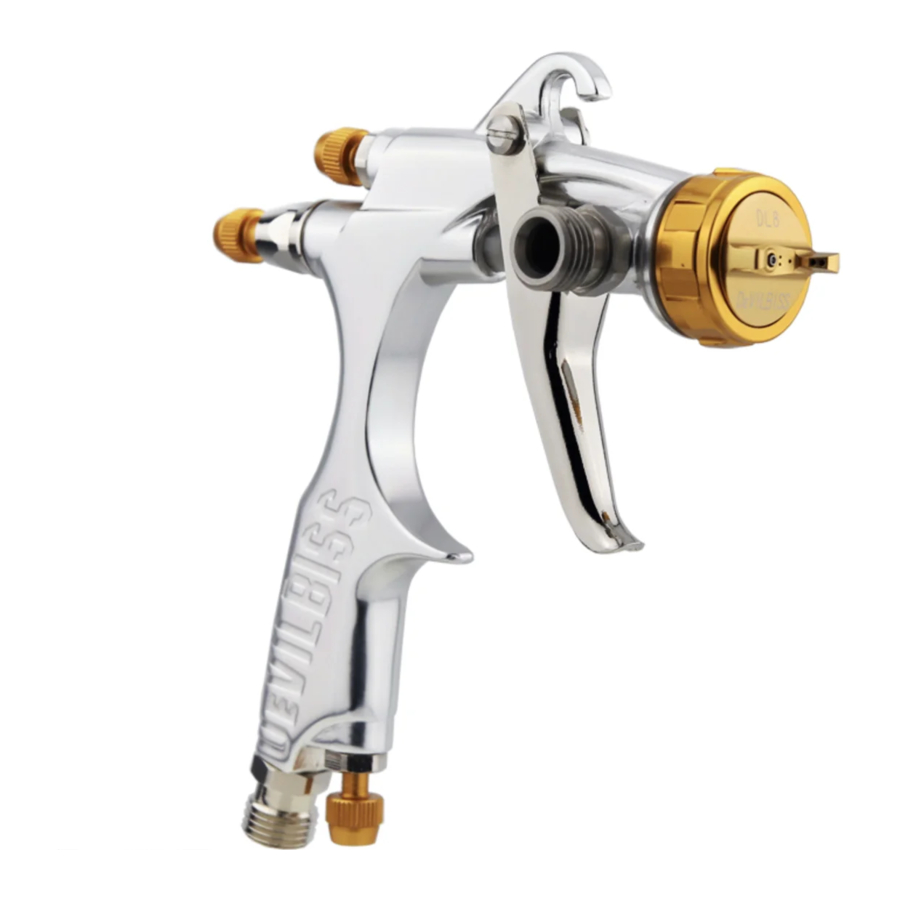

- Page 1 DEMI 2 Operation Manual Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment.
-
Page 2: Table Of Contents
DEMI2 Table of Contents MODELS ....................... 3 SPECIFICATIONS ..................3 PARTS LIST ....................4 SAFETY PRECAUTIONS ................5 INSTALLATION ..................... 6 OPERATION ....................6 PREVENTIVE MAINTENANCE ..............6 REPLACEMENT OF PARTS ................ 7 SERVICE CHECKS ..................8 ACCESSORIES ..................... 9... -
Page 3: Models
DEMI2 MODELS DEMI2 – Air CapNo. – Fluid Tip Size – Type of Feed G : Gravity (Ex.) : DEMI2-DL8-1.1-G ← (DL8 Air Cap - Size1.1mm - Gravity) SPECIFICATIONS Maximum Working Air Pressure: 0.69 MPa, Maximum Working Fluid Pressure: 0.69 MPa Weight:190g Fluid inlet : G1/4 Air inlet : G1/4... -
Page 4: Parts List
DEMI2 PARTS LIST Chart 3 Ref. Part Number Description DM2-6 Retaining Ring Assy. DM2-55-K5 Ring Seat Kit of 5 Refer to "Chart.1" Air Cap Refer to "Chart.2" Fluid Tip DM2-35 Paint Nipple(with Seat) DM2-44 Pattern Valve DM2-443 Air Seal Kit DM2-43 Air Valve DM2-25-K5... -
Page 5: Safety Precautions
DEMI2 SAFETY PRECAUTIONS This manual contains information that is important for you to know and understand. This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. Read and follow SAFETY PRECAUTIONS before using this equipment. ■ FIRE OR EXPLOSION HAZARD When spraying, adequate exhaust must be provided to keep air free of accumulations of flammable vapors which may cause fire or explosion. -
Page 6: Installation
DEMI2 INSTALLATION The air supplied to spray gun must be cleaned air which any water, oil and solid material removed. To set up the Mist Separator and Air Transformer near the gun is recommended. The use of air not cleaned may cause coating troubles. Connect fluid cup and air hoses tightly. -
Page 7: Replacement Of Parts
DEMI2 REPLACEMENT OF PARTS Before replacing gun parts, remove materials from the gun for cleaning. Then release the air pressure in the gun and disconnect air hoses. All repairs should be made on a clean flat surface. Use only appropriate tools indicated for replacement of parts. Fluid Tip (4) and Needle (11) It is recommended to replace Fluid Tip (4) and Needle (11) as a set. -
Page 8: Service Checks
DEMI2 SERVICE CHECKS Normal spray pattern problem Cause Correction Will not spray No pressure to gun. Check air and material lines. Adjust ing Screw (13) not properly adjusted. Adjust. Inproper spray pattern A,B : Material build up on the Air Cap or A,B : Clean the Air Cap or Fluid Fluid Tip. -
Page 9: Accessories
DEMI2 ACCESSORIES Part No. Description KG-250-DEMI Stainless Steel Gravity Cup with Stand for DEMI gun (250cc) SUS KG-250-FA-DEMI Gravity Cup with Stand for DEMI gun (250cc Free angle type) SUS KG-150-FA-DEMI Gravity Cup with Stand for DEMI gun (150cc Free angle type) SUS DAH-10 Air Hose Set (10m) DAH-20... - Page 10 DIVISION Ransburg Japan KK 15-5, Fukuura 1-chome, Kanazawa-ku, Yokohama, Kanagawa Japan 〒236-0004 TEL : +81-45-785-6434 / FAX : +81-45-785-6517 HP http://www.carlisleft.co.jp ©2017 Carlisle Fluid Technologies. ®D VILBISS is a registered trademark of Carlisle Fluid Technologies.
