Jøtul F 602 V2 Installation And Operating Instructions Manual page 13

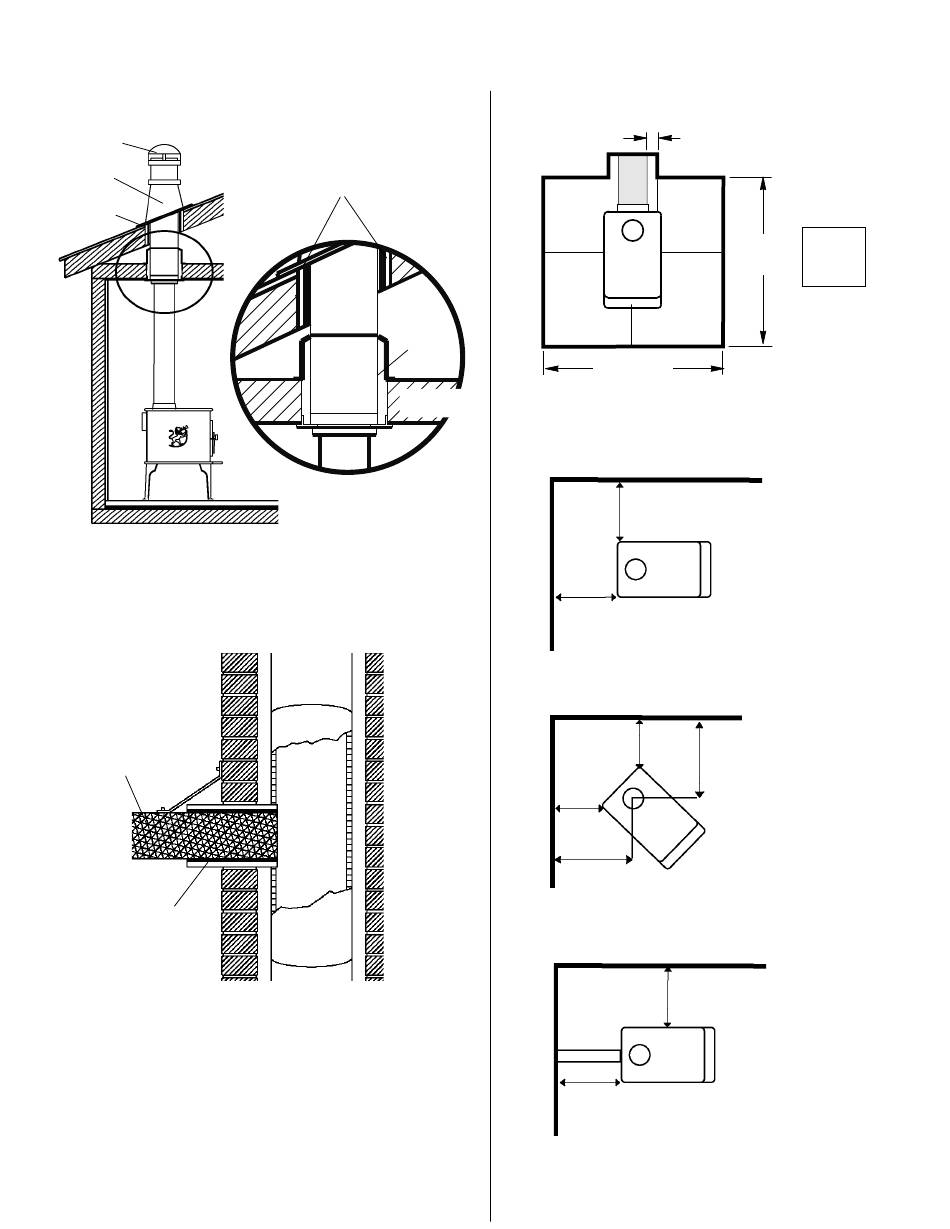

Fig. 5
Listed Cap
Storm
Collar
Flashing
Fig. 6.
Chimney
Connector
Pipe
Connector must be
flush with the inside
of the flue tile
Thimble
Manufacturer's specified clearance
to combustible construction
Listed
Chimney
Attic
Insulation
Shield
Ceiling
Support
Combustible
Package
Ceiling Joists
to
Stove
Floor
Protector
Flue Tile
Hearth Protection
Fig. 7
A
A
B
28 1/2"
(73 cm)
* (Measurements in centimeters pertain to Canada.)
Clearance to Adjacent Combustibles
Fig. 8
A
B
Fig. 9
A
A
C
C
B
Fig. 10
A
B
F 602 V2 3/20
2"
(5 cm)
CAN
43 1/2"
45 1/2"
A
(111 cm)
(116 cm)
A: 8" (20 cm)
B: 16" (46 cm)*
A: 21" (53,5cm)
B: 13,5 " (34,5 cm)
B
A: 13" (33,5 cm)
B: 20 1/4" (51,5cm)
A: 24" (61 cm)
B: 19" (48,3cm)
13
