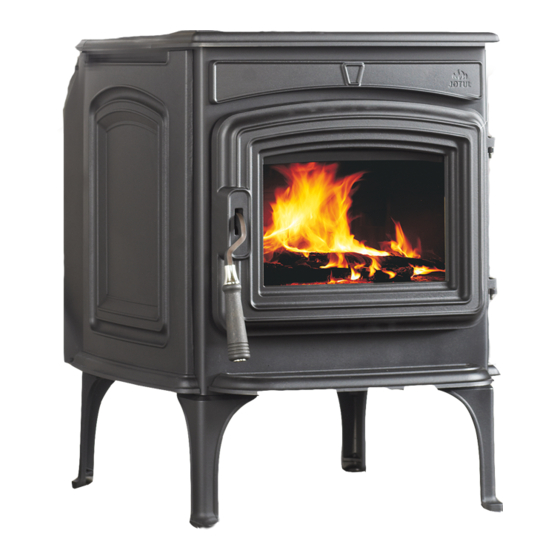

Jøtul F 45 Greenville
Installation and Operating Instructions
„ The Jøtul F 45 Greenville non-catalytic stove
is listed to burn solid wood only. Do not burn
any other fuels.
„ Read this entire manual before you install
and use this appliance.
„ Save these instructions for future reference
and make them available to anyone using or
servicing the fireplace insert.
„ This wood heater requires periodic inspection
and repair for proper operation. See this
manual for specific maintenance information.
It is against federal regulations to operate
this wood heater in a manner inconsistent
with the operating instructions in this
owner's manual.
for USA and Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 45 Greenville and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jøtul F 45 Greenville

Summary of Contents for Jøtul F 45 Greenville

  • Page 1 Jøtul F 45 Greenville Installation and Operating Instructions for USA and Canada „ The Jøtul F 45 Greenville non-catalytic stove is listed to burn solid wood only. Do not burn any other fuels. „ Read this entire manual before you install and use this appliance.

  • Page 2: Table Of Contents

    139575 Rev_08 F 45 9/17 Jøtul F 45 Greenville Table of Contents Accessories Accessories ................... 2 Standards and Safety Notices Stove Gloves, pair - #157363 Standards / Codes ................3 Flame-retardant, full length, Black. Combustion Specifications ............3 Safety Notices .................. 4 Spark Screen - #157638 1.0 Installation...

  • Page 3: Standards / Codes

    139575 Rev_08 F 45 9/17 Standards WARNING ! The Jøtul F 45 Greenville non-catalytic heater has been THIS WOOD HEATER HAS A MANUFACTURER- tested and listed to: SET MINIMUM LOW BURN RATE THAT MUST U.S: ANSI/UL 1482-2011 and ANSI/UL 737-2011 NOT BE ALTERED.

  • Page 4: Safety Notices

    139575 Rev_08 F 45 9/17 Safety Notices • BURN SOLID, NATURAL WOOD FUEL ONLY. DO NOT Installation Tools Required, but not BURN ANY OTHER FUEL. limited to: • DO NOT USE CHEMICALS OR FLUIDS TO START A FIRE. • Measuring Tape DO NOT BURN GARBAGE OR FLAMABLE FUELS.

  • Page 5: Installation

    139575 Rev_08 F 45 9/17 1.0 Installation 1.1 Unpack the Stove If this solid fuel room heater is not properly installed, a house fire may result. For your safety, follow the installation Inspect the stove for damage. Contact your dealer immediately if any damage is found.

  • Page 6: Flue Collar Orientation

    139575 Rev_08 F 45 9/17 1.5 Flue Collar Orientation The Flue Collar is oriented in the Top Exit position. To change orientation to Rear Exit: 1. Remove the Rear Shroud from the stove with removal of the four sheet metal screws at the top and bottom of the shroud sides.

  • Page 7: Chimney Requirements

    139575 Rev_08 F 45 9/17 2.0 Chimney Requirements 2.1 Masonry Chimneys There are two types of approved chimneys: 1. A code-approved masonry chimney with a ceramic tile Follow these guidelines when installing the Jøtul F 45 into or listed steel flue liner. a masonry chimney: 2.

  • Page 8: Chimney Height

    139575 Rev_08 F 45 9/17 2.3 Chimney Height 2’ The chimney must be at least 3 feet (92 cm) higher than At least 2 ft. 61 cm (61 cm) the highest point where it passes through the roof and at 10’...

  • Page 9: Connecting To The Chimney

    139575 Rev_08 F 45 9/17 3.2 Hearthmount into a Masonry In Canada Fireplace The installation must conform to CAN/CSA-B365, Installation Code for Solid Fuel Burning Appliances and The Jøtul F 45 on standard legs may be installed into a Equipment. Before proceeding be sure to consult your local masonry fireplace with a minimum opening height of building inspector.

  • Page 10: Prefabricated Chimneys

    139575 Rev_08 F 45 9/17 3.4 Mobile Home Installation The cross-sectional area of the flue of a chimney with one or more walls exposed to the outside below the roofline The Jøtul F 45 is approved for installation in manufactured may be no more than two times the cross-sectional area of mobile homes provided the following requirements are the stove flue collar.

  • Page 11: Clearances To Combustibles

    139575 Rev_08 F 45 9/17 4.0 Clearance to Combustibles 2” 5 cm 2” 5 cm 4.1 Floor Protection The Bottom Heat Shield provided with the stove must be installed unless the stove is installed on concrete poured on earth. See instructions in the Appendix on page 26. The Jøtul F 45 also requires one of the following forms of 44”...

  • Page 12: Alcove Installation

    139575 Rev_08 F 45 9/17 17” 7” 43.2 cm 17.8 cm Maximum 48” 48” 121.9 cm 121.9 cm 6” 6” 14” 14” 15.2 cm 15.2 cm 35.6 cm 35.6 cm 34 1/4” 50 1/4” 87 cm 127.6 cm Figure 11. Alcove Clearances. Figure 12.

  • Page 13: Clearance Diagrams

    139575 Rev_08 F 45 9/17 4.6 Jøtul F 45 Greenville Clearance Specifications PROTECTED WALLS UNPROTECTED WALLS PER NFPA211 OR CAN/CSA -B365-M93 SIDE REAR CORNER SIDE REAR CORNER Single Wall Connector 15” / 381 mm 16” / 406 mm 11” / 280 mm 5”...

  • Page 14: Operation

    139575 Rev_08 F 45 9/17 5.0 Operation We recommend using a moisture meter to determine the moisture content of your wood. For purposes of home heating, your fuel should have a moisture content between Please read the following section before building the first 12 - 20%.

  • Page 15: F 45 Functionality

    139575 Rev_08 F 45 9/17 5.4 How your Jøtul F 45 works When used with dry wood and a well-drafting chimney system, modern non-catalytic wood stoves burn fuel efficiently by the precise control and delivery of primary and secondary air to the fire. Primary Air is drawn into a front inlet in the stove bot- tom and directed through a regulator shutter under the front door before entering the lower fire chamber.

  • Page 16: Break-In Procedure

    139575 Rev_08 F 45 9/17 5.7 Break-In Procedure 5.8 Starting and Maintaining a Fire Although your Jøtul F 45 is constructed of welded, 3/16” Burn only solid wood directly on the bottom of the steel plate, it also incorporates cast iron components. This stove firechamber.

  • Page 17: Adding Fuel

    139575 Rev_08 F 45 9/17 5.9 Adding Fuel Follow this procedure when reloading the stove while it is 5.11 Creosote Formation and the still hot and a bed of hot embers remains: Need for Removal • Always wear gloves when tending to the stove. When wood is burned slowly, it produces tar and other vapors that combine with moisture to form creosote.

  • Page 18: Maintenance

    139575 Rev_08 F 45 9/17 6.0 Maintenance 6.2 Glass Care Cleaning 6.1 Door Latch Adjustment On occasion it will be necessary to clean the carbon deposits Over time, as the door gasket becomes compressed, it may and fly ash off of the glass. If these deposits are allowed be necessary to adjust the door latch in order to maintain to remain on the glass for an extended period of time, the the integrity of the door seal.

  • Page 19: Gasket Replacement

    139575 Rev_08 F 45 9/17 6.4 Gasket Replacement 6.5 Glass Replacement Tools needed: Tools needed: • needle nose pliers • 4mm hex key • 4mm hex key • wire brush • gasket cement 1. Lift the door gasket over the glass clips enough to expose the clip button head screws.

  • Page 20: Chimney System

    139575 Rev_08 F 45 9/17 6.6 Chimney System The Jøtul F 45 is designed to burn cleanly and efficiently when used according to the guidelines in this manual. In order to maintain proper performance, you should inspect the chimney and chimney connector at the beginning of each heating season and then every other month during the heating season.

  • Page 21: Appendix

    139575 Rev_08 F 45 9/17 7.0 Appendix 2. Attach the Air Deflector to Rear Shroud: See figs. 21 and 23 /#3. Use pliers to bend the deflector tabs at the perforation lines as shown. Attach the deflector to the interior side of the rear shroud using two #8 X 12 sheet metal screws from the exterior side.
  • Page 22 139575 Rev_08 F 45 9/17 Figure 21. Blower Parts Identification. Figure 23. Blower Parts Identification Rear Shroud Capture the bracket between the leg nut and the Lower Air Deflector bracket nut. Snapstat Blower Assembly Snapstat Bracket Blower Mounting Bracket Air Deflector M6 Flange Hex Nut (3) M6 Wingnut (2) Control Box Assembly...

  • Page 23: Outside Air Kit Installation

    139575 Rev_08 F 45 9/17 7.2 Outside Air Kit 157637 Contents: • Outside Air Manifold Tools Required: • 10 mm and 1/4 “ socket drivers Remove four nuts and use • safety glasses to attach the manifold. • work gloves You will need to acquire the following additional components available at any hardware supplier •...

  • Page 24: Mobile Home Floor Bracket

    139575 Rev_08 F 45 9/17 7.4 Mobile Home Floor Bracket Kit 157321 Contents: Floor Brackets , (2) Fastener Required: 3/8” dia. lag screw 1. Determine the final location of the stove and use the leveller screws to plumb and level the stove. 2.

  • Page 25: Illustrated Part List

    139575 Rev_08 F 45 9/17 8.0 Jøtul F 45 Greenville Illustrated Parts Only use replacement parts provided through your authorized Jøtul dealer. Figure 28. F 45 Greenville Illustrated Parts...
  • Page 26 139575 Rev_08 F 45 9/17 8.1 Jøtul F 45 Greenville Part List Description Part Number Description Part Number Baffle Weldment 224921 Screw, Button Head Socket - M6 x 10 Blk 117978 Blanket, Ceramic Fiber 225925 Glass Clip, 3 ” (three)

  • Page 27: Warranty Statement

    139575 Rev_08 F 45 9/17 10.0 Jøtul F 45 Greenville 3) Damage, including damage to enamel surfaces, caused by improper operation, over-firing, and/or misuse. Improper operation, such as Warranty burning the stove with the ash door open, can damage the stove.
  • Page 28 139575 Rev_08 F 45 9/17 Quality We appreciate your trust in welcoming our product into your home and invite your comment and appraisal of our efforts to provide you with the finest in home hearth products. Jøtul pursues a policy of continuous product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in this manual.
