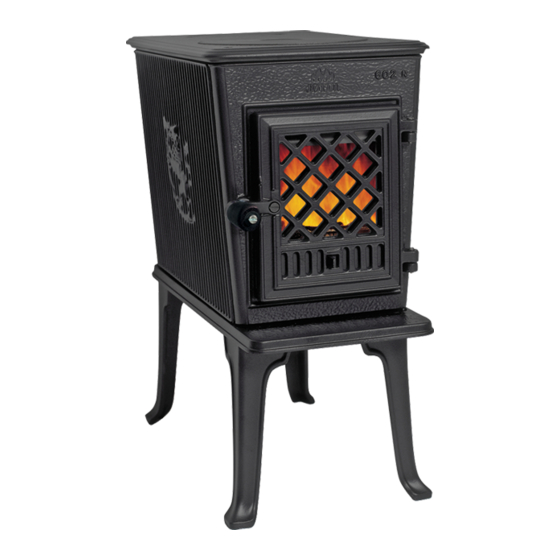

Jøtul F 602 CB V2 Installation Planning Manual
  1. Manuals
  2. Brands
  3. Jøtul Manuals
  4. Wood stove
  5. F 602 CB
  6. Installation planning manual

Jøtul F 602 CB V2 Installation Planning Manual

Hide thumbs Also See for F 602 CB V2:
Table of Contents

Advertisement

Quick Links

INSTALLATION
PLANNING
Parts
GUIDE
Price Book
TIMELESS NORWEGIAN CRAFT
Accessories
WOOD
PRODUCTS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 602 CB V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jøtul F 602 CB V2

Summary of Contents for Jøtul F 602 CB V2

  • Page 1 INSTALLATION PLANNING Parts GUIDE Price Book TIMELESS NORWEGIAN CRAFT Accessories WOOD PRODUCTS...
  • Page 2 e wish you success... This booklet is intended to provide you with a solid base of information with which to plan the successful installation of you new Jøtul fireplace. Within these pages, you will find complete specifications for each Jøtul wood-burning heater, along with general guidelines to help ensure a safe, effective, and trouble-free...

  • Page 3: Table Of Contents

    Contents General Information Safety Standards General Considerations Chimney Requirements Freestanding Cast Iron Stoves Jøtul F 602 V2 Jøtul F 500 V3 Oslo Freestanding Steel Stoves Jøtul F 45 V2 Greenville Jøtul F 55 V2 Carrabasset Chimney Connector Clearances...

  • Page 4: General Information

    General Information Professional Installation We at Jøtul North America are dedicated to manufacturing the finest quality hearth products that you can be assured will provide many years of safe, dependable service. To ensure your satisfaction, we recommend that whenever possible our products be installed and serviced by hearth professionals who are certified by the National Fireplace Institute (NFI) or, in Canada,...

  • Page 5: General Considerations

    Planning Your Installation Building Codes and Choosing Chimney Requirements Installation Standards the Right Heater Often, the stove location may be dictated by the location of an Your city, town, county or province The ability of one of our stoves to heat existing chimney.

  • Page 6: Chimney Requirements

    Chimney Requirements Masonry Chimneys Chimney Connection Chimney Height A masonry chimney should conform to Single wall steel stovepipe having Whether masonry or prefabricated the following guidelines: a minimum 24 gauge thickness is steel, any chimney must be at least suitable for connecting your heater 3 feet higher than the highest point •...
  • Page 7 2” Min. Chimney Wall Pass-throughs Clearance to brick System A: and combustibles Minimum 3 1/2 in. thick brick masonry Follow these guidelines for passing wall framed into combustible wall a chimney connector through a 12” with a minimum of 12 in. brick separa- combustible wall.
  • Page 8 Chimney Hearthmount into a Masonry Fireplace Connections Your stove may be installed into a masonry fireplace in accordance with Masonry Chimney local building codes. To enable your Approved stainless stove to fit under a variety of lintel steel chimney liner Connection heights, an optional short leg kit is available for the F 500 stove which will...
  • Page 9 Clearance Wall Shielding Floor protection dimensions vary Guidelines Approved wall shielding materials include depending upon the size of the unit minimum 24 gauge sheet metal, 1/2 inch and whether or not it has a side load noncombustible insulation board, or brick door.

  • Page 10: Jøtul F 602 V2

    Jøtul F 602 CB V2 18 7/8” 12 5/8” 4 1/8” Heat Output Range: 15,200 to 49,576 BTU/hr. Max. Heat Output: 28,000 BTU/hr. Heating Capacity: Up to 800 sq. ft. 26 1/2” 21 5/8” 25 3/16” Maximum Burn Time: Up to 5 hours...
  • Page 11 Jøtul F 602 CB V2 Stove Clearance Diagrams PROTECTED WALLS UNPROTECTED WALLS PER NFPA211 OR CAN/CSA- B365-M93 CORNER TO FRONT FLOOR CORNER TO FRONT FLOOR FRONT FLOOR PROTECTION FRONT FLOOR PROTECTION SIDE REAR CORNER SIDE REAR CORNER PROTECTION** WIDTH** PROTECTION**...

  • Page 12: Jøtul F 500 V3 Oslo

    Jøtul F 500 Oslo V3 24 3/4 ’’ Heat Output Range: 13,200 to 37,000 BTU/hr. (3.9-10.8 kW) Max. Heat Output: Up to 70,000 BTU/hr. Heating Capacity: Up to 2000 sq. ft. 28 1/2” 28 1/2’’ 25’’ Maximum Burn Time: Up to 9 hours EPA Efficiency: HHV: 78.40% LHV: 84.73%...
  • Page 13 Jøtul F 500 Oslo V3 Stove Clearance Diagrams PROTECTED WALLS UNPROTECTED WALLS PER NFPA211 OR CAN/CSA- B365-M93 CORNER TO FRONT FLOOR CORNER TO FRONT FLOOR FRONT FLOOR PROTECTION FRONT FLOOR PROTECTION SIDE REAR CORNER* PROTECTION** WIDTH** SIDE REAR CORNER* PROTECTION** WIDTH** Single Wall Pipe US: 65 1/2''...

  • Page 14: Jøtul F 45 V2 Greenville

    25 7/8” Jøtul F 45 V2 Greenville 22 1/4” Heat Output Range: 16,748 to 58,657 BTU/hr. Max. Heat Output: 55,000 BTU/hr. 12’’ x 8’’ Heating Capacity: Up to 1,800 sq. ft. Viewing Area 29 3/4” Maximum Burn Time: Up to 10 hours 29 1/2”...
  • Page 15 Jøtul F 45 V2 Greenville Stove Clearance Diagrams PROTECTED WALLS UNPROTECTED WALLS PER NFPA211 OR CAN/CSA- B365-M93 CORNER TO FRONT FLOOR CORNER TO FRONT FLOOR SIDE REAR CORNER SIDE REAR CORNER FRONT FLOOR PROTECTION FRONT FLOOR PROTECTION PROTECTION** WIDTH** PROTECTION** WIDTH** Single Wall Connector US: 65 1/2''...

  • Page 16: Jøtul F 55 V2 Carrabasset

    Jøtul F 55 V2 Carrabassett 27 5/8” 27 5/8” (702 mm) 27 1/4” 27 1/4” Heat Output Range: 18,962 to 84,311 BTU/hr. (692 mm) Heating Capacity: Up to 2,300 sq. ft. Maximum Burn Time: Up to 10 hours EPA Efficiency: 30 5/8”...
  • Page 17 Jøtul F 55 V2 Carrabassett Stove Clearance Diagrams PROTECTED WALLS UNPROTECTED WALLS PER NFPA211 OR CAN/CSA- B365-M93 CORNER TO FRONT FLOOR CORNER TO FRONT FLOOR SIDE REAR CORNER SIDE REAR CORNER FRONT FLOOR PROTECTION FRONT FLOOR PROTECTION PROTECTION** WIDTH** PROTECTION** WIDTH** Single Wall Connector US: 66 1/8''...

  • Page 18: Chimney Connector Clearances

    PROTECTED Chimney Connector UNPROTECTED SURFACE Clearances SURFACE per NFPA 211 or CAN/CSA B-365-M93 Single Wall 18’’/460 mm 9’’/ 230 mm Double Wall Mfg’s Listing Mfg’s Listing F 602 Chimney Connector Diagram Single Wall CB V2* 18” / 460 mm 6” / 150 mm Double Wall Mfg’s Listing Mfg’s Listing...
  • Page 19 This page is intentionally left blank...
  • Page 20 Jøtul has a policy of constant improvement and upgrading. Products therefore may differ in specification, design, material, cost or dimensions at any time without prior notice. April 2020-Rev. C...
