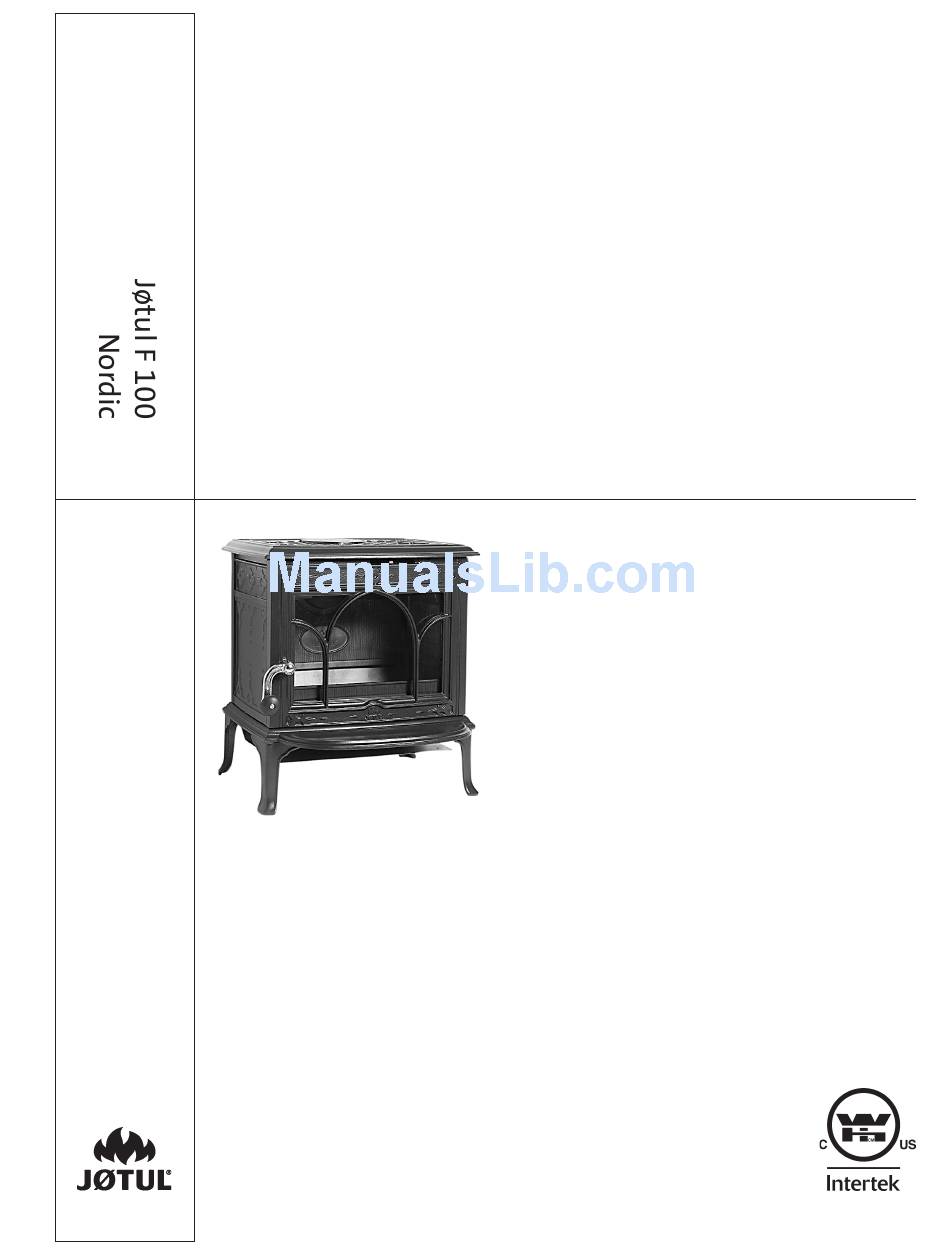

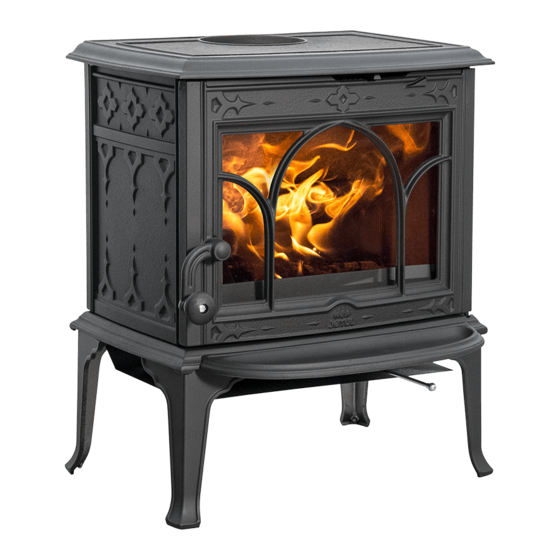

- Page 1 Jøtul F 100 Nordic Woodburning Stove Installation and Operating Instructions Keep these instructions for future reference.
-
Page 2: Table Of Contents
139678-R01 F 100 May, 2015 Table of Contents Standards and Safety Notices 20 3/4” Standards ..................3 527 mm Combustion Specifications ............3 Codes .....................3 Safety Notices ................4 1.0 Installation Flue Collar Installation ...............4 Ash Lip ...................5 22 1/2” Door Knob ..................5 570 mm Chimney Connector ..............5 2.0 Chimney Requirements... -
Page 3: Standards
See Sect. 5.0 of this manual for important information Standards regarding the safe, proper, and most efficient operation of your stove. The Jøtul F 100 Nordic solid fuel heater has been tested and listed to : Check Building Codes U.S. Standards: ANSI/UL 737 and ANSI/UL 1482... -
Page 4: Safety Notices
139678-R01 F 100 May, 2015 Safety Notices 1.0 Installation • BURN SOLID, NATURAL WOOD FUEL ONLY. DO NOT If this solid fuel room heater is not properly installed, BURN ANY OTHER FUEL. a house fire may result. For your safety, follow the installation directions. -
Page 5: Ash Lip
139678-R01 F 100 May, 2015 Follow these guidelines regarding chimney connector construction: • Do not use chimney connector as a chimney. It is Cut at these intended only for use as a connection device. points • Each connector section must be oriented with the male (crimped) end pointing toward the stove. -
Page 6: Chimney Requirements
139678-R01 F 100 May, 2015 between the flue liner and chimney wall. 2.0 Chimney Requirements • The fireclay flue liner must have a nominal size of 8” X 8” (20 cm x 20 cm), and should not be larger than There are two types of chimneys suitable for the Jøtul 8”X 12”... -
Page 7: Wall Pass-Throughs
139678-R01 F 100 May, 2015 Chimneys shorter than 14 feet (4.27 m) may not provide adequate draft. Inadequate draft can result in smoke the pass-through area ( around the chimney connector), spillage when loading the stove, or when the door is a minimum 12”... -
Page 8: Connecting To The Chimney
139678-R01 F 100 May, 2015 3.0 Connecting to the Chimney Masonry Chimney Hearthmount into a Masonry Fireplace When installing a Jøtul F 100 into a masonry chimney The Jøtul F 100 may be installed into a masonry through a “thimble” (the opening through the chimney fireplace with a minimum opening height of 22 1/2”... -
Page 9: Prefabricated Chimneys
139678-R01 F 100 May, 2015 4.0 Clearance to Combustibles Floor Protection The Jøtul F 100 requires one of the following forms of Prefabricated Chimneys hearth protection: When connecting the Jøtul F 100 to a prefabricated 1. Any UL, ULC or WH listed hearth board. (No bottom metal chimney always follow the pipe manufacturer’s heat shield required). -
Page 10: Clearances To Walls And Ceilings
139678-R01 F 100 May, 2015 Clearances to Walls and Ceilings Alcove Installation The clearances listed and diagramed in this manual The Jøtul F 100 can be installed in an Alcove as diagrammed have been tested to UL and ULC standards and are the in figures 10 and 11. - Page 11 139678-R01 F 100 May, 2015 This page is intentionally blank.
-
Page 12: Clearance Chart
139678-R01 F 100 May, 2015 Jøtul F 100 Clearance Chart All clearances established with included stove rear heat shield installed. Stove Unprotected Surface Protected Surface Clearances Installation per NFPA211 or CAN/CSA -B365-M93 Side Rear Corner* Side Rear Corner* Single-wall Connector 15”... -
Page 13: Clearance Diagrams
139678-R01 F 100 May, 2015 Protected Surface Unprotected Surface Parallel To The Wall Parallel To The Wall PER NFPA 211 or CAN/CSA-B365 Important: Connector heatshields and double wall pipe must be a listed product. Always follow the manufacturer’s instructions. Unprotected Surface Protected Surface Corner Installation Corner Installation... -
Page 14: Operation
EPA qualified tested efficiency values are not currently however, very inefficiently. Most of its heat value will be available for the Jøtul F 100 Nordic. The EPA default lost to driving water out of the wood. Worse, that moisture efficiency for non-catalytic wood heaters is 63% per Federal will condense as creosote in the relatively cool chimney Register 40 CFR Part 60, Subpart AAA. -
Page 15: Break-In Procedure
139678-R01 F 100 May, 2015 Secondary air allows combustion of volatile gas and other by-products of primary combustion that would otherwise enter the atmosphere unburned. This unregulated air is preheated as it passes over the back of the stove and through a stainless steel manifold at the rear of the firebox. -
Page 16: Starting / Maintaining The Fire
139678-R01 F 100 May, 2015 5.6 Starting and Maintaining a Fire Creosote and Soot Formation and Burn only solid wood directly on the bottom grate of the the Need for Removal stove. Do not elevate the fire in any way. When wood is burned slowly, it produces tar and other Traditional Fire Building organic vapors which combine with expelled moisture... -
Page 17: Maintenance
139678-R01 F 100 May, 2015 Maintenance Ash Removal Glass Removal or Replacement Ash removal will be required periodically, depending The glass may be removed with the door in place. on how frequently the stove is used. Avoid letting 1. Hold the glass in place while you remove the glass clips the ash accumulate to spill over the Ash Fettle. -
Page 18: General Maintenance
139678-R01 F 100 May, 2015 7.0 General Maintenance 8.0 Accessories As with your car, regular maintenance will prolong the life Stove-Top Thermometer (# 5002) of your stove and ensure satisfactory performance. Jøtul recommends the use of a magnetic stove-top Enamel Care: thermometer to monitor the surface temperature of the •... -
Page 19: Warranty
139678-R01 F 100 May, 2015 9.0 Jøtul North American This warranty is not transferable and is extended only to, and is solely for the benefit of, the original retail purchaser Woodburning Product of the Jøtul or Scan Stove or Fireplace Insert. This paragraph sets forth the sole remedy available under this warranty in Limited Lifetime Warranty the event of any defect in the Jøtul Scan Stove or Fireplace... - Page 20 139678-R01 F 100 May, 2015 Exclusions, cont’d. 7. Damage caused by unauthorized modification, use The dollar value of JØTUL’s liability for breach of this or repair. warranty shall be limited exclusively to the cost of 8. Costs incurred by travel time and/or loss of service. furnishing a replacement component.
- Page 21 139678-R01 F 100 May, 2015 This page is intentionally blank.
-
Page 22: Illustrated Parts List
139678-R01 F 100 May, 2015 10.0 Jøtul F 100 Illustrated Parts Breackdown... - Page 23 139678-R01 F 100 May, 2015 Pos. no. Description Dim./Spec. Side plate , left Cast iron Gasket (for rear plate) LD 250-2 Ø6,4x750mm Cover for air manifold Cast iron Only use replacement parts Heat shield rear provided through your Smoke outlet cover Cast iron authorized Jøtul dealer.
- Page 24 139678-R01 F 100 May, 2015 We appreciate your trust in welcoming our product into your home and invite your comment and appraisal of our efforts to provide you with the finest in home hearth products. Jøtul North America, Inc. pursues a policy of continuous product development. Products may therefore differ in specification, colour and type of accessories from those illustrated and described in this manual.
