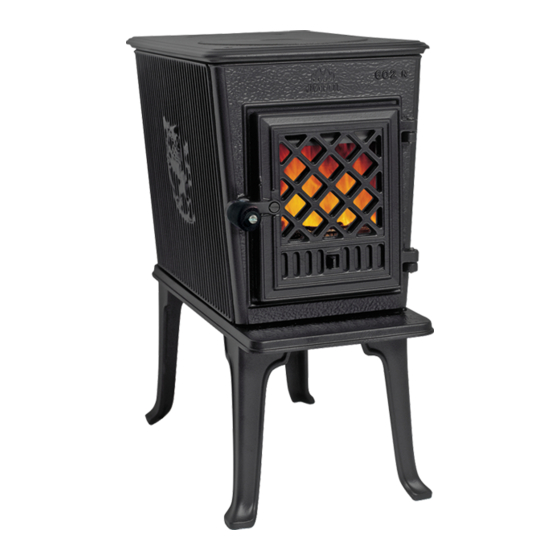

Jøtul F 602 V2
Non-catalytic Wood Heater
Installation and Operating Instructions
for the United States and Canada
„ The Jøtul F 602 V2 non-catalytic stove is
listed to burn solid wood only. Do not
burn any other fuels.
„ Read this entire manual before you
install and use this appliance.
„ Save these instructions for future
reference and make them available to
anyone using or servicing the stove.
„ This wood heater requires periodic
inspection and repair for proper
operation. See this manual for specific
maintenance information. It is against
federal regulations to operate this
wood heater in a manner inconsistent
with the operating instructions in this
owner's manual.
Advertisement
Table of Contents
Related Manuals for Jøtul F 602 V2
Summary of Contents for Jøtul F 602 V2
- Page 1 Non-catalytic Wood Heater Installation and Operating Instructions for the United States and Canada „ The Jøtul F 602 V2 non-catalytic stove is listed to burn solid wood only. Do not burn any other fuels. „ Read this entire manual before you install and use this appliance.
-
Page 2: Table Of Contents
F 602 V2 3/20 Table of Contents Standards The Jøtul F 602 V2 solid fuel heater has been tested and Combustion Specifications, listed to : Building Codes, ..............3 U.S. Standards: ANSI/UL 1482. Canadian Standards: 1.0 Safety Notices ..............3 CAN/ULC-S627-M00 and CAN/ULC-S628-M93 2.0 Initial Assembly... -
Page 3: Combustion Specifications
When installing, operating and maintaining your some cases, the optional Fresh Air Adaptor #156408 can be used Jøtul F 602 V2 woodstove, follow the guidelines presented to alleviate this condition. The chimney and building, however, in these instructions, and make them available to anyone always work together as a system - provision of outside air, using or servicing the stove. -
Page 4: Initial Assembly
F 602 V2 3/20 2.0 Initial Assembly or roof space, closet or other concealed space, or through a floor or ceiling. All sections of the chimney connectors must 2.1 Inspect Contents be accessible for cleaning. Where passage through a wall or partition of combustible construction is desired, the installation Inspect the stove for damage. -
Page 5: Chimney Requirements
3.3 Chimney Requirements A chimney, whether masonry or prefabricated metal, must be the There are two types of chimneys suitable for the Jøtul F 602 V2: required height above the roof or other obstruction for safety and 1. A code-approved masonry chimney with a ceramic tile or listed for proper draft function. -
Page 6: Floor Protection
When installed with a listed double wall pipe and with wall The floor protection must have a minimum R value of 0.45. protection, the Jøtul F 602 V2 can be placed in an alcove that Warning! Never put any type of floor protection on top of has a minimum height of 96”... -
Page 7: Operation 5.1 Combustion Efficiency
Securely cover the wood to ensure it remains as dry as 5.1 Combustion Efficiency possible. The Jøtul F 602 V2 has an EPA tested High Heating Value Check Moisture Content (HHV) efficiency rate of 70%. There are, however, aspects of... -
Page 8: Air Flow And Control
5.4 Air Flow and Control 5.5 New Stove Break-In Procedure The Jøtul F 602 V2 is constructed of cast iron and stove furnace Your Jøtul F 602 V2 is designed to support efficient cement. Cast iron, while very durable, expands and contracts as it combustion and heat transfer by directing air through the is heated and cooled. -
Page 9: Adding Fuel
F 602 V2 3/20 Creosote and Soot Formation and the Need • Now you can add a couple more quarter-splits and let the fire become established for several minutes before for Removal adjusting the air valve position or adding more fuel. -
Page 10: Maintenance
• Press the gasket firmly in place. • Peel off the remaining adhesive backing and apply the The Jøtul F 602 V2 is designed to burn cleanly and efficiently remaining gasket, again leaving a “tail” at the upper when used according to the guidelines in this manual. In left corner. -
Page 11: Illustrations 7.1 Clearance Chart
F 602 V2 3/20 7.0 Jøtul F 602 V2 Clearances Table Stove clearances Unprotected surfaces Protected surfaces (NFPA 211) Top vent/vertical Side Rear Corner Side Rear Corner Single wall pipe 21” 13.5” 13” 13” 11” 9” W/out rear heatshield 535mm... -
Page 12: Figures
F 602 V2 3/20 Fig. 2. Fig. 1. 12 5/8” 320mm Chimney Connector points toward stove. Flue Gas Toward Stove Direction 12 1/2” 317mm Fig. 3. 21 1/4” 18 7/8” 19 5/16” 21 1/4” Fig. 4. At least 2 ft. - Page 13 F 602 V2 3/20 Fig. 5 Hearth Protection 2” Fig. 7 Listed Cap (5 cm) Storm Manufacturer’s specified clearance Collar to combustible construction Flashing 43 1/2” 45 1/2” (111 cm) (116 cm) Listed Chimney Attic Insulation A: 8” (20 cm) Shield B: 16”...
- Page 14 F 602 V2 3/20 Alcove - double wall pipe and Fig. 11 Rear Heat Shield to reduce clearance Fig. 14 Single wall pipe, top exit only wall protection A: 41” - (104 cm) A: 21” - (53,5 cm) B: 8” - (20,5cm) B: 11”...
- Page 15 F 602 V2 3/20 Parallel installation in a corner with Controls Fig. 17 Fig. 20 wall shield Combustible wall Wall Shield • Must be 1” off the The wall wall and 1” off the shield must floor. extend a • With single wall...
- Page 16 F 602 V2 3/20 Fig.21 F602 V2 Exploded Diagram...
-
Page 17: Part List
F 602 V2 3/20 9.0 Appendix A 8.0 Illustrated Partlist Alternate floor protection Pos Description .............Part Number All floor protection materials must be non-combustible ie. Metal, Cook Plate............100898 brick, stone, mineral fiber boards). Any combustible material may Gasket, LD2-375..........225695 not be used. -
Page 18: F602 V2 Start-Up And Refueling
F 602 V2 3/20 9.1 F 602 V2 Start-Up and Refueling Follow these directions to get the best emissions 4. After 1 minute, set the air control to the medium position performance from your F 602 V2: which is in the center of the travel range. -
Page 19: Warranty
F 602 V2 3/20 10.0 Jøtul F 602 V2 The warranty period for any replaced component will be the remaining unexpired portion of the warranty period for the Warranty original component. Please retain your dated sales receipt in your records as proof A. - Page 20 F 602 V2 3/20 An authorized installer may have been provided with IN NO EVENT SHALL JØTUL, ITS PARENT COMPANY, certain information related particularly to the Jøtul or SHAREHOLDERS, AFFILIATES, OFFICERS, EMPLOYEES, AGENTS Scan Stove or Fireplace; however, no authorized installer...
- Page 21 F 602 V2 3/20 This page is intentionally blank.
- Page 22 F 602 V2 3/20 This page is intentionally blank.
- Page 23 F 602 V2 3/20 This page is intentionally blank.
- Page 24 You may also wish to attach your sales receipt to this manual for future reference. Model: Jøtul F 602 V2 Serial Number: Purchase Date: Dealer: Jøtul North America Inc.
