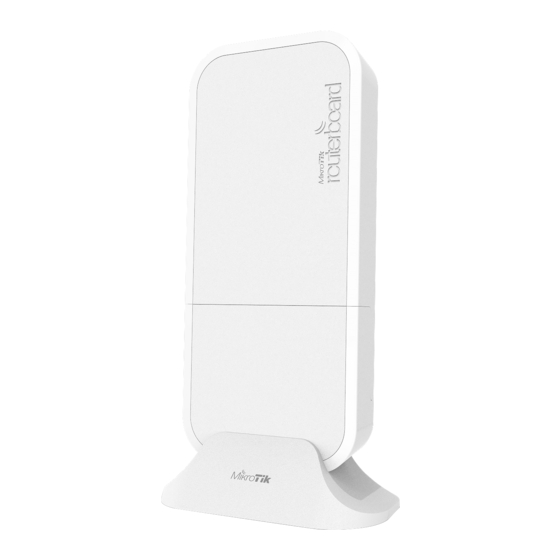

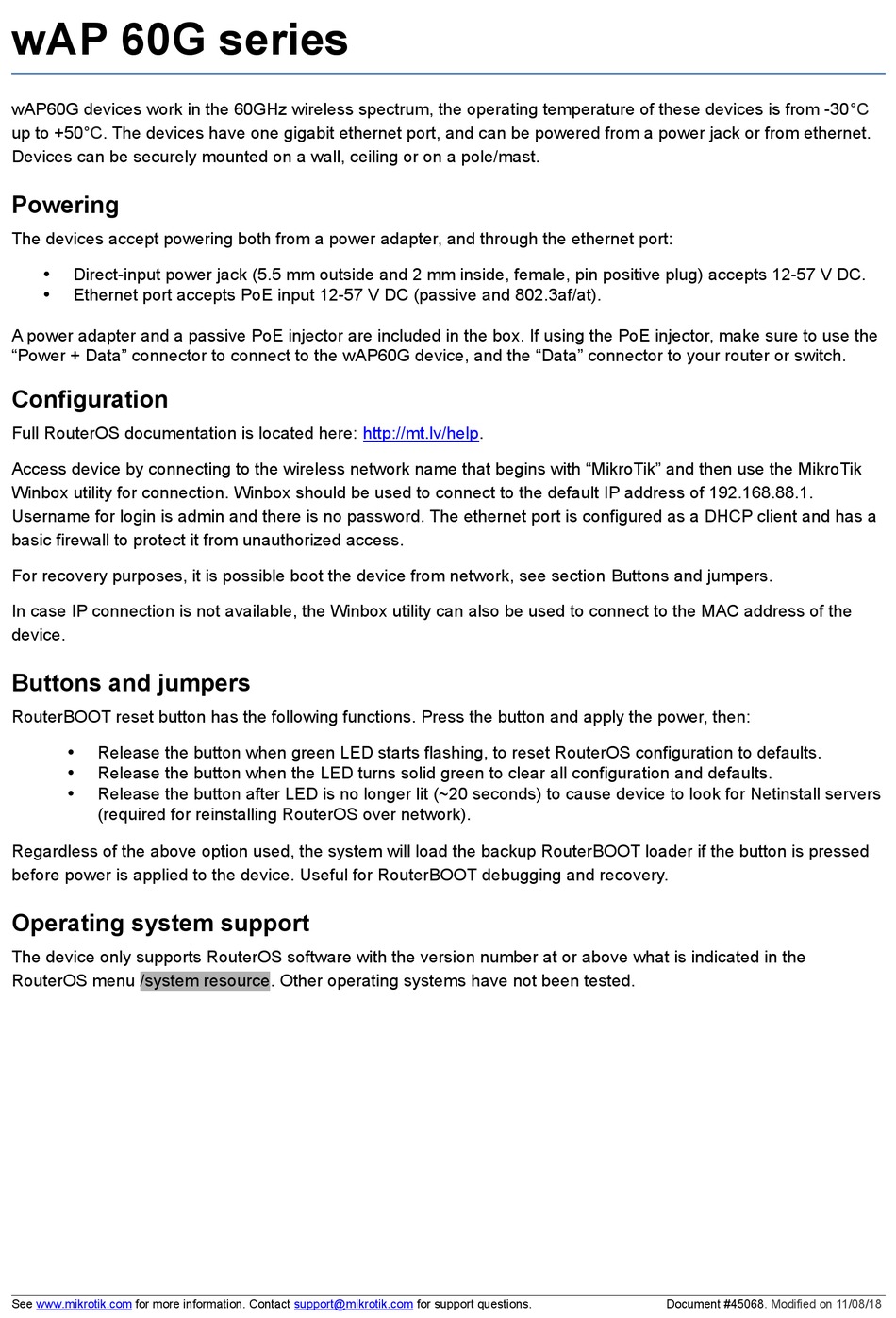

wAP 60G series

wAP60G devices work in the 60GHz wireless spectrum, the operating temperature of these devices is from
up to +50°C. The devices have one gigabit ethernet port, and can be powered from a power jack or from ethernet.
Devices can be securely mounted on a wall, ceiling or on a pole/mast.

Powering

The devices accept powering both from a power adapter, and through the ethernet port:
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-57 V DC.
Ethernet port accepts PoE input 12-57 V DC (passive and 802.3af/at).
A power adapter and a passive PoE injector are included in the box. If using the PoE injector, make sure to use the
"Power + Data" connector to connect to the wAP60G device, and the "Data" connector to your router or switch.

Configuration

Full RouterOS documentation is located here: http://mt.lv/help.
Access device by connecting to the wireless network name that begins with "MikroTik" and then use the MikroTik
Winbox utility for connection. Winbox should be used to connect to the default IP address of 192.168.88.1.
Username for login is admin and there is no password. The ethernet port is configured as a DHCP client and has a
basic firewall to protect it from unauthorized access.
For recovery purposes, it is possible boot the device from network, see section Buttons and jumpers.
In case IP connection is not available, the Winbox utility can also be used to connect to the MAC address of the
device.

Buttons and jumpers

RouterBOOT reset button has the following functions. Press the button and apply the power, then:
Release the button when green LED starts flashing, to reset RouterOS configuration to defaults.
Release the button when the LED turns solid green to clear all configuration and defaults.
Release the button after LED is no longer lit (~20 seconds) to cause device to look for Netinstall servers
(required for reinstalling RouterOS over network).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed
before power is applied to the device. Useful for RouterBOOT debugging and recovery.

Operating system support

The device only supports RouterOS software with the version number at or above what is indicated in the
RouterOS menu /system resource. Other operating systems have not been tested.
See
www. mikrotik .com
for more information. Contact
support@mikrotik.com
for support questions.
-30°C
Document
#45068. Modified on 11/08/18
