MikroTik RB5009UPr+S+IN Quick Start Manual

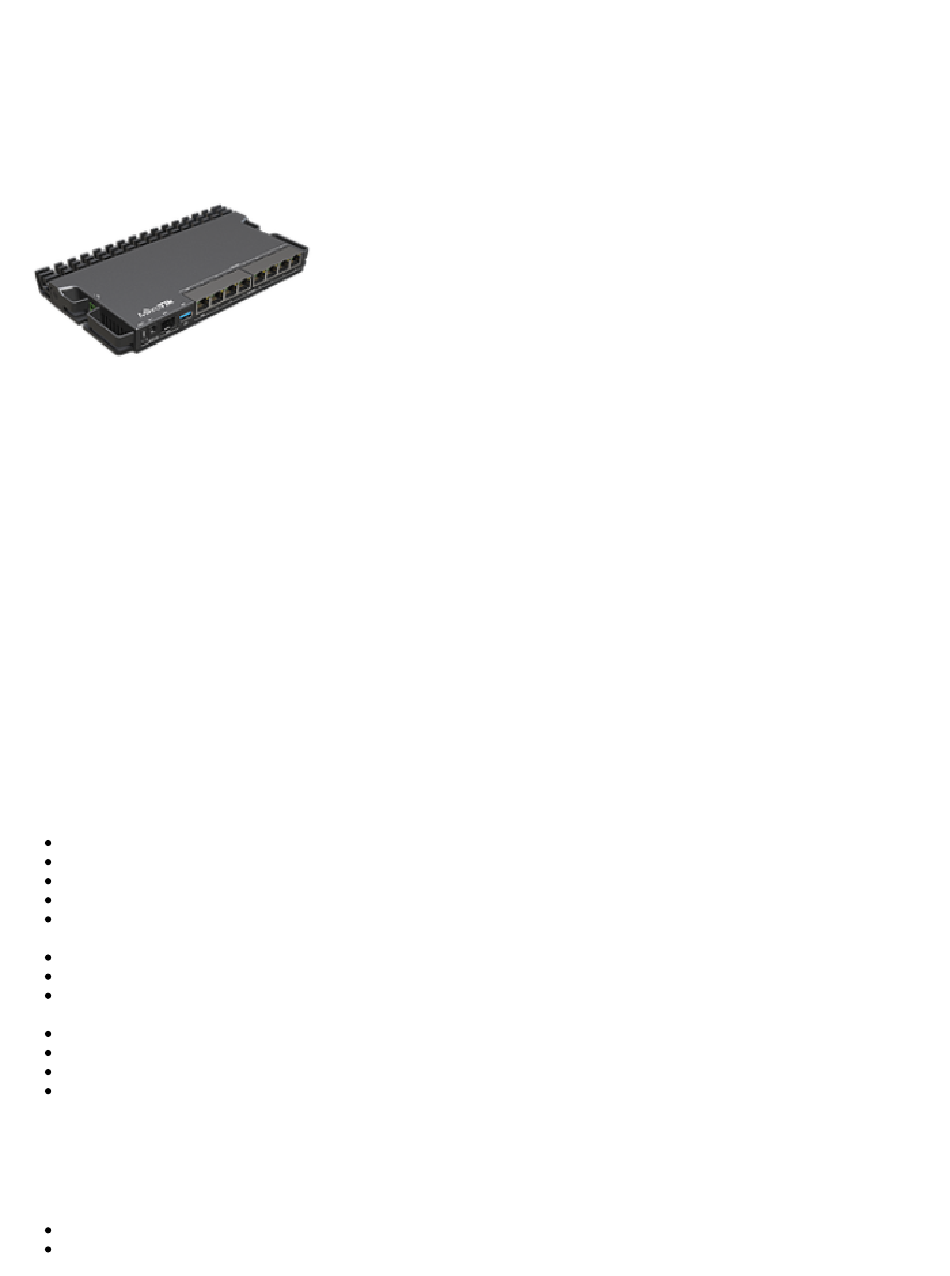

RB5009UPr+S+IN
RB5009UPr+S+IN
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.
Setup
Make sure your ISP is allowing hardware change and will automatically issue an IP address.
Connect your ISP cable to the first Ethernet port.
Connect your PC to any of the Ethernet ports.
Connect the device to the power source.
Use a Web browser or WinBox to connect to the default IP address of 192.168.88.1 from any port, with the username
for some models, check user and wireless passwords on the sticker)
If IP is not available, download WinBox from our webpage and use it to connect through MAC address.
Update RouterOS software to the latest version, and make sure that the device has an internet connection.
If the device does not have an internet connection update software by downloading the latest version from our
/download
Find the latest software and choose your packages.
To get the architecture type of your device model, open WinBox, WebFig go to (System/Resources).
Download packages to the PC and upload them to the WinBox, WebFig, (Files) menu, and reboot the device.
Set up your password to secure the device.
Powering
The power consumption under maximum load can reach 150 W. The device accepts power from the power jack, 2-pin terminal, or from any Ethernet port:
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin-positive plug) accepts 24-57 V DC.
The Ethernet ports accept Power over Ethernet 24-57 V DC,
.
802.3af/at - 802.3af/at (ether1), Mode B (ether2-ether8).
admin and no password
webpage https://mikrotik.com
(or,
