RouterBOARD 800 Series
User's Manual
Rev. A (08-Jan-2010)
Limited Warranty
Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No
part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder.
RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered
trademarks appearing in this manual are the property of their respective holders.
Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of one year from the shipping date
to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by
mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other
acts of nature.
If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty
and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia
To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure.
Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. Take into
account that all goods have one year warranty.
Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied, including, but not limited
to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort
to ensure the accuracy of the contents of this manual, however, it is possible that it may contain technical inaccuracies,
typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or
indirect, incidental, consequential or other damages that may result from such an inaccuracy, including, but not limited
to, loss of data or profits. Please report any inaccuracies found to support@mikrotik.com
Advertisement
Table of Contents
Related Manuals for MikroTik RouterBOARD 800 Series
Summary of Contents for MikroTik RouterBOARD 800 Series
-
Page 1: Limited Warranty
If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik Latvia To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization) procedure. -
Page 2: Table Of Contents
RouterBOARD 800 Series User's Manual Table of Contents Limited Warranty..........................1 System Board View.........................3 System Board Layout........................3 Specifications..........................4 Block Diagram..........................4 Hardware Guide..........................5 Memory and Storage Devices....................5 Onboard Memory......................5 Onboard NAND Storage Device..................5 CompactFlash Slots......................5 Extension Slots........................5 MiniPCI Slots.........................5 Daughterboard Connector....................5 Input/Output Ports........................5... -
Page 3: System Board View

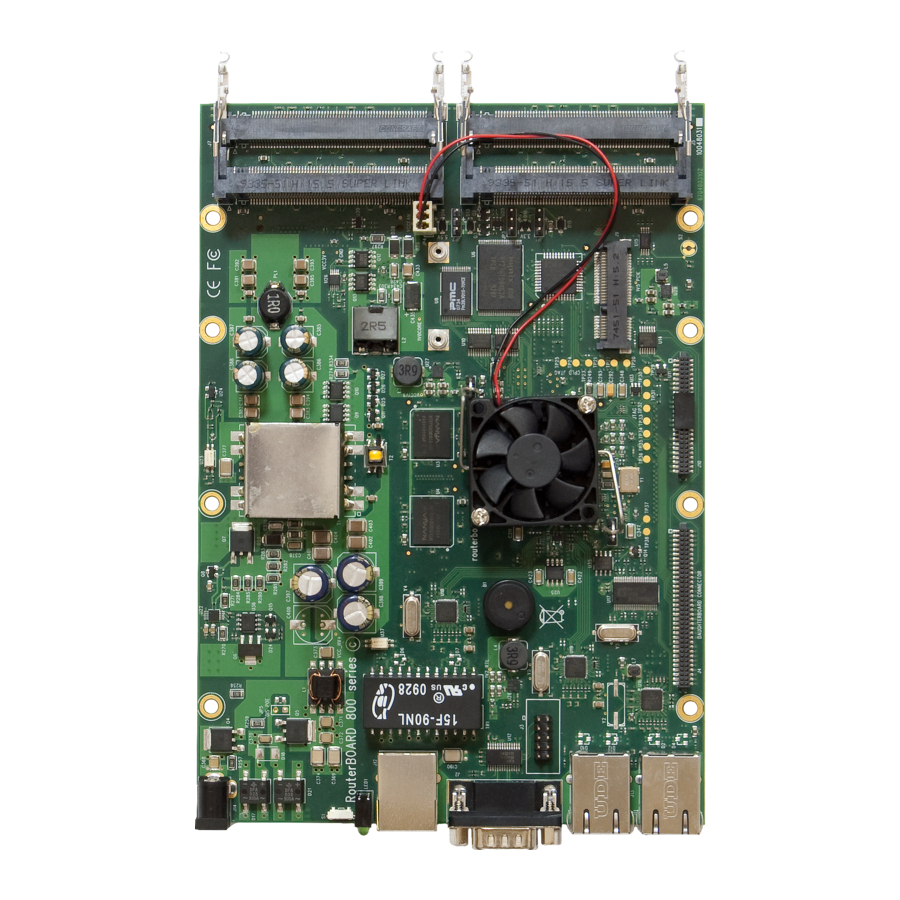

RouterBOARD 800 Series User's Manual System Board View Top view Bottom view System Board Layout You can download the board dimensions and case design files (PDF and DXF) from www.routerboard.com... -
Page 4: Specifications
RouterBOARD 800 Series User's Manual Specifications RouterBOARD 800 MPC8544 800MHz network processor Memory 256MB DDR2 SDRAM onboard memory Boot loader RouterBOOT Data storage 64MB onboard NAND memory chip Ethernet Three 10/100/1000 Mbit/s Gigabit Ethernet ports supporting Auto-MDI/X MiniPCI slot Four MiniPCI Type IIIA/IIIB slots... -
Page 5: Hardware Guide
The board has one CompactFlash slot that supports Compact Flash Type I or II cards and True IDE Microdrive storage devices. The CF slot is bootable. Warning! The RouterBOARD 800 series boards do not support hot insert of CompactFlash/Microdrive devices. -
Page 6: Db9 Serial Port
RouterBOARD 800 Series User's Manual DB9 Serial Port The RS232C standard male DB9 asynchronous serial port may be used for initial configuration, or for attaching a modem or any other RS232 serial device. TxD (pin 3) of this port has -5V DC power when idle. -
Page 7: Powering
PoE. All power inputs are always active, but only one should be used at the same time. RouterBOARD 800 series boards are equipped with a reliable 35+ Watt onboard power supply. 10..56 V DC input voltages are accepted through the J14 power jack. The system is tested with 24V solar/wind/RV systems with 27.6 charge voltage. -
Page 8: Operating System Support
CPU. RouterBOARD 800 series uses the MPC8544 800MHz PPC architecture embedded processor. Ethernet. RouterBOARD 800 series has two onboard Gigabit Ethernet ports (J12 ETH1 and J13 ETH2) controlled by the CPU and one additional onboard Gigabit Ethernet port (J1, ETH3) controlled by Atheros AR8131 Gigabit Ethernet Controller. -
Page 9: Configurable Options
The loader will get the image from the TFTP server and upgrade itself. The most current loader image is available for download on www.routerboard.com. The boot loader upgrading is supported also from MikroTik RouterOS. The procedure is described in the MikroTik RouterOS manual. -
Page 10: Firware Information
RouterBOARD 800 Series User's Manual use-fan – which fan to use in manual mode (main | auxiliary; main by default). Firware information This menu displays RouterBOARD model number, serial number, the current boot loader version and the version available in the current software packages installed. -
Page 11: Button Index
RouterBOARD 800 Series User's Manual 5 GND 7 RTS (Request to Send) 8 CTS (Clear to Send) RJ45 Gigabit Ethernet 1000Base-T port LAN1 with PoE extension RJ45 Gigabit Ethernet 1000Base-T port LAN2 (no PoE) Power jack (10..56 V DC, positive contact is the central pin) - Page 12 RouterBOARD 800 Series User's Manual DB9f Function DB9f DB25f 7 + 8 RTS + CTS 7 + 8 4 + 5 N/C – not connected.
