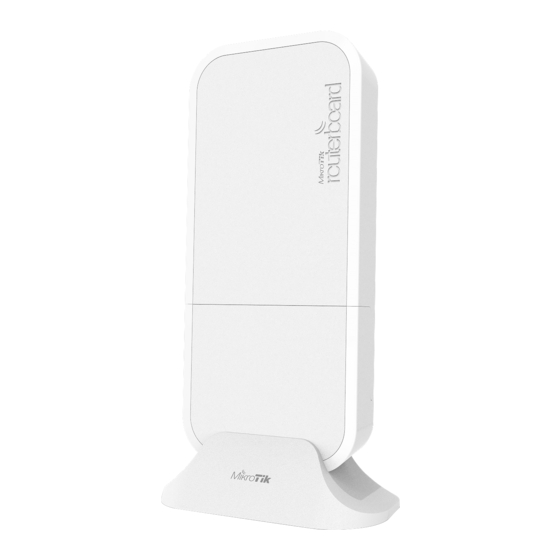

MikroTik wAP 60G Series Manual

wAP 60G series
Wireless Wire RBwAPG-60adkit
wAP 60G RBwAPG-60ad
wAP 60G AP RBwAPG-60ad-A
wAP 60Gx3 AP RBwAPG-60ad-SA
wAP60G devices work in the 60GHz wireless spectrum, the operating temperature of these devices is from
gigabit ethernet port and can be powered from a power jack or from ethernet. Devices can be securely mounted on a wall, ceiling, or on a pole/mast.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
All installation methods for mounting an access point on any wall surface is subject to the acceptance of local jurisdiction.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole but can also be installed indoors. Please read the mounting instructions carefully before
beginning installation. Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation to
people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
This is a class A device. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.

Quick Start

Connect the device to the included PoE injector with Ethernet cable to the data+power end;
Connect the data end of the PoE injector into the computer;
Connect the power adapter to the PoE injector;
Download WinBox configuration tool
Default IP: 192.168.88.1, user name:
Set an IP address of your computer to 192.168.88.2;
In case the IP connection is not available, please use the Neighbors tab and connect through MAC address;
Once connected configure the device, so it has an active Internet connection
Upgrade the RouterOS software to the latest version
Choose your country, to apply country regulation settings;
Set the Installation to indoors or outdoors, depending on the usage type;
Secure your device and set a strong password;
For more configuration information, please visit
wAP60G AP units come pre-configured with WISP Bridge default configuration;
Wireless Wire and wAP60G units come pre-configured with PTP Bridge default configuration;
Wireless Wire devices have already, randomly generated, matching SSID, and Wireless passwords.

Powering

The devices accept powering both from a power adapter, and through the ethernet port:
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-57 V DC.
Ethernet port accepts PoE input 12-57 V DC (passive and 802.3af/at).
https://mt.lv/winbox ;
admin and there is no password, for the paired models, please find the password on the sticker;
https://mt.lv/upgrade
https://wiki.mikrotik.com/wiki/Manual:Interface/W60G
-40°C
https://mt.lv/configuration ;
;
;
up to +70°C. The devices have a one-
