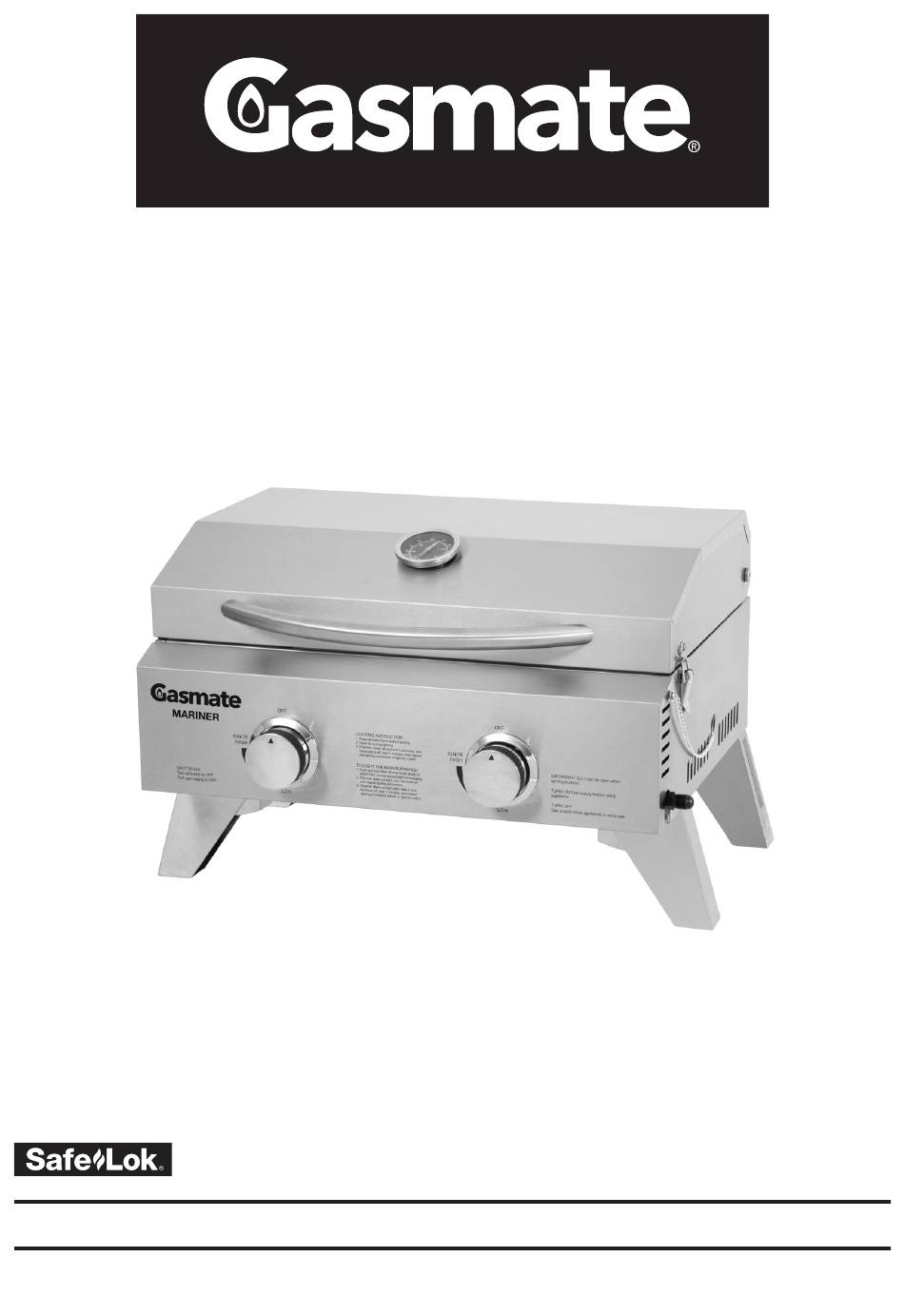

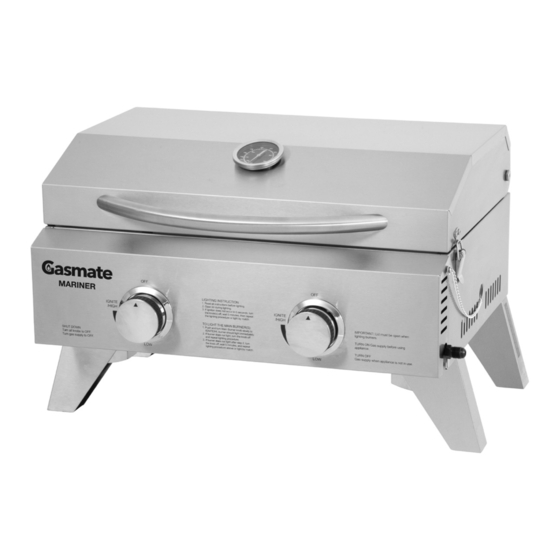

MARINER 2 BURNER
PORTABLE BBQ
• Powerful 22MJ/h stainless steel burner for
true BBQ performance
• Rotary ignition for easy lighting
• Generous cooking area of 1785cm 2
• Stainless steel grill cooking surface
LCC27 REGULATOR SUPPLIED
This LCC27 Regulator can only be used with the new safer industry standard LCC27 Gas Cylinder Connection.
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber, N.Z. www.gasmate.co.nz
Model No. BQ3050
• Integrated temperature gauge
• Includes LCC27 hose and regulator
• Gas certified to Australian and New Zealand
Standards
1
04482 07/22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate MARINER
Summary of Contents for Gasmate MARINER
- Page 1 LCC27 REGULATOR SUPPLIED This LCC27 Regulator can only be used with the new safer industry standard LCC27 Gas Cylinder Connection. Important: Retain these instructions for future use. Gasmate® is a registered trademark of 04482 07/22 Sitro Group Australia Pty Ltd www.gasmate.com.au...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with IMPORTANT the barbecue are suitable for Propane Gas. Read these instructions carefully prior A gas regulator adjusted to have an outlet to use. Familiarise yourself with the pressure of 2.75kPa is supplied for connection to appliance before connecting it to it’s gas the propane gas cylinder. -
Page 4: For Your Safety
GENERAL INFORMATION FOR YOUR SAFETY • Avoid twisting or kinking the flexible hose. Failure to comply with these instructions • Do not store or use petrol or other could result in a fire or explosion which flammable liquids in the vicinity of this or could cause serious bodily injury, death or any other appliance. - Page 5 Location of your Barbecue IF THERE IS A LEAK DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. • Turn the cylinder off. Your barbecue is to be used OUTDOORS. The • Ventilate the area to disperse gas. barbecue is not intended to be installed in or on •...
- Page 6 ASSEMBLY Carefully unpack your BBQ. Remove and dispose of all packing material in an environmentally responsible manner. NOTE: Plastic bags can be a danger to young children, dispose of immediately. Always dispose of packaging in a responsible manner. Your BBQ requires minimal assembly follow these steps before using. WARNING: Only use BBQ when fully assembled.
-
Page 7: Parts List
PARTS LIST Description Qty. Description Qty. Main Lid Bolt Knob Bezel Main Lid Screw Cover Knob Main Lid Nut, Foot Stand Leg Lid Rubber Pad Screw,Foot Stand Leg Temperature gauge Grease Tray Latch Lighting Rod Handle Burner Supporter Foot Stand Leg Fixed Plate for Flame Tamer Main Firebox Main Burner... -
Page 8: Lighting Procedure
GENERAL INFORMATION CONNECTING & DISCONNECTING LIGHTING PROCEDURE TO GAS SOURCE Burner Operation & Ignition System Check Familiarise yourself with the general information 1. With cylinder valve in ‘OFF’ position check and safety guidelines located at the front of this the piezo igniter by pushing in and rotating manual. -
Page 9: Operation
OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Push knob in and rotate to high when lighting Burner will not ignite Piezo igniter is faulty Use a long barbecue match inserted through the hole on under side of barbecue Burner has gone out Check that the gas bottle is not empty... -
Page 10: Care And Maintenance
CARE & MAINTENANCE As with all appliances, proper care and Cleaning the Cooking Surface maintenance will keep them in top operating After cooking, turn burner control to ‘OFF’ and let condition and prolong their life. Your new gas barbecue cool before attempting to clean the grill barbecue is no exception. -
Page 11: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. - Page 12 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 1 year warranty.
