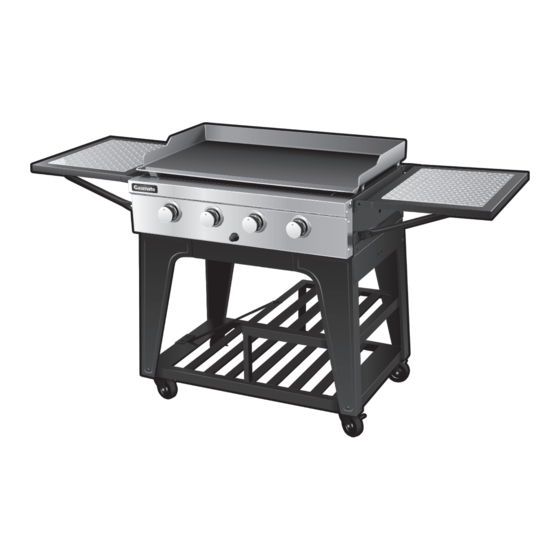

4 BURNER BBQ
•
Ideal heavy-duty BBQ for sporting and social clubs
or anywhere large groups are entertained
•
4 burners provide 57.2MJ/h heat output (4 x
14.3MJ/h)
•
Hard-wearing powder coated frame with stainless
steel fascia
•
Solid 5mm thick steel hotplate with non-stick coating
Important: Retain these instructions for future use.
TELLUS 4
Model No. GM165-028
•
•
•
•
•
OUTDOOR USE ONLY
Gasmate
is a registered trademark of
®
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living, N.Z. www.gasmate.co.nz
Stainless steel burners with electronic ignition
Foldable side shelves with non-slip aluminium inserts
Assembled dimensions (mm): 1765W x 965H x 615D
Total cooking area (mm): 840W x 510D
Gas Certi ed to New Zealand Standards
5193 09/23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate TELLUS 4
Summary of Contents for Gasmate TELLUS 4
- Page 1 • Solid 5mm thick steel hotplate with non-stick coating OUTDOOR USE ONLY Important: Retain these instructions for future use. Gasmate is a registered trademark of 5193 09/23 ® Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, N.Z. www.gasmate.co.nz...
-
Page 2: General Information
GENERAL INFORMATION Gas Installation Codes • Barbecues must be used in accordance with New If you are unable to correct the leak by tightening the Zealand Standard 5601 “Gas Installations”. connections, turn off the gas and contact the supplier immediately. •... -
Page 3: Protect Children
GENERAL INFORMATION Location of your Barbecue Check Barbecue for any Damage DO NOT use your barbecue in garages, porches, sheds, Contact your supplier for assistance regarding breezeways, or other enclosed areas. Your barbecue is to replacement of any damaged or missing parts. Do not be used OUTDOORS. -
Page 4: General Assembly
GENERAL ASSEMBLY LIGHTING PROCEDURE Connecting & Disconnecting to Gas Source Burner Operation & Ignition System Check 1. Turn all the control knobs clockwise to “OFF” position. 2. With cylinder valve in ‘CLOSE’ position press the IMPORTANT: piezo igniter button (a single click is heard). Check for sparking to the burners. -
Page 5: Operating Procedure
BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Valve on cylinder is closed Open valve on cylinder Burner will Control knob is closed Turn knob to high when lighting not ignite Electronic igniter is faulty Use a long barbecue match Burner has gone out Check that the gas bottle is not empty and re-ignite the burner... -
Page 6: Exploded Diagram
EXPLODED DIAGRAM Description Side Shelf Side Shelf Brackets Side Handle Side Shelf Brackets Knob Cylinder Hook Cylinder Support Bracket Trolley Brace Bar Drip Tray Left Back Leg Side Supports Left Front Leg Bottom Shelf Castor Right Front Leg Support Rod Shelf Right Back Leg Shelf Support... - Page 7 ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 Screw all castors (14) into the underside of the bottom Attach the four legs (10,12,15,18) to the bottom shelf shelf (13) using 4 x M5x10mm (B) screws per castor. using 2 x M6x25mm (J) screws per leg. 16pcs 8pcs STEP 3...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 Attach both support rods (16) into the trolley legs using Screw both side supports (11) onto the trolley legs using 4 x M6x12mm screws (A). Support rods are identical and 12 x M6x12mm screws (A). can fit on both the front and back.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 9 STEP 10 Attach the drip tray support beams (22,23) to the Insert drip tray onto the supports, with the handle facing underside of the support rods (16) using 4 x M6x20mm towards to rear of the trolley. screws (G) and 4 x M6 nuts (C).
- Page 10 ASSEMBLY INSTRUCTIONS STEP 12 Attach the side shelf brackets (2, 4) onto the top of each end of the firebox using 8 x M6x12mm screws (A), ensuring that the ‘tabs’ are on the outer edge of the firebox. 8pcs STEP 13 Attach the side handle (3) onto the bottom of the firebox using 8 x M6x12mm screws (A).
- Page 11 ASSEMBLY INSTRUCTIONS STEP 14 STEP 15 Screw 4 x M6x30mm bolts (H) into the holes on the Press all knobs (5) into place. Place the battery into bottom of the hotplate (21). Screw 4 x nuts (I) onto the the battery canal with the positive end facing towards the bolts.
- Page 12 STEP 16 STEP 17 STEP 18 Offer the hose assembly up Attach the regulator to your gas Turn on the gas cylinder ensuring to the connection point on the cylinder. that all of the controls on the BBQ BBQ. Tighten the connection nut are turned OFF at this point.
-
Page 13: Care And Maintenance
CARE & MAINTENANCE Care & Maintenance Care of Cooking Surface As with all appliances, proper care and maintenance Use and care of the cooking surface is important. Do not will keep them in top operating condition and prolong cut food on the cooking surface. Do not use pans on the their life. -
Page 14: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS The appliance shall only be used in an above ground, open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convention. WARNING • Do not use the barbecue in enclosed or on small balconies. •... - Page 15 This page has been left intentionaly blank...
-
Page 16: Limited Warranty
1 YEAR LIMITED WARRANTY Aber Living warrants the purchaser of this product against defects in workmanship and material, for a period of up to 12 months from the date of purchase. The warranty is non-transferable and becomes void if used for commercial or rental purposes.
