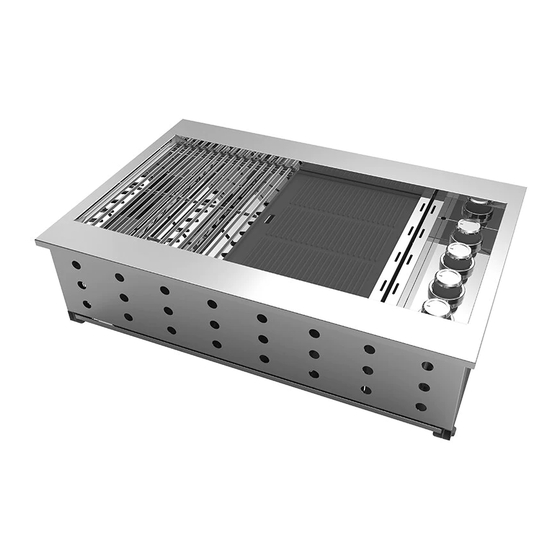

SOHO DROP IN BBQ
Premium #304 grade stainless steel construction
Rotary ignition
Satin enamel cast iron reversible plate
and stainless steel grill
Convenient lid gives you extra bench space
when not in use
Stainless steel burners with individual controls
Total output of 54 MJ/h
Supplied fully assembled
Complete with hose and regulator
Operates on Propane or ULPG
Gas Certified to Australian Standards
Suitable for Natural Gas conversion
LCC27 REGULATOR
SUPPLIED
This LCC27 Regulator can only be used
with the new safer industry standard
LCC27 Gas Cylinder Connection.
FOR OUTDOOR USE ONLY
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Read the instructions thoroughly before installing or
servicing this equipment.
Model NO. BQ1096SL
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living, N.Z. www.gasmate.co.nz
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, immediately call
your gas supplier.
Do not store or use gasoline or other flammable vapour
and liquids in the vicinity of this or any other appliance.
04517 06/23
Advertisement
Table of Contents
Related Manuals for Gasmate SOHO
Summary of Contents for Gasmate SOHO
- Page 1 Do not store or use gasoline or other flammable vapour servicing this equipment. and liquids in the vicinity of this or any other appliance. Important: Retain these instructions for future use. Gasmate® is a registered trademark of 04517 06/23 Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, N.Z. www.gasmate.co.nz...
-
Page 2: General Information
GENERAL INFORMATION When changing over from an empty gas cylinder to a full one make sure this procedure is carried out in a well IMPORTANT ventilated location, preferably outside, away from people and away from any sources of ignition; such as naked Read these instruction carefully prior to use. - Page 3 • Never test for gas leaks with a lit match or open flame. Never light barbecue with hood closed or WARNING before checking to ensure the burner tubes are fully seated over gas valve orifices. Failure to comply with these instructions could result in a fire or explosion which could cause serious bodily •...
-
Page 4: General Assembly
GENERAL ASSEMBLY IMPORTANT Connecting & Disconnecting to the Gas Source Familiarise yourself with the general information and • Do not smoke when attempting to ignite the safety guidelines located at the front of this manual. barbecue. DO NOT USE AN ADAPTOR ON THE CYLINDER • Never use volcanic rock, heat beads or other CONNECTION material. Check • Always use protective gloves when handling hot components. -
Page 5: Lighting Procedure
LCC27 Cylinder LIGHTING PROCEDURE Connection Device Burner Operation & Ignition System Check LCC27 Regulator LCC27 Gas 1. Open the Lid of the barbecue before attempting to & Hose Cylinder light the burners. 2. Turn the control knobs clockwise to “OFF” position. 3. Connect the regulator to the gas bottle. Turn the gas supply “ON” at the cylinder. Check with the use of soapy water for any gas leakage between the bottle and the regulator. 4. Push down a control knob and keep pressing whilst turning anti-clockwise to the “HIGH”... -
Page 6: Care And Maintenance
CARE & MAINTENANCE CARE AND CLEANING OF STAINLESS STEEL Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, Stainless steel parts of this appliance are made from 304 breezeways, or other enclosed areas. Your barbecue is & 430 grade stainless steel. To preserve the appearance to be used OUTDOORS. The barbecue is not intended and corrosion resistance of the stainless steel material to be installed in or on recreational vehicles and/or boats regular cleaning is required. Although stainless steel and should not be placed under any surface that will burn. does not rust in the same manner as steel it can still Do not obstruct the flow of combustion and ventilation air exhibit ‘corrosion’ blemishes that look similar to rust and around the barbecue housing. -
Page 7: Cleaning The Burner
After cleaning applying a thin coating of ‘light oil’, for 6. Clean any blocked ports with a stiff wire such as an example baby oil, will also help protect the stainless steel open paper clip. surface from the elements. 7. Check burner for damage, due to normal wear and corrosion some holes may become enlarged. If any Stubborn Stains and Corrosion Spots large cracks or holes are found replace burner. Stubborn stains, discolouration, ‘Tea Staining’ can 8. Carefully refit burners, ensuring they are located on occur from insufficient cleaning, excessive spillage from the gas valve. cooking, severe environmental conditions and extreme 9. Replace clip at the end of burner. cooking conditions. 10. Replace grease tray and cooking grates. There are propriety stainless steel cleaners available that are designed for such instances. Read the instructions carefully before using. -
Page 8: Product Dimensions
PRODUCT DIMENSIONS 933mm 933mm 900mm 914mm (FRONT/REAR VIEW) 609mm (TOP VIEW) WARNING This drop-in BBQ is designed to sit flush with the bench. However, if you choose to install the BBQ on top 40mm FOOT HEIGHT ADJUSTMENT 545mm of the stone bench, you need to make sure the legs are (SIDE VIEW) supporting the BBQ. The appliance requires venting. When the BBQ is sitting flush with the bench, there is an approximate 2mm gap around the BBQ edge with the bench. This gap plays an important role of venting, therefore, it should not be sealed with silicon. If you choose, however, to seal the gap, a rectangular unimpeded opening of approx 750mm W x 10mm H in either the front or the rear should be incorporated within the cabinet. Please refer BENCH CUT-OUT DIMENSIONS to diagram below as an example. 936mm 916mm 612mm 580mm VENTING VENTING The cutout size, when sitting the BBQ The cutout size, when sitting the BBQ... - Page 9 SPACER BRACKETS Two spacer brackets have been provided. They are essentially for customers who mount their BBQ into a different type of cavity / cabinetry, where (unlike the AlfrescoPlus BBQ module designed for the BBQ) there are no doors covering the front face of the BBQ - but just a cut out to access the drip tray (880mm x 50mm). In that set-up, the drip tray could protrude out from the BBQ but aligns up with the cabinet front. Those brackets essentially just push forward the drip tray, for that type of set-up / cabinetry. BENCH CUT-OUT DIMENSIONS 50mm 880mm 100mm From edge FAT TRAY CUT OUT Ø DIMENSIONS 100mm GAS HOSE CONNECTION CUT OUT UNDER BENCH CLEARANCE 150mm ALL AROUND SIDE WALLS OF BBQ FAT TRAY 2 x Drip Tray Spacer Brackets (Left & Right Side) SPACER BRACKET INSTALLATION DRIP TRAY BACK OF BBQ CLOSE UP INSTALLATION SPACER BRACKET DRIP TRAY STOPS CLOSE UP LOCATION INSTALLATION...
-
Page 10: Natural Gas Conversion
• NATURAL GAS APPLIANCE. TO BE INSTALLED ONLY BY AN AUTHORISED PERSON. • THE AUTHORISED PERSON WILL PROVIDE A CERTIFICATE OF COMPLIANCE. • A Gasmate NGC30 or NGC40 AGA approved natural gas pressure regulator must be installed in the pipeline and be set at 1 kPa. -
Page 11: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS Within a partial enclosure that includes an overhead cover and no more than two walls This appliance shall only be used in an above ground (see Example 2 & 3). open-air situation with natural ventilation, without Within a partial enclosure that includes an overhead stagnant areas, where gas leakage and products of cover and more than two walls, the following will apply: combustion are rapidly dispersed by wind and natural... - Page 12 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 5 year warranty. Before any work/modification is done on/to this product please refer to the link to the SDS for your personal protection requirements.
-
Page 13: Installation Instructions
SOHO DROP IN BBQ HOOD Model NO. BQ1096H Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, N.Z. www.gasmate.co.nz INSTALLATION INSTRUCTIONS 04296 04/21... - Page 16 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.
