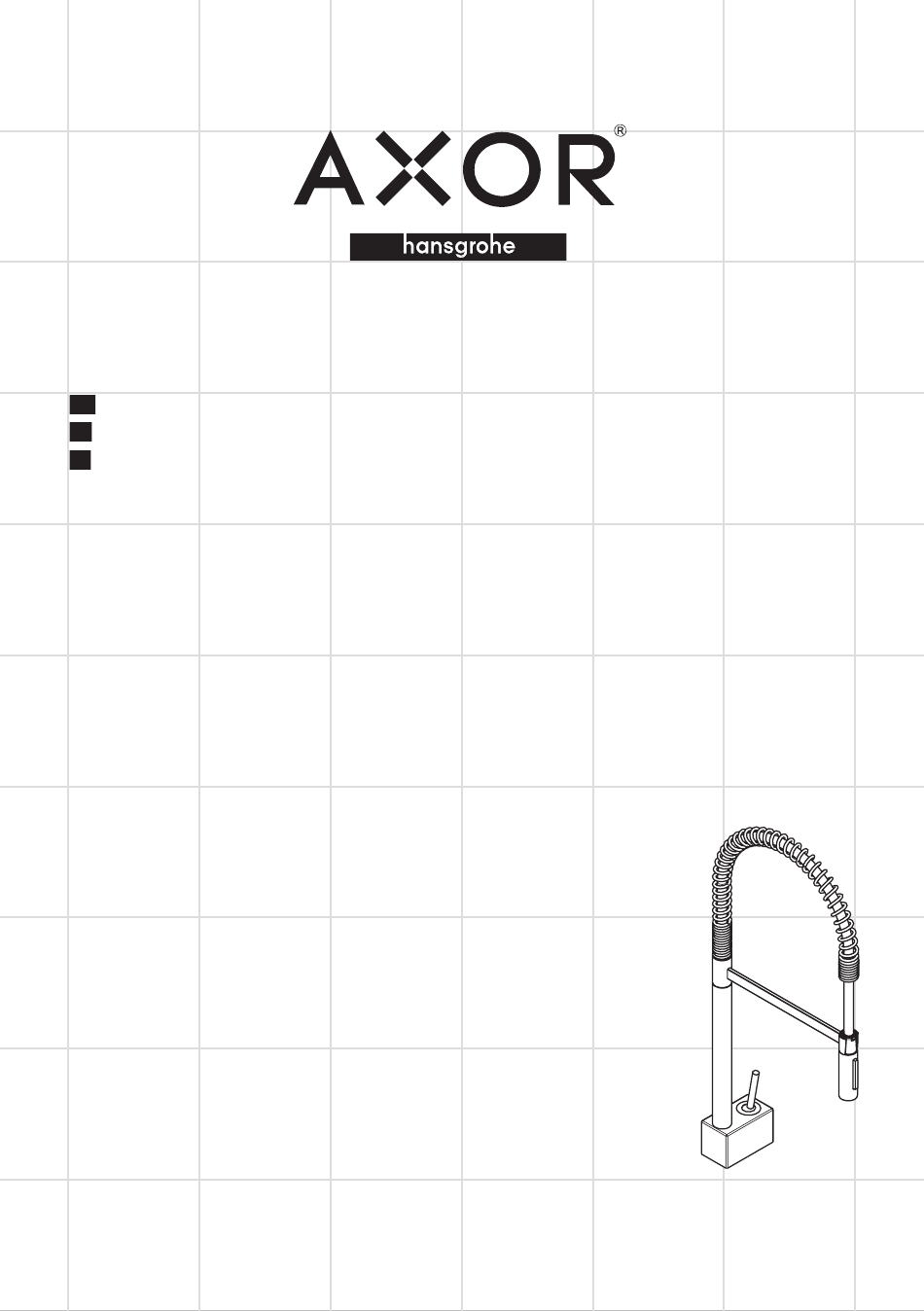

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Starck Semi-Pro 10820001...
-
Page 2: Technical Information
English Français Technical Information Données techniques Recommended water pressure 15 - 75 PSI Pression d’eau recommandée 15 - 75 PSI Max. water pressure 145 PSI Pression d’eau maximum 145 PSI Recommended hot water temp. 120° - 140° F* Température recommandée 120° - 140° F* Max. hot water temp 176°F* d'eau chaude Flow rate 1.75 GPM Température maximum d'eau chaude 176°F* Hole size in mounting surface 1½" Capacité nominale 1.75 GPM Max. depth of mounting surface 2⅜" Dimension du trou dans la surface de montage 1½ Profondeur maximale de la surface 2⅜ po * Please know and follow all applicable local plumbing de montage codes when setting the temperature on the water heater. -
Page 3: Datos Tecnicos
Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión recomendada en servicio 15 - 75 PSI Presión en servicio max. 145 PSI Temperatura recomendada del 120° - 140° F* agua caliente Temperatura del agua caliente max. 176°F* Caudal máximo 1.75 GPM Tamaño del orificio en la superficie 1½" de montaje Profundidad máxima de la superficie 2⅜" de montaje 16 mm 9 mm * Debe conocer y cumplir todos los códigos locales apli- cables para ajustar la temperatura del calentador de agua. Consideraciones para la instalación • Para obtener mejores resultados, la instalación This unit meets or exceeds the following: debe estar a cargo de un plomero profesional • ASME A112.18.1... - Page 4 11⅞" 1⅛" 10⅝" 9⅜" ⅛" 4" 2⅛" 1⅜" ⅜...
-
Page 5: Installation / Installation / Instalación
Installation / Installation / Instalación English Français Español Place the faucet and sealing ring Placez l'anneau d'étanchéite et le Coloque el oro de sellado y on the mounting surface. robinet sur la surface de montage. el grifo sobre la superficie de montaje. Install the plastic washer, friction Installez la rondelle de plastique, Instale la arandela plástica, la washer, metal washer, and mount- la rondelle en fibre, la rondelle de arandela de fibra, la arandela de ing nut. friction, et l'écrou de montage. fricción y la tuerca de fijación. If the mounting surface is thicker S l'épaisseur du comptoir dépasse Si el espesor de la mesada es than 1⅜", or if there is insufficient 1⅜ po, ou si l'espace disponible superior a 1⅜ pulg. o si no hay space, omit the plastic washer. est insuffisant, omettez la rondelle suficiente espacio, puede omitirse de plastique. la arandela plástica. - Page 6 English Français Español Tighten the mounting nut. Serrez l'écrou de montage et les Apriete la tuerca de fijación y los vis de serrage. tornillos. Tighten the screws. Install the hose. Installez le flexible. Instale el flexo.
- Page 7 > 2 min English Français Español Connect the hot and cold supply Connectez les tuyaux d'arrivée Conecte las mangueras de sumin- hoses to the stops. d'eau chaude et d'eau froide aux istro de agua caliente y fría a las tuyau d'alimentation. alimentaciones de la red. Use two wrenches. Servez-vous de deux Use dos llaves, como se Do not allow the supply clés, tel qu'illustre dans le illustra en el diagrama. hoses to twist. schema.
- Page 8 English Français Español Install the filter and the handspray. Installez le filtre et la douchette. Instale el filtro y la ducha.
- Page 9 Replacement Parts / Pièces détachées / Repuestos 97475000 97662000 97735000 97466000 97558000 10092000 97350000 98231000 (18x1.5) 97157000 96339000 96316001 95181000 97825000 97523000 97548000 95049000...
- Page 10 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrado cold froid chaud frío caliente...
- Page 11 Cleaning / Nettoyage / Limpieza...
- Page 13 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. For best results: • P revent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • S elect a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: ´ Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. ´ Abrasive cleaning powders, pads, or brushes. ´ Steam cleaners. ´ “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • Do not mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge.
- Page 14 • Après le nettoyage rincer abondamment à l’eau clair pour éliminer intégralement les restes de détergent. Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. • Le résidu provenant des nettoyants pour cuvette/baignoire/carrelage peut endommager les robinets et les raccords de tuyauterie. Rincez immédiatement toute surpulvérisation sur le produit Hansgrohe. • De meme, il est interdit de stocker des detergents ou des produits chimiques sous les produits, par ex. dans un meuble sous lavabo, car les vapeurs qui s’en degagent risquent d’abimer les produits. • Les dommages au produit causés par un mauvais entretien ou par l’utilisation de produits de nettoyage inadéquats ne sont pas couverts par la garantie. • Si un composant du produit est endommagé, remplacez-le, car il existe un risque de blessure. Recomendación de limpieza para los productos de Hansgrohe Hoy en día, las griferías de baño y de cocina así como duchas modernas se componen de materiales muy distintos para satisfacer las exigencias del mercado respecto al diseño y la funcionalidad. Para evitar daños y reclamaciones hay que tener...
-
Page 15: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 1996, and installed in either in the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. This warranty is non-transferable. WHAT IS COVERED BY THE WARRANTY The warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or workmanship as follows: Hansgrohe will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Hansgrohe may elect to refund the purchase price in exchange for the return of the product. LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty, as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe & Commercial products, and (ii) for 5 years, with respect to Axor products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A. Conditions, malfunctions or damage not resulting from defects in material or workmanship. - Page 16 EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
