User's Guide
LMR43620-Q1 EVM User's Guide

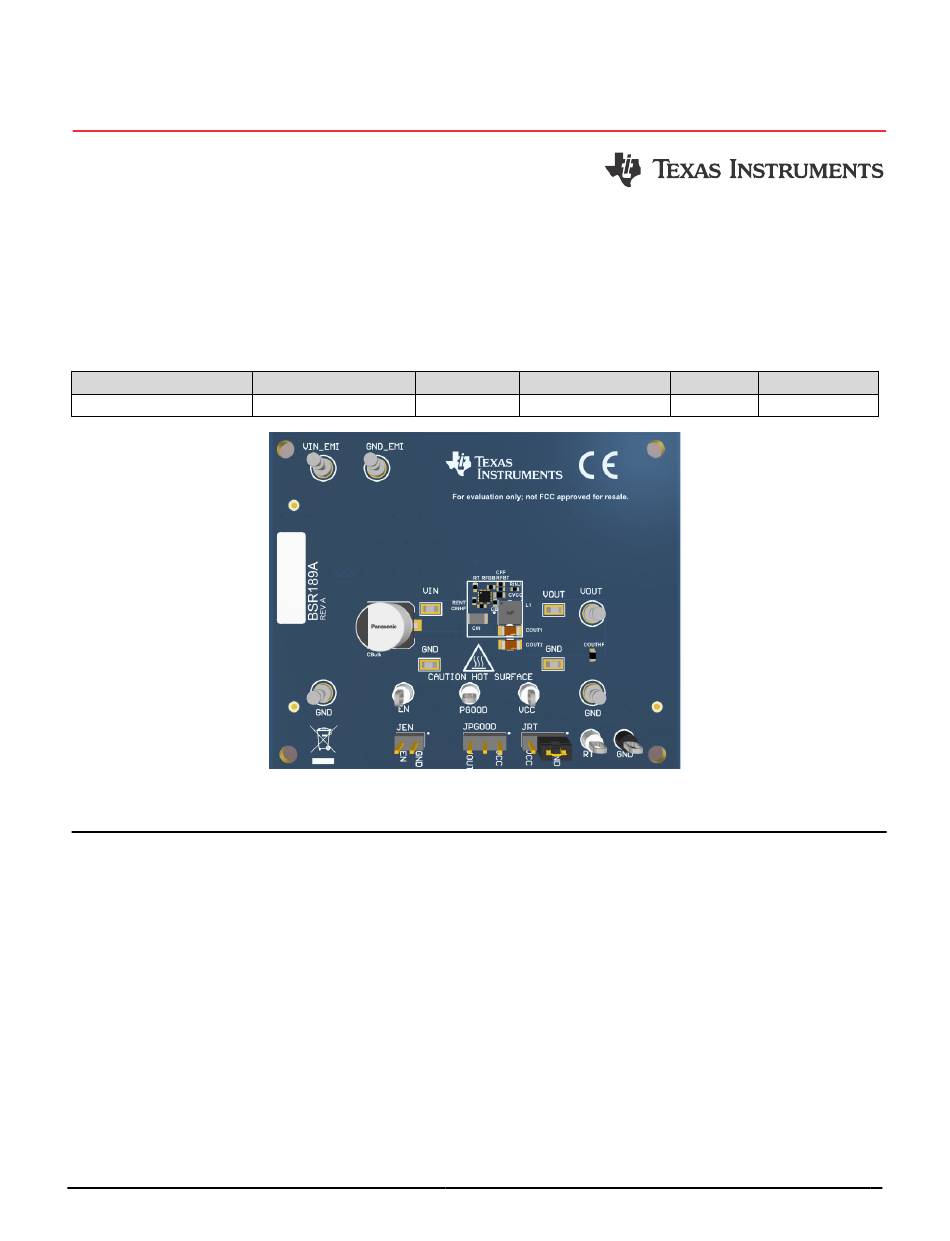

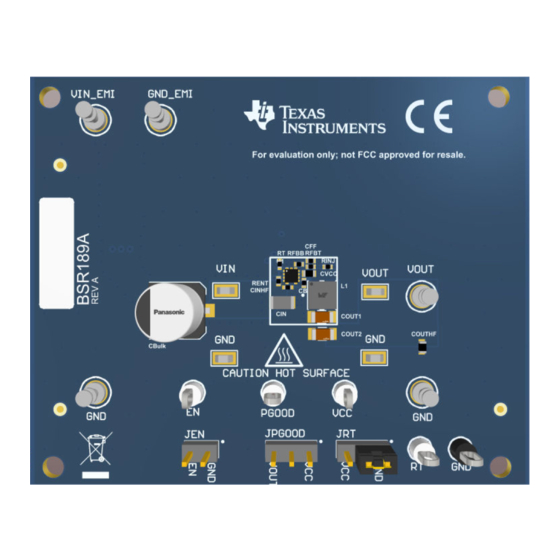

The Texas Instruments LMR43620RQ5EVM-400 evaluation module (EVM) helps designers evaluate the
operation and performance of the LMR43620-Q1 wide-input buck converter. The LMR43620-Q1 is an easy-to-
use synchronous step-down voltage converter capable of driving up to 2 A of load current from an input voltage
of up to 36 V. The LMR43620RQ5EVM-400 features an output voltage of 5 V and a switching frequency of 400
kHz. See the data sheet for additional features, detailed descriptions, and available options.
EVM
LMR43620RQ5EVM-400
1
