The Texas Instruments LMR36506MSCEVM evaluation module help designers evaluate the operation and
performance of the LMR36506-Q1 wide-input buck converters. The LMR36506-Q1 is an easy-to-use
synchronous step-down DC/DC converter capable of driving up to 0.6 A of load current from an input
voltage of up to 65 V. The LMR36506MSCEVM features an output voltage of 5 V and a switching
frequency of 2.2 MHz. See the
for Size and Light Load Efficiency
options.
EVM
LMR36506MSCEVM
SNVU670A – February 2020 – Revised June 2020
Submit Documentation Feedback
LMR36506MSCEVM User's Guide
LMR36506-Q1 3-V–65-V, 0.6-A Synchronous Buck Converter Optimized
data sheet for additional features, detailed descriptions, and available
Table 1. Device and Package Configurations
U1
FREQUENCY
LMR36506MSCQRPETQ1

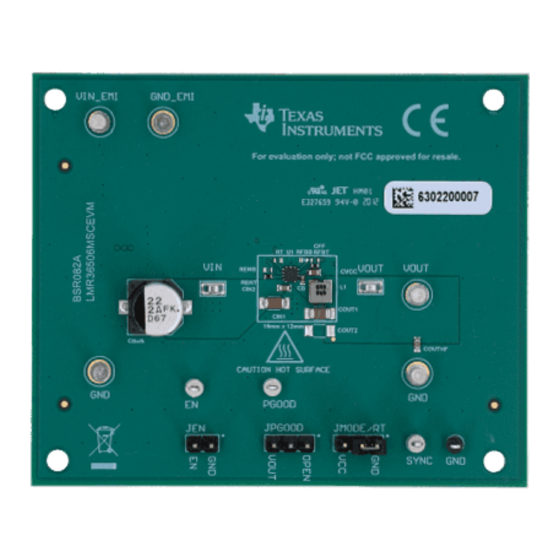

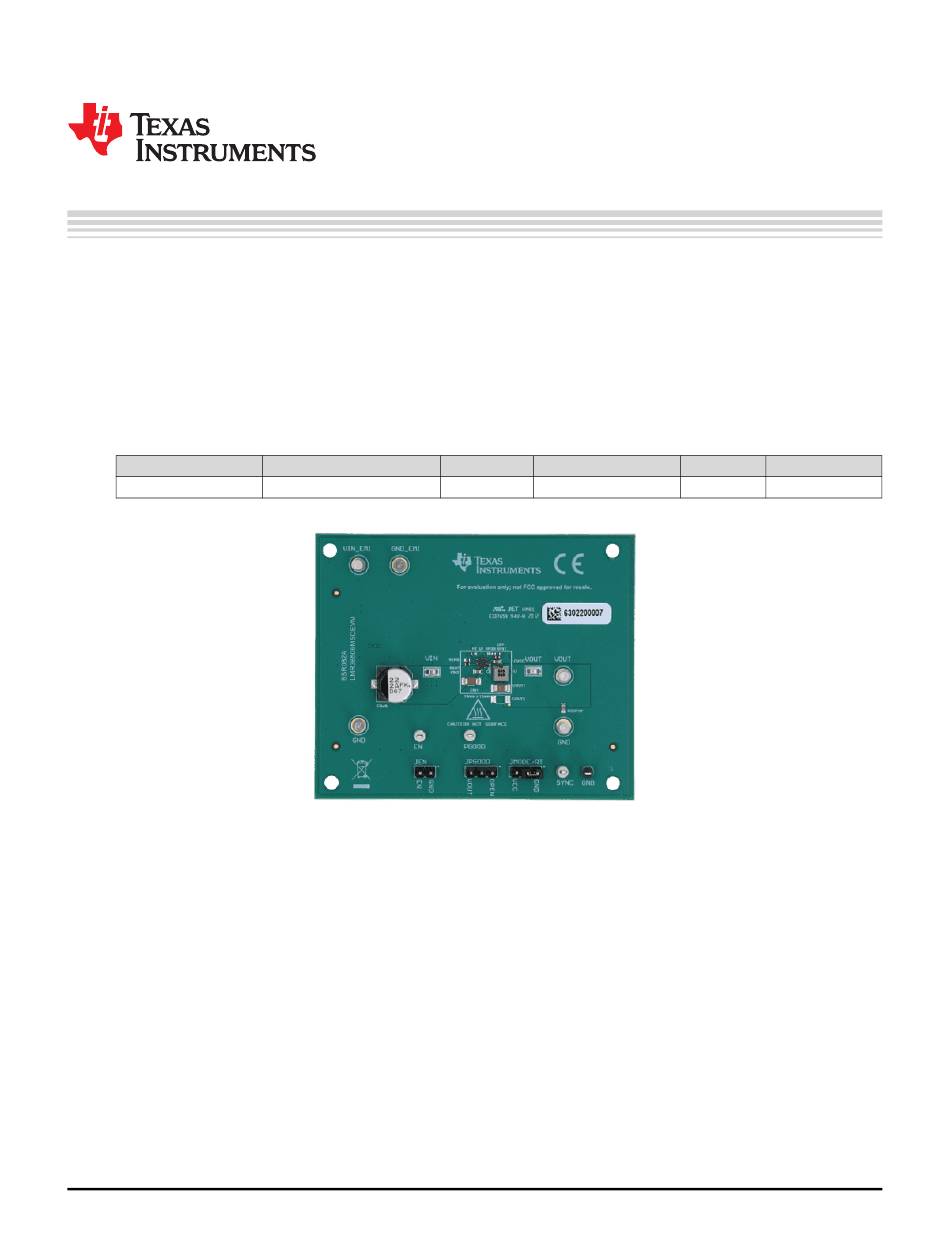

Figure 1. LMR36506MSCEVM Board
Copyright © 2020, Texas Instruments Incorporated
SNVU670A – February 2020 – Revised June 2020
SPREAD SPECTRUM
2200 kHz
Enabled
LMR36506MSCEVM User's Guide
User's Guide
CURRENT
PIN 1 TRIM
0.6 A
MODE/SYNC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMR36506MSCEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments LMR36506MSCEVM

  • Page 1 DC/DC converter capable of driving up to 0.6 A of load current from an input voltage of up to 65 V. The LMR36506MSCEVM features an output voltage of 5 V and a switching frequency of 2.2 MHz. See the LMR36506-Q1 3-V–65-V, 0.6-A Synchronous Buck Converter Optimized...
  • Page 2: Table Of Contents

    , 0.6 A Load, 2.2 MHz ........LMR36506MSCEVM 5 V Thermal Capture, 24 V , 0.6 A Load, 2.2 MHz LMR36506MSCEVM CISPR25 Conducted EMI Results 13.5 V , 5 V = 0.6 A (Blue-Average and ....................... Yellow-Peak) LMR36506MSCEVM CISPR25 Conducted EMI Results 13.5 V , 5 V = 0.6 A (Blue-Average and...
  • Page 3: Setup

    In a RT trim part, this test point is connected to the RT pin of the IC when the R4 (RMODE) is installed. Input Supply Load Figure 2. EVM Board Connections SNVU670A – February 2020 – Revised June 2020 LMR36506MSCEVM User’s Guide Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 4 PGOOD SELECTION MODE SELECTION ENABLE OFF JUMPER JUMPER JUMPER Figure 3. Jumper Locations LMR36506MSCEVM User’s Guide SNVU670A – February 2020 – Revised June 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 5: Operation

    = 5 V. 5. Monitor the output voltage. The maximum load current must be 0.6 A with the LMR36506 device. SNVU670A – February 2020 – Revised June 2020 LMR36506MSCEVM User’s Guide Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 6: Schematic

    RFBT 100k 10pF PGOOD TP10 SYNC PGOOD RFBB RPGOOD RMODE 24.9k 100k TP11 VOUT JPGOOD JMODE/RT Figure 4. LMR36506MSCEVM Schematic LMR36506MSCEVM User’s Guide SNVU670A – February 2020 – Revised June 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 7: Board Layout

    Board Layout www.ti.com Board Layout Figure 5. Top View of EVM Figure 6. EVM Top Copper Layer SNVU670A – February 2020 – Revised June 2020 LMR36506MSCEVM User’s Guide Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 8: Evm Mid Layer One

    Board Layout www.ti.com Figure 7. EVM Mid Layer One Figure 8. EVM Mid Layer Two LMR36506MSCEVM User’s Guide SNVU670A – February 2020 – Revised June 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 9: Evm Bottom Copper Layer

    Board Layout www.ti.com Figure 9. EVM Bottom Copper Layer SNVU670A – February 2020 – Revised June 2020 LMR36506MSCEVM User’s Guide Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 10: Bill Of Materials

    Test Point, Miniature, White, TH Keystone 5002 TP11 LMR36506MSCQR LMR36503/06-Q1 Wide Input 60-V Synchronous, DC- Texas Instruments LMR36506MSCQRPETQ1 PETQ1 DC Buck Converter, RPE0009A (VQFN-9) LMR36506MSCEVM User’s Guide SNVU670A – February 2020 – Revised June 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
  • Page 11: Lmr36506Mscevm User's Guide

    Test Results www.ti.com Test Results Section 6.1 details the test results from the LMR36506MSCEVM variant. LMR36506MSCEVM Test Results The LMR36506MSCEVM variant is used for all figures from Figure 10 Figure 17 variant. 6.1.1 Efficiency and Load Regulation VIN = 12V VIN = 24V 5.15...
  • Page 12: In Out Out

    12 V , 0.6 A Load, 2.2 MHz 24 V , 0.6 A Load, 2.2 MHz 6.1.4 Conducted EMI Figure 16. LMR36506MSCEVM CISPR25 Conducted EMI Figure 17. LMR36506MSCEVM CISPR25 Conducted EMI Results Results 13.5 V , 5 V = 0.6 A 13.5 V...
  • Page 13 • Updated EVM mid-layer one image..................... • Updated EVM mid-layer two image..................... • Updated EVM bottom copper layer image. SNVU670A – February 2020 – Revised June 2020 Revision History Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
