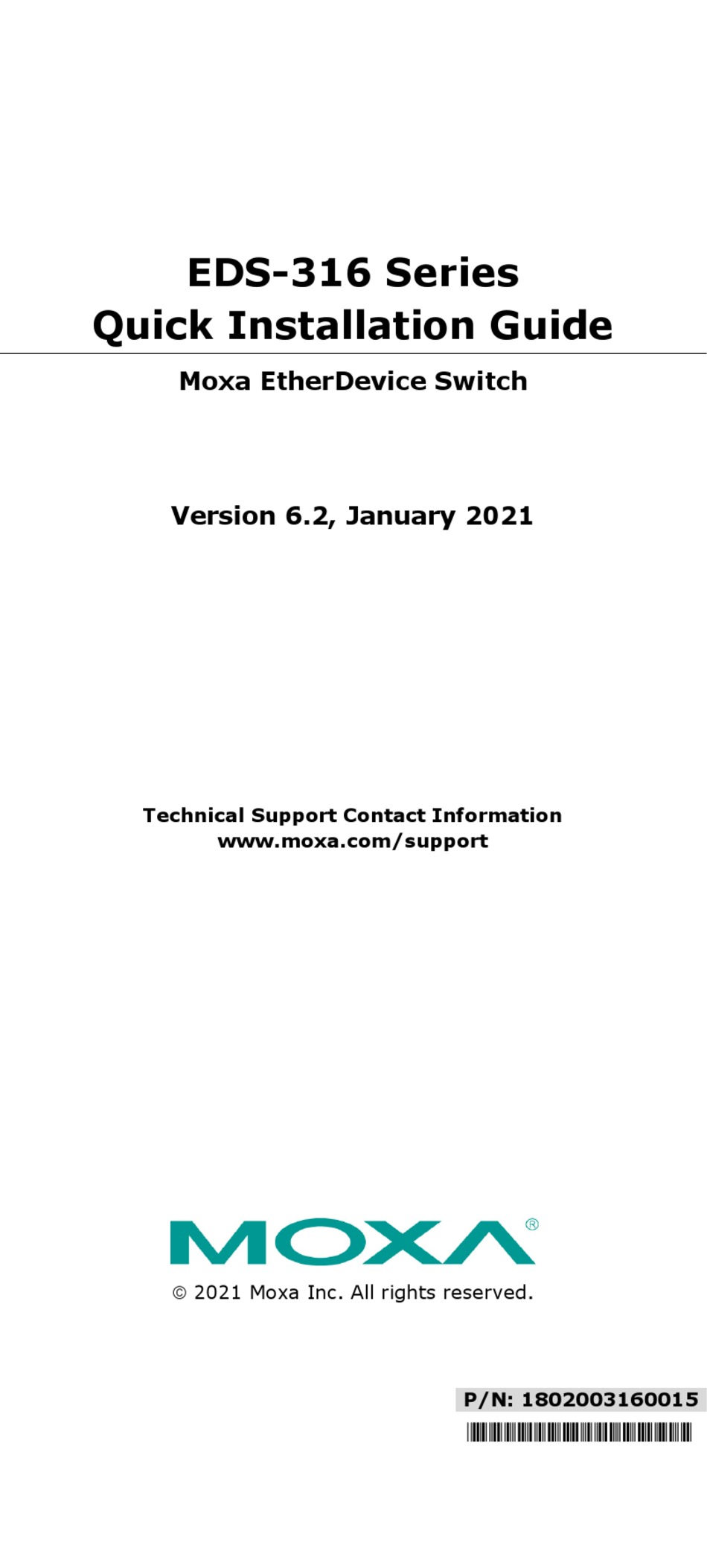

- Page 1 EDS-316 Series Quick Installation Guide Moxa EtherDevice Switch Version 6.2, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802003160015 *1802003160015*...
-
Page 2: Package Checklist
EDS-316 has a wide operating temperature range of -40 to 75°C, and is designed to withstand a high degree of vibration and shock. The rugged hardware design makes EDS-316 series perfect for ensuring that your Ethernet equipment can withstand critical industrial applications, such as in hazardous locations (Class 1 Division 2/ Zone 2), and complies with FCC, TÜV, UL, and CE Standards. - Page 3 Panel Layout of EDS-316 (standard-type) 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. Heat dissipation orifices 4. DIP switches (EDS-316 has 18 DIP switches in total; 1 DIP switch is reserved) 5. Power input PWR1 LED 6.
- Page 4 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. Heat dissipation orifices 4. DIP switches (EDS-316 series has 18 DIP switches in total; 1 DIP switch is reserved) 5. Power input PWR1 LED 6. Power input PWR2 LED 7.
- Page 5 Panel Layout of EDS-316 (ST-type) 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. Heat dissipation orifices 4. DIP switches (EDS-316 has 18 DIP switches in total; 1 DIP switch is reserved) 5. Power input PWR1 LED 6.
-
Page 6: Mounting Dimensions
Mounting Dimensions Unit = mm (inch) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of EDS-316 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 7: Wall Mounting (Optional)
Wall Mounting (optional) For some applications, you will find it convenient to mount EDS-316 on the wall, as illustrated in the figure. STEP 1: Remove the aluminum DIN-Rail attachment plate from EDS-316’s rear panel, and then attach the wall mount plates, as shown in the figure. -
Page 8: Atex Information
WARNING EXPLOSION HAZARD – Servicing, replacing, and installing the product can only take place is an area that is non-hazardous. ATEX Information 1. Certificate number DEMKO 09 ATEX 0812123X 2. Ambient range: 0°C to 60°C (For suffix without–T), -40°C to 75°C (For suffix with–T) 3. - Page 9 WARNING Substitution of components may impair suitability for Class I, Division 2, and Zone 2. These devices must be supplied by an SELV source as defined in Low Voltage Directive 73/23/EEC and 93/68/EEC. WARNING This unit is a built-in type. When the unit is installed in another piece of equipment, the equipment enclosing the unit must comply with fire enclosure regulation IEC 60950/EN60950 (or similar regulation).
-
Page 10: Wiring The Alarm Contact
ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. Wiring the Alarm Contact The Alarm Contact consists of the two middle contacts of the terminal block on EDS’s top panel. You may refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 11: Communication Connections
ATTENTION • Conductors suitable for use in an ambient temperature of 93°C must be used for the power supply terminal. • One individual conductor in a clamping point with 28-12 AWG wire size, and a torque value of 4.5 lb-in should be used. ATTENTION Transient provisions shall be provided to limit the peak rated voltage to a maximum of 140% of the peak rated voltage. -
Page 12: Redundant Power Inputs
RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100BaseFX Ethernet Port Connection The concept behind the SC/ST port and cable is very straightforward. Suppose you are connecting devices I and II. Contrary to electrical signals, optical signals do not require a circuit in order to transmit data. Consequently, one of the optical lines is used to transmit data from device I to device II, and the other optical line is used transmit data from device II to device I, for full-duplex transmission. -
Page 13: Alarm Contact
DC power inputs, or (2) The PORT ALARM DIP Switch for one of the ports is set to ON, but the port is not connected properly. If neither of these two conditions occurs, the Fault circuit will be closed. DIP Switch Settings EDS-316 Series DIP Switches DIP Switch Setting Description Enables the corresponding PORT Alarm. -
Page 14: Auto Mdi/Mdi-X Connection
Color State Description Power is being supplied to power input PWR1 PWR1 AMBER Power is not being supplied to power input PWR1 Power is being supplied to power input PWR2 PWR2 AMBER Power is not being supplied to power input PWR2 When the corresponding PORT alarm is enabled, and the port’s link is inactive. -
Page 15: Dual Speed Functionality And Switching
The 100 Mbps fiber ports are switched ports, and perform as a domain, providing a high bandwidth backbone connection that supports long fiber cable distances (up to 5 km for multi-mode, and 40 km, and 80 km for single-mode) for installation versatility. Dual Speed Functionality and Switching Moxa EDS-316’s 10/100 Mbps switched RJ45 port auto negotiates with the connected device for the fastest data transmission rate supported by... -
Page 16: Specifications
If an EDS-316 RJ45 Ethernet port is connected to a non-negotiating device, it will default to 10 Mbps speed and half-duplex mode, as required by the IEEE 802.3u standard. Specifications Technology Standards IEEE802.3, 802.3u, 802.3x Forward and Filtering 148810 pps (100M), 14881 pps (10M) Rate Packet Buffer Memory 1.25 Mbit Processing Type... - Page 17 Reverse Polarity Present Protection Inrush Current Max. 6.3A @ 24VDC (0.1 - 1ms) Mechanical Casing IP30 protection, metal case Dimensions 80.5 x 135 x 105 mm (W x H x D) Weight 0.84 kg Installation DIN-Rail, Wall Mounting Environmental Operating 0 to 60°C (32 to 140°F) Temperature -40 to 75°C (-40 to 167°F) for -T models...
-
Page 18: Ordering Information
Ordering Information Ordering Code Definition EDS-316-AA-BB[-CC][-T] Fiber Port FO Connector Transmission Operating distance Temperature 1 Multi-mode 80: 80 km -T: Wide 1 Single Mode SC Connector operating Temp. 2 Multi-mode of -40 to 75°C 2 Single Mode ST Connector (Standard 1 Multi-mode, Models: 0 to 1 Single Mode...
