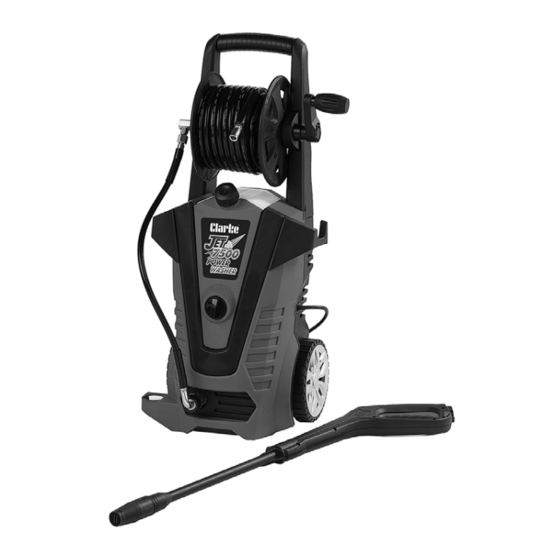

- Page 1 WARNING: Read the instructions before using the machine. POWER WASHER MODEL NO: JET 7500 PART NO: 7333510 OPERATION & MAINTENANCE INSTRUCTIONS Original instructions DL0621 - ISS 4...
- Page 2 LIST OF CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please see your Clarke dealer where you purchased the machine 1 x Pressure Washer (with integral 1 x Inlet Filter (installed)
-
Page 3: General Safety Rules
4. NEVER allow children or untrained personnel to use this machine. 5. NEVER operate the machine with any of the covers removed. 6. NEVER attempt any repairs to this machine. Always refer to your Clarke dealer. 7. NEVER supply any liquid other than water to the water inlet. -
Page 4: Environmental Recycling Policy
ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE. In effect, this means that this product must not be disposed of with general household waste. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. This product may be fitted with a non-rewireable plug. - Page 6 OVERVIEW Spray Gun Assembly Reel Handle Lance Detergent Container Hose ON/OFF Switch Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 7 ASSEMBLY 1. Push the handle into the hose reel as shown. • It will ‘click’ into place. 2. Slide the brackets into their positions. • They will ‘click’ into place. 3. Unwind the high pressure hose from the hose reel and insert the hose into the gun fully 4.
-
Page 8: Connecting The Mains Water Supply
• A standard garden hose or a reinforced hose with an inner diameter of at least 10 mm available from your CLARKE dealer will be suitable. 3. Connect the supply hose to the water supply. • The water supply must provide a minimum of 6.6 litres per minute at a maximum of 40°C. -
Page 9: To Change The Spray Pattern (Narrow Jet / Wide Spray)
4. Release the trigger lock. • The pressure washer is now ready for use. 5. Make sure that you have a firm footing and are also holding the gun and spray lance firmly. • Expect the spray gun to 'kick' when starting. -
Page 10: Applying Chemicals And Cleaning Agents
• Only use detergents recommended for use with pressure washers such as CLARKE Traffic Film Remover for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer. DESCRIPTION SIZE PART NUMBER Car Wash &... -
Page 11: Shutting Down
SHUTTING DOWN When you have finished using the pressure washer, follow the procedure shown below to switch off and disconnect the unit. 1. Set the switch to the OFF position. 2. Turn off the water supply at the tap. • To release the pressure in the machine, pull and hold the trigger until no more water comes out of the nozzle. -
Page 12: Maintenance
MAINTENANCE WARNING: REMOVE THE PLUG FROM THE SOCKET-OUTLET BEFORE CLEANING OR MAINTENANCE AND WHEN REPLACING PARTS CLEANING THE NOZZLE If the nozzle becomes partially clogged with foreign material such as dirt or limescale, excessive pressure may develop and the pump pressure will pulsate. -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION No water Water filter blocked. See cleaning the water filter. delivery. Clogged lance nozzle. Clean the nozzle. Low or irregular Insufficient water supply. Check connections. pressure. Pump taking in air. Check connections. Detergent inlet sucking in Check connections and that air. -
Page 14: Product Specifications
PRODUCT SPECIFICATIONS Model Number JET 7500 Part Number 7333510 Voltage 230V/50Hz Motor Input Power 1600 W Duty Cycle S1 Continuous Working pressure 90 bar Maximum pump pressure 140 bar Maximum output flow rate 6.67 l/min Maximum input temperature Detergent tank capacity 1.4 l... - Page 15 DECLARATION OF CONFORMITY - UKCA Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 16 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 17: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 18 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 19: Associated Products
ASSOCIATED PRODUCTS Traffic Film Remover, 5 Litres Concentrate Part Number: 3050821 Traffic Film Remover, 25 Litres Concentrate Part Number: 3050820 Traffic Film Remover, 5 Litres Ready to Use Part Number: 3050818 Traffic Film Remover, 25 Litres Ready to Use Part Number: 3050819 Car Wash &...
