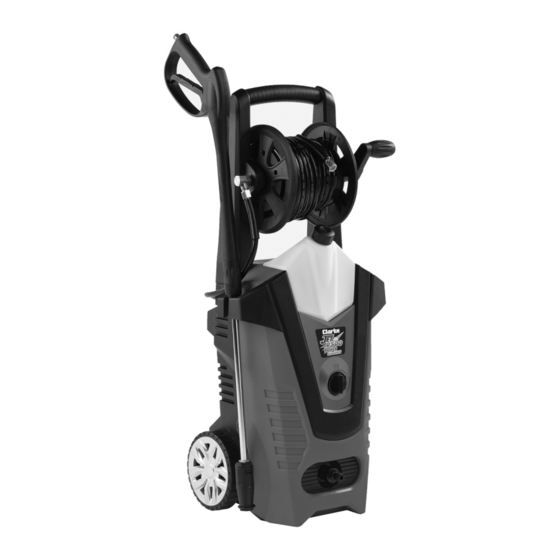

- Page 1 WARNING: Read the instructions before using the machine. POWER WASHER MODEL NO: JET 9500B PART NO: 7333521 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0521...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Power Washer. This pressure washer is designed for cleaning machines, vehicles, buildings, boats, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents). Only use accessories, replacement parts and cleaning agents recommended by Clarke international.
-
Page 3: General Safety Rules
Store in a cool dry location. 16. ONLY use chemical cleaning agents (detergents), that are approved for pressure washers. CLARKE Traffic Film Remover or CLARKE Wash and Wax (available from your dealer), is recommended. -
Page 4: Symbols On The Machine
SYMBOLS ON THE MACHINE Read the manual Wear safety glasses before use. when using this machine. Failing to follow Conforms to UK regulations these instructions could result in injury or damage to the machine. Conforms to European CE Regulations. The high pressure jet must not be directed at persons, animals, live electrical... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. This product may be fitted with a non-rewireable plug. - Page 6 OVERVIEW Spray Gun Assembly Detergent Container Lance ON/OFF Switch Hose Mains Water Inlet Reel Handle The following items should be supplied in the carton. If any parts are missing or damaged, please see your dealer where you purchased the machine. 1 x Pressure Washer (with integral 1 x Inlet Filter (installed) detergent tank)
- Page 7 ASSEMBLY 1. Push the handle into the hose reel as shown. • It will ‘click’ into place. 2. Slide the brackets into their positions. • They will ‘click’ into place. 3. Unwind the high pressure hose from the hose reel and connect the hose to the gun.
-
Page 8: Connecting The Mains Water Supply
• A standard garden hose or a reinforced hose with an inner diameter of at least 10 mm available from your CLARKE dealer will be suitable. 3. Connect the supply hose to the water supply. • The water supply must provide a minimum of 7 litres per minute at a maximum of 40°C. -
Page 9: Operation
OPERATION 1. Turn the water supply on, making sure that the tap is fully open. WARNING: FAILURE TO TURN ON THE WATER FULLY COULD CAUSE DAMAGE TO THE POWER WASHER INTERNAL COMPONENTS. WARNING: DO NOT USE THE POWER WASHER IF THE SUPPLY CABLE OR IMPORTANT PARTS OF THE MACHINE ARE DAMAGED, E.G. -
Page 10: To Change The Spray Pattern (Narrow Jet / Wide Spray)
ADJUSTMENTS TO CHANGE THE SPRAY PATTERN (NARROW JET / WIDE SPRAY) 1. Hold the shaft of the lance in one hand. 2. Twist the nozzle with the other hand. 3. To vary the spray between narrow and wide, turn the nozzle counter- clockwise through a half-a-turn (180°). - Page 11 • Only use detergents recommended for use with pressure washers such as CLARKE Traffic Film Remover for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer. DESCRIPTION SIZE PART NUMBER Car Wash &...
-
Page 12: Shutting Down
SHUTTING DOWN When you have finished using the pressure washer, follow the procedure shown below to switch off and disconnect the unit. 1. Set the switch to the OFF position. 2. Turn off the water supply at the tap. 3. Release the pressure in the pump and hose by squeezing the trigger for a few seconds until no more water comes out of the nozzle. -
Page 13: Maintenance
MAINTENANCE WARNING: THE MACHINE SHALL BE DISCONNECTED FROM THE POWER SUPPLY BY REMOVING THE PLUG DURING CLEANING OR MAINTENANCE AND WHEN REPLACING PARTS. CLEANING THE NOZZLE If the nozzle becomes partially clogged with foreign material such as dirt or limescale, excessive pressure may develop and the pump pressure will pulsate. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION No water Water filter blocked. See cleaning the water filter. delivery. Clogged lance nozzle. Clean the nozzle. Low or irregular Insufficient water supply. Check connections. pressure. Pump taking in air. Check connections. Detergent inlet sucking in Check connections and that air. -
Page 15: Product Specifications
PRODUCT SPECIFICATIONS Model Number JET 9500B Part Number 7333521 Voltage 230V/50Hz Motor Input Power 2400 W Duty Cycle S1 Continuous Working pressure 130 bar Maximum pump pressure 200 bar Maximum output flow rate 7 l/min Maximum input temperature Detergent tank capacity 1.4 l... -
Page 16: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 17 COMPONENT PARTS Description Description Plunger spring seat O-ring Plunger O-ring Plunger spring Venturi tube O-ring Cone spring Pump body Ss ball O-ring O-ring Water input tube Siphon hose connector Screw (inner hex) O-ring Check valve spring seat assy Overflow valve sleeve Check valve spring assy O-ring Check valve spring spool assy...
-
Page 18: Declaration Of Conformity-Eu
DECLARATION OF CONFORMITY-EU Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 19 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
