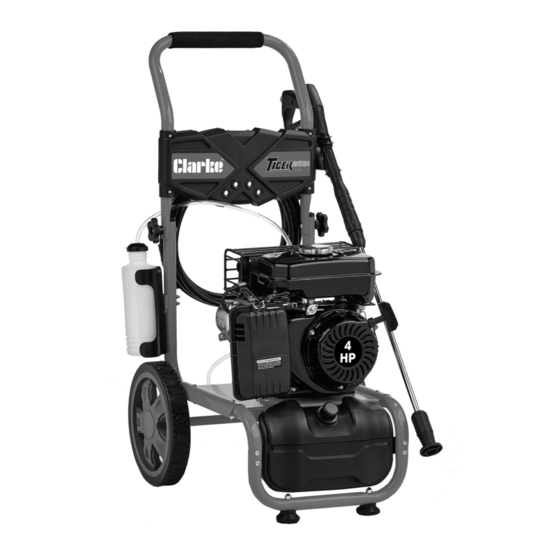

- Page 1 WARNING: Do not use the machine without reading this manual PETROL DRIVEN POWER WASHER MODEL NO: TIGER 2600B PART NO: 7320207 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0521...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Petrol driven power washer. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
3. DO NOT let children or untrained personnel use this machine. 4. DO NOT operate the machine with any of the covers removed. 5. DO NOT try to repair this machine. Always refer to your CLARKE service department for all repairs. -
Page 4: Safety Symbols
SAFETY SYMBOLS WARNING: Risk of injection or severe injury. Do not direct discharge stream at persons or animals. Keep clear of nozzle. This machine is to be used only by qualified operators. WARNING: Risk of spray injury. Spray can propel objects. - Page 5 OVERVIEW NO DESCRIPTION NO DESCRIPTION Fuel Tank Cap 11 Engine On/Off Switch Fuel Tank 12 Oil Filler Cap Spark Plug 13 Water Outlet Choke 14 Detergent Tank Gun Assembly 15 Water Inlet Lance Assembly 16 Bypass Drain Hose Air Filter Cover 17 Hose Holder Recoil Pull Start 18 Lance Holder...
-
Page 6: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your pressure washer and make sure that the following items are present. Contact your CLARKE dealer immediately if any parts are missing or damaged. • 1 x Petrol Power Washer • 1 x Gun Assembly • 2 x Wheel c/w Axle •... -
Page 7: Connecting The Handle
CONNECTING THE HANDLE 1. Slide the upper handle into position as shown. 2. Secure using a bolt and handwheel. • The handwheel should be on the outside. FITTING THE WATER BOTTLE NOTE: The water bottle is only used when using the drawing water from an un- pressurised source such as a water butt. -
Page 8: Connecting The High Pressure Hose
FITTING THE LANCE/HOSE HOLDER Fit the holders into the positions shown and secure using the washers and nuts provided. CONNECTING THE HIGH PRESSURE HOSE CONNECT THE HOSE TO THE GUN 1. Screw the high pressure hose onto the gun assembly. •... -
Page 9: Connecting The Water Supply
CONNECTING THE WATER SUPPLY Always follow the regulations of your local water supplier. The pressure washer must never be connected to the drinking water supply without using a system separator (also known as a backflow preventer) available from most hardware stores. NOTE: Water that has flowed through a system separator is considered non- drinkable. -
Page 10: Before Use
BEFORE USE WARNING: STAND THE PRESSURE WASHER ON LEVEL GROUND WITH THE ENGINE SWITCHED OFF. WARNING: TAKE CARE NOT TO TOUCH ANY HOT PARTS OF THE PRESSURE WASHER WHEN CHECKING THE OIL LEVEL. WARNING: REFUEL IN A WELL-VENTILATED AREA, AWAY FROM ANY SOURCES OF IGNITION. -
Page 11: Adding Fuel
ADDING FUEL 1. Remove the fuel tank cap. • Just inside the fuel tank is a fuel strainer, which should be checked periodically and any contaminants which have accumulated must be removed. 2. Pour unleaded petrol through the fuel strainer and into the fuel tank. •... - Page 12 3. Set the fuel supply valve to the ON position. 4. Slide the throttle lever to the left approximately 3/4 of the way. 5. Set the engine switch to the on (I) position. 6. Pull the recoil starting handle lightly until you start to feel resistance and then pull up sharply to start the engine.
-
Page 13: Interrupting Operation
WARNING: ONCE THE PRESSURE WASHER ENGINE HAS STARTED, RELEASE THE STARTING HANDLE SLOWLY TO AVOID INJURY/DAMAGE AS IT RECOILS. 7. 7. Once the engine has warmed up, slide the choke lever to the OPEN position. • The pressure washer is now ready for use. -
Page 14: Adjusting The Spray Nozzle
CLARKE Traffic Film Remover which is a powerful low foaming agent for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Shutting Down
3. Hold the rear of the nozzle on the high pressure lance and slide the front of the nozzle forwards to low pressure. 4. Spray the detergent onto the vehicle, patio etc. • Allow the detergent a little time to work itself into the grime. CAUTION: CAUTION: IF YOU GET CLEANING FLUID IN YOUR EYES, RINSE THEM IMMEDIATELY WITH PLENTY OF FRESH CLEAN WATER. -
Page 16: Water Butt Connection
7. Rotate the trigger lock to the locked position. WATER BUTT CONNECTION This machine has the ability to draw its own water, meaning you can use water not under pressure such as rainwater collected in a water butt. To do this you must carry out the following procedure. 1. - Page 17 3. Remove the water inlet filter. 4. Connect other end of the braided pipe to the water inlet. 5. Fill the priming bottle with water. 6. Connect the hose from the bottle to the self-suction valve shown. 7. Place the filter into the water source and start the pressure washer, See “Starting your pressure washer”...
-
Page 18: Storage Procedure
9. Turn the self-suction valve to the on position. 10. Release the trigger lock and pull the trigger. 11. When the water spray is at high pressure, close the exhaust valve and set the suction valve to the OFF position. NOTE: If the water butt runs out of water, the pressure washer will need to be primed before use... -
Page 19: Maintenance
MAINTENANCE CLEANING THE NOZZLE 1. Switch off the pressure washer and the water supply. 2. Pull the trigger to release any water pressure. 3. Disconnect the lance from the gun assembly. 4. Remove all blockages with the nozzle cleaning tool provided and back flush with clean water. -
Page 20: Cleaning The Air Filter
5. Rinse thoroughly and leave it to dry. Once it is completely dry, immerse the filter in clean engine oil and squeeze the filter to remove excess oil. • If the air filter is damaged contact CLARKE spare parts department for a replacement. -
Page 21: Long Term Storage
4. Make sure that the power washer has been thoroughly cleaned before storing it in a clean dry place. ACCESSORIES The range of accessories listed below may be purchased from your CLARKE dealer. ITEM PART NUMBER... -
Page 22: Troubleshooting
TROUBLESHOOTING If the following does not solve your problem contact the CLARKE service dept. PROBLEM CAUSE SOLUTION Engine will not No fuel. Add fuel. start (see Low oil. Add oil. engine manual for further Pressure builds up Squeeze the gun trigger to relieve... - Page 23 PROBLEM CAUSE SOLUTION Lack of Choke lever is in the Set the choke lever to the OFF pressure (initial ON position. position. use) continued Throttle control lever is Move the throttle control lever to left. not set high enough. High pressure hose is Make sure the high pressure hose is too long.
-
Page 24: Specifications
SPECIFICATIONS ENGINE Engine type Petrol (unleaded). OHV Single Cylin- der 4 stroke forced air cooling Capacity/displacement: 127 cc Oil Capacity 0.6 L Lubrication Grade SAE10W-30 Fuel Tank Capacity: (Litres) 2.1L WATER CONNECTION Max. Feed Temperature 60 °C Max. Feed Pressure 3-6 Bar PERFORMANCE DATA Maximum Pump Pressure... -
Page 25: Exploded Diagram
EXPLODED DIAGRAM WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE PARTS FROM CLARKE INTERNATIONAL. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 26: Component Parts List
COMPONENT PARTS LIST NO DESCRIPTION NO DESCRIPTION Cross pan head screw M6x40 Flat Washer Ø8 Detergent Tank Spring Washer Ø8 Inner Hexagon Bolt M8x42 Inner Hexagon Bolt M8x25 Rubber Foot Washer Lance Rubber Foot Frame Overflow Valve Cover Locknut M8 Panel Flat Washer Ø6 Locknut M8... -
Page 27: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
