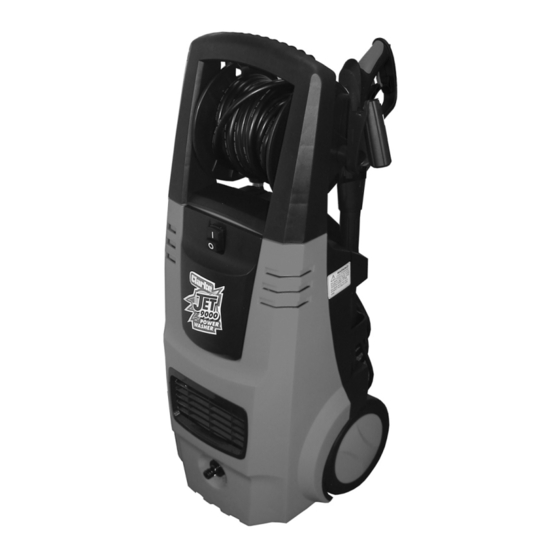

POWER WASHER
MODEL NO: JET 9000B
PART NO: 7333502
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0517 ISSUE 2

Advertisement

Table of Contents
loading

Summary of Contents for Clarke JET 9000B

  • Page 1 WARNING: Do not use the machine without reading this manual POWER WASHER MODEL NO: JET 9000B PART NO: 7333502 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0517 ISSUE 2...
  • Page 2 INTRODUCTION Thank you for purchasing this CLARKE Power Washer. The machine has been designed to use hot or cold water to clean any surfaces which can stand the force of the high pressure water jet and the action of the detergents used.
  • Page 3: General Safety Rules

    Store in a cool dry location. 13. Only use chemical cleaning agents (detergents), that are approved for pressure washers. CLARKE Traffic Film Remover or CLARKE Wash and Wax (available from your dealer), are recommended.
  • Page 4: Safety Symbols

    SAFETY SYMBOLS The following symbols are displayed on the machine. Wear Hand Protective Gloves WARNING: Do not discharge the water spray at persons or animals. Keep clear of nozzle. WARNING: Never direct spray toward any electrical device or electrical outlet. Falls within the WEE (Waste Electrical/ Electronic) Directive.
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz.
  • Page 6 OVERVIEW On/OFF Switch Detergent Container Spray Gun Assembly Power Cable Reel Handle Mains Water Inlet Lance Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 7: Before Use

    LIST OF CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please see your Clarke dealer where you purchased the machine. 1 x Power Washer 1 x Gun Assembly 1 x Lance c/w fitted Pencil-Jet / Fan - High / Low Nozzle...
  • Page 8: Assembling The Lance

    • It is recommended to use a reinforced hose with an inner diameter of at least 10 mm available from your CLARKE dealer. • Ensure the water connection is secure. NOTE: The water source must provide a minimum of 6.6 litres per minute...
  • Page 9: Filling With Detergent

    CLARKE Traffic Film Remover which is a powerful ‘low foaming’ agent for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer. DESCRIPTION SIZE PART NUMBER Car Wash &...
  • Page 10: Operation

    OPERATION GETTING STARTED 1. Ensure that the water supply is correctly connected and turned on. WARNING: FAILURE TO TURN ON THE WATER FULLY COULD CAUSE DAMAGE TO THE POWER WASHER INTERNAL COMPONENTS. WARNING: DO NOT USE THE POWER WASHER IF THE SUPPLY CABLE OR IMPORTANT PARTS OF THE MACHINE ARE DAMAGED, E.G.
  • Page 11: Adjusting The Spray

    ADJUSTING THE SPRAY The nozzle is adjustable to allow you to adjust the spray from a narrow jet of water to a wide spray. To adjust the nozzle, proceed as follows: 1. Hold the shaft of the lance in one hand.
  • Page 12: Shutting Down

    SHUTTING DOWN When you have finished using the power washer, follow the procedure below to switch off and disconnect the unit. 1. Press the stop switch (‘O’). 2. Turn the mains water supply off at the tap. • NEVER turn the water off with the power washer running. 3.
  • Page 13: Maintenance

    MAINTENANCE WARNING: THE MACHINE SHALL BE DISCONNECTED FROM THE POWER SUPPLY BY REMOVING THE PLUG DURING CLEANING OR MAINTENANCE AND WHEN REPLACING PARTS. CLEANING THE NOZZLE If the nozzle becomes partially clogged with foreign material such as dirt or limescale, excessive pressure may develop and the pump pressure will pulsate.
  • Page 14: Storing The Power Washer

    Correct use and maintenance is necessary to guarantee the power washer's reliability and best performance. Please only use the correct spare parts as supplied by your Clarke dealer. ANNUALLY LIMESCALE Periodically the pump should be checked for limescale buildup, dependant upon the hardness of the local water supply.
  • Page 15: Troubleshooting

    PROBLEM POSSIBLE CAUSE SOLUTION No water delivery. Water filter blocked. See cleaning the water filter on page 13. Pump valves jammed. Contact Clarke Service Department. Clogged lance nozzle. Clean the nozzle. Low or irregular Insufficient water supply. Check connections. pressure Pump taking in air.
  • Page 16 No water due to clogged Clean water inlet filter. inlet filter. Oil leak. Worn seals. Contact your Clarke dealer. Motor does not Plug is not connected Check plug and lead and start when properly. have them replaced by a switched on.
  • Page 17: Product Specifications

    PRODUCT SPECIFICATIONS Model Number JET 9000B Part Number 7333502 Voltage 230V/50Hz Motor Input Power 2600 W Duty Cycle Continuous Working pressure 123 bar Maximum pump output pressure 200 bar Maximum output flow rate 7.75 l/min (465 l/hr) Maximum output temperature...
  • Page 18 PARTS LIST - FRAME & BODY POS DESCRIPTION POS DESCRIPTION Self-tapping Screw Pump Assembly Handle Pin Front Cover Hose Reel Handle Self-tapping Screw Cable Sleeve Cable Hook Switch Holder Cap Screw Switch Panel Spring Gasket Power Switch Flat Gasket Air Outlet Base S/tapping Screw Container Cap...
  • Page 19: Parts List - Internal Components

    PARTS LIST - INTERNAL COMPONENTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 20 PARTS LIST - INTERNAL COMPONENTS POS DESCRIPTION DESCRIPTION Motor Winding Cover Relief Valve Motor Fan 27-1 Sealing Ring Induction Motor 27-2 Relief Valve Piston Terminal Box 27-3 Sealing Ring Capacitor/wire 27-4 Relief Valve Support Capacitor/wire 27-5 Relief Valve Spring Insulation Sleeve 27-6 Sealing Ring Clip 27-7 Valve Seat Cover...
  • Page 21 Inlet Hose Main Valve Sealing Ring 42-1 Main Valve Cover Hex Screw Insert 42-2 Main Valve Seat Pump Hose Spring Washer Nozzle Hex Screw Outlet Connector Hex Screw Hex Screw Insert Sealing Ring Spring One-way Valve Steel Ball 40-1 One-way Valve Cover Sealing Ring 40-2 One-way Valve Core Sealing Ring...
  • Page 22: Hose Reel Assembly

    HOSE REEL ASSEMBLY No DESCRIPTION No DESCRIPTION Screw Seal Ring Crank Handle Seal Ring Bolt Hose Spool (L/H) Crank Handle Hub Support Bracket Support Bracket HP Hose Connector Hose Spool (right) Retaining Clip High Pressure Hose Cover Plug When requesting spare parts, please ask for item TMC9000HOSE/01 onwards. No DESCRIPTION CODE Lance Assy...
  • Page 23: Declaration Of Conformity
