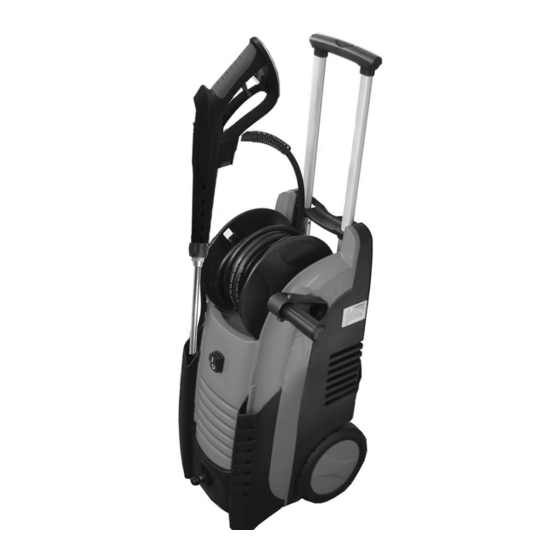

- Page 1 WARNING: Do not use the machine without reading this manual POWER WASHER MODEL NO: JET 8000B PART NO: 7333500 OPERATION & MAINTENANCE INSTRUCTIONS GC0116...
- Page 2 This guarantee does not effect your statutory rights. LIST OF CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please see your Clarke dealer where you purchased the machine. 1 x Power Washer 1 x Gun Assembly...
-
Page 3: General Safety Rules
Store in a cool dry location. 13. Only use chemical cleaning agents (detergents), that are approved for pressure washers. CLARKE Traffic Film Remover or CLARKE Wash and Wax (available from your dealer), are recommended. -
Page 4: Safety Symbols
SAFETY SYMBOLS Wear Gloves WARNING: Do not discharge the water spray at persons or animals. Keep clear of nozzle. WARNING: Never direct spray toward any electrical device or electrical outlet Equipment covered by the European WEE (Waste Electrical/Electronic) Directive. Read Instructions before use. Wear Eye Protection Parts &... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 6 OVERVIEW Spray Gun Assembly Detergent Container Telescopic Handle Mains Water Inlet High pressure Hose On/OFF Switch Power Cable Lance Reel Handle Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 7: Before Use
BEFORE USE Unpack your power washer and check to ensure all the items listed on page 2 are present. UNFOLDING THE HOSE REEL HANDLE 1. Open the reel handle from its folded position before use. 2. Release the hose from the retaining clip on the hose reel, then pull the hose from the reel to unwind whatever length is... -
Page 8: Connecting The Gun To The Hose
• It is recommended to use a reinforced hose with an inner diameter of at least 10 mm available from your CLARKE dealer. • Ensure the water connection is secure. NOTE: The water source must provide a minimum of 6.6 litres per minute... - Page 9 3. Only use detergents recommended for use with pressure washers, such as CLARKE Traffic Film Remover which is a powerful ‘low foaming’ agent for car cleaning, patio cleaning etc., or CLARKE Wash & Wax, both available from your CLARKE dealer.
-
Page 10: Operation
OPERATION GETTING STARTED 1. Ensure that the water supply is correctly connected and turned on. WARNING: FAILURE TO TURN ON THE WATER FULLY COULD CAUSE DAMAGE TO THE POWER WASHER INTERNAL COMPONENTS. WARNING: DO NOT USE THE POWER WASHER IF THE SUPPLY CABLE OR IMPORTANT PARTS OF THE MACHINE ARE DAMAGED, E.G. -
Page 11: Adjusting The Spray
ADJUSTING THE SPRAY The nozzle is adjustable to allow you to adjust the spray from a narrow jet of water to a wide spray. To adjust the nozzle, proceed as follows: 1. Hold the shaft of the lance in one hand. -
Page 12: Shutting Down
SHUTTING DOWN When you have finished using the power washer, follow the procedure below to switch off and disconnect the unit: 1. Press the stop switch (‘O’). 2. Turn the mains water supply off at the tap. • NEVER turn the water off with the power washer running. 3. -
Page 13: Maintenance
MAINTENANCE WARNING: THE MACHINE SHALL BE DISCONNECTED FROM THE POWER SUPPLY BY REMOVING THE PLUG DURING CLEANING OR MAINTENANCE AND WHEN REPLACING PARTS. CLEANING THE NOZZLE If the nozzle becomes partially clogged with foreign material such as dirt or limescale, excessive pressure may develop and the pump pressure will pulsate. -
Page 14: Storing The Power Washer
Correct use and maintenance is necessary to guarantee the power washer's reliability and best performance. Please only use the correct spare parts as supplied by your Clarke dealer. ANNUALLY LIMESCALE Periodically the pump should be checked for limescale buildup, dependant upon the hardness of the local water supply. -
Page 15: Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION No water delivery. Water filter blocked. See cleaning the water filter on page 13. Pump valves jammed. Contact Clarke Service Department. Clogged lance nozzle. Clean the nozzle. Low or irregular Insufficient water supply. Check connections. pressure Pump taking in air. - Page 16 No water due to clogged Clean water inlet filter. inlet filter. Oil leak. Worn seals. Contact your Clarke dealer. Motor does not Plug is not connected Check plug and lead and start when properly. have them replaced by a switched on.
-
Page 17: Product Specifications
PRODUCT SPECIFICATIONS Model Number JET 8000B Part Number 7333500 Voltage 230V/50Hz Motor Input Power 2400 W Duty Cycle Continuous Working pressure 108 bar Maximum pump output pressure 180 bar (2610 psi) Maximum output flow rate 6.6 l/min (400 l/hr) Maximum output temperature... - Page 18 PARTS LIST - FRAME & BODY POS DESCRIPTION CODE POS DESCRIPTION CODE Lance Holder TMC8000FB01 Top Cable Holder TMC8000FB16 On/Off Switch TMC8000FB02 Detergent Tank Plug TMC8000FB17 Front Cover TMC8000FB03 Lower Cable Holder TMC8000FB18 Hose Reel Assembly TMC8000FB04 Bolt TMC8000FB19 Left Clamp TMC8000FB05 Spring Washer TMC8000FB20...
-
Page 19: Parts List - Internal Components
PARTS LIST - INTERNAL COMPONENTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 20 PARTS LIST - INTERNAL COMPONENTS POS DESCRIPTION CODE DESCRIPTION CODE Motor Cover TMC800001 22-2 Check Valve Spring TMC8000222 Capacitor (assy) TMC800002 22-3 General Valve Core TMC8000223 Connecting Cable TMC8000021 22-4 Seal Ring TMC8000224 Insulating Sheath TMC8000022 22-5 General Valve Cover TMC8000225 E-Rings TMC8000023 23...
- Page 21 Socket Cap Screw TMC800029 Sealing Ring TMC800041 Socket Cap Screw TMC800030 Spring Gasket TMC800042 Plain Washer TMC800031 Locking Washer TMC800043 Spring Washer TMC800032 Oil Box Gasket TMC800044 Socket Head Plug TMC800033 Screw TMC800045 Pump TMC800034 Inlet Connector TMC800046 Sealing Ring TMC800035 46-1 Inlet Conn.
- Page 22 HOSE REEL & LANCE ASSEMBLIES DESCRIPTION CODE DESCRIPTION CODE Screw TMC8000HOSE01 10 Seal Ring TMC8000HOSE10 Crank Handle TMC8000HOSE02 11 Seal Ring TMC8000HOSE11 Bolt TMC8000HOSE03 12 Hose Spool (left) TMC8000HOSE12 Crank Handle Hub TMC8000HOSE04 13 HP Hose Connector TMC8000HOSE13 Cover TMC8000HOSE05 14 Retaining Clip TMC8000HOSE14 Screws...
-
Page 23: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
